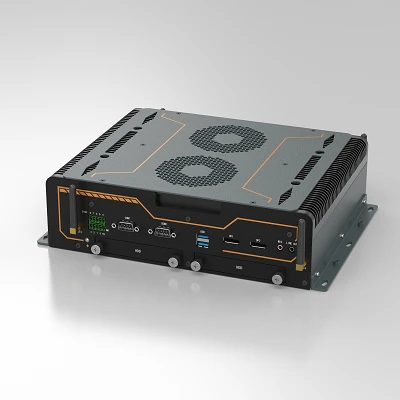

Key Features

• Intel® Comet lake 10th-Gen Celeron/Pentium/Core™ i9/i7/i5/i3 CPU
• Two temperature control fan ?aluminum chassis

• 3*2.5G-LAN+4*Gig-LAN with POE function
• 3*M.2 support Gig+WiFi6, 4G LTE, 5G NR module
• 1*MXM3.1, supports MXM GPU modules and AI acceleration cards which power consumption lower than 190W

• DC 9~36V wide power input


Datasheet

CPU

      Intel® Comet lake 10th-Gen Celeron/Pentium/Core™ i9/i7/i5/i3 CPU?Intel® Q470 PCH

System Memory

2*DDR4 SO-DIMM slot, support 2933MHz, up to 64GB

Expansion

1*Mini-PCIe Full size ,PCIeX1 and SATA3 signal select via BIOS?USB2.0+SIM, support mSATA or 4G LTE

1*M.2 Type 2230 E-key , PCIeX1, USB2.0 and CNVio, support Gig+ WiFi6&BT5.0

1* M.2 Type 3052 B-key, PCIeX1, USB2.0+SIM, support 5G NR model, Compatible 4G LTE

1*M.2 Type 2280 M-Key(PCIex4 signal), support NVME, or PCIe expansion module

1*MXM3.1, PCIeX16,up to 190W power supply?supports MXM GPU modules and AI acceleration cards which power consumption lower than 190W

1*JHCTECH-02 E/IO?2?PCIeX4, 2*USB3.0, 2*USB2.0, 160pin European standard interface

Graphics

Intel® UHD Graphics?support DirectX 12?openGL 4.5?2*HDMI 1.4 are 4K display interface, max res is 4096 x 2304@24Hz

1*MXM3.1GPU module?support whole series NVIDIA Gforce RTX adn AMD RX series, max 190W power consumption GPU, 2*DP 1.2 4K display interface

Audio

Realtek ALC controller, 1*Audio-out and 1*MIC?phone jack 3.5mm, support 5.1 channel

LAN

2*Intel I225V+1*I225 LM, 3*2.5G-LAN, support iAMT 13.0?Core I5/I7 CPU support intel vPro

4*Intel I210AT PCIe Gig. Ethernet with POE function, 10/100/1000Mbps self-adapt, each singal LAN is independent PCIe 3.0 X1 full bandwidth

Storage

2*2.5“ HDD SATA3(support RAID0,1)?max support dual15mm highly HDD, max 6Gbps transport speed

1*M.2 Type 2280 M-Key(PCIex4)?support NVMe; Opt 1*mSATA

DIO

8+16 bit TTL signal, programmable input and output

I/O Interface

3*2.5G-LAN?4*Gig-LAN(opt?,?Rj45?front?

4*USB3.2(Type A)?max 10Gbpstransport speed, 2*USB3.0(opt??front), 2*USB2.0(Type A)?rear?, 1*USB2.0 DB pin header?1*USB2.0 typeA (internal)?1*SIM slot

2*RS232/422/485?set via BIOS (DB9?rear)?2*RS232(2*5pin header?internal?

1*8-bit DIO (2*5Pin Phoenix ter?rear)?1*16-bit DIO(2*10pin Phoenix ter?opt?front?

CPU graphics?2*HDMI?1*VGA(opt?(front??GPU graphics?2*DP?rear?

1*Line out+1*Mic  3.5mm phone jack?rear?

I-port

1*I-port, support 16-bit DIO, 1*CAN Bus, 1*USB2.0, 1*VGA, 2*COM, M.2 and ect expansion module to  elicit

LED

1*HDD LED, 3*CPU Temp LED?Red is warning , Yellow is high, Green is  normal?

Control SW

1* Power button w/LED, 2-pin Remote SW?1*F-panel pin header? AT-ATX SW?Clear Cmos SW

Power supply

DC 9-36V?3-pin 7.62mm term?wide power input?With short circuit, over voltage and over current protection?maximum power output 350W

TDP?TBD

Watchdog timer

Watchdog timeout programmable via software 1 to 255 second

OS

Windows 10 IoT Enterprise (64-bit), Windows Server 2019, Ubuntu, SUSE, Redhat Enterprise, Wind River Linux?Yocto Project (64-bit)?Wind River VxWorks 7

Mechanical

SGCC chassis, Aluminum frame

Color

Black+Granite gray

Mounting

Desk monting

Dimension

(L*W*H)?284*222*82mm

Net weight

6.70kg

Operating temperature

-20??60? airflow

Storage temperature

-40°C~85°C

Storage humidity

10~90%@40°C, Non-condensing

Vibration

5grms/5~500Hz/  random/in  working(SSD);  1grms/5~500Hz/random/in working(HDD)

Shock

50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?

EMC/Certification

CE/FCC Class B
