| Key Features
|
Intel® Coffee Lake-RLGA1151 CPU, Dual-GPU, Multi-channel memory, DC power supply, with Modular I/O Expansion Design

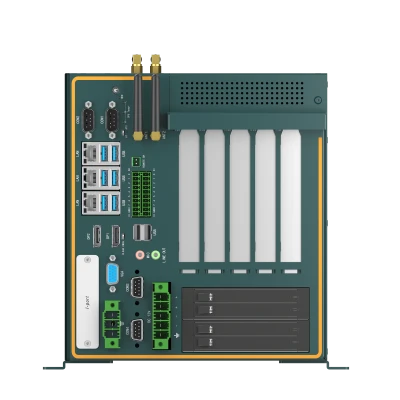

BRAV-7521 is a Workstation-grade Edge Computing system. It is powered by Intel® Coffee Lake-R series processor, Intel® Q370/C246 Chipset, 4*DDR4 2666/2400MHzdualchannel memory, up to 128GB?2*DP1.2+1*VGA. 3*GbE LAN, 6*USB3.1, 1*Mini PCIe supports 4G /WiFi/BT. 1*M.2 E-Key & SIM, 1*M.2 B-key, support 5G, 1*M.2 M-Key, support NVMe.4*2.5" SATA3 HDD/SSD tray, support RAID 0/1/5/10. support multiple PCIe expansion, flexible to meet application requirements. Workstation level system performance, rich expansion flexibility, industrial level product design which is very suitable for industrial automation, AI edge computing, small intelligent workstations, multimedia service systems, high-precision machine vision and so on.
Specification
System | CPU | Intel® Xeon® E or 9th/8th-Gen Core™ i7/i5/i3 LGA1151 processor?up to 8C/16T |
| Chipset | Intel® Q370(BRAV-7521/S001) , Intel® C246(BRAV-7521/S002) | |
| System Memory | 4*260-Pin SODIMM, dual channel DDR4 2666/2400MHz, up to 128GB | |
| Expansion | 1*Full size Mini PCIe with PCIe +USB signal and SIM slot, support 4G LTE/Wifi/BT wireless module 1*M.2 E-Key 2230 &SIM solt 1*M.2 B-Key 3052, support 5G 1*M.2 2280 M-Key(PCIeX4signal) 2*PCIe X8 (in X16 slot), support 2*350W GPU (the length of the GPU must be less than 300mm) 2*PCIe X4 (in X16 slot), support 2*75W AI Module (the length of the module must be less than 300mm | |
| Intel Graphics | Intel UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1, or PCIeX16 GPU DP1.2 max. res. 4096*2304@60Hz, VGA max. res. 1920*1200@60Hz, 3 independent displays | |
| Audio | Realtek ALC662VD controller, Audio out and MIC, support 5.1 channel | |
| LAN | 2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps 1*Intel I219LM PCIe Gig. Ethernet, support iAMT12.0 | |
| Storage | 4*2.5" SATA3 SSD tray, support RAID0/1/5/10 1*M.2 2280 M-key, Support NVMe storage | |
| DIO | 16-bit Iso. DIO, 8-bit Iso. DI(High:5-24V,Low:0-1.5V) and 8-bit Iso. DO(200mA) | |
| I-Port | Optional 16-bit GPIO, USB2.0 or Mini PCIe and M.2 I/O ports(such as serial ports) | |

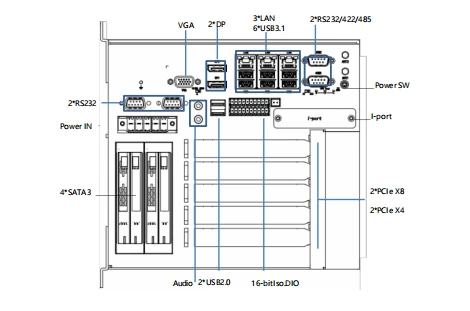

| I/O ports | 3*RJ45 Gig-LAN, 6*USB3.1; 2*USB2.0 16-bit Iso. DIO, 2*RS232/422/485, 2*RS232 Audio-out and 1*MIC 1*VGA+2*DP | |
| LED | 1*Power LED, 4*HDD LED | |
| Control SW | 1*Power button, 1*ATX Power SW, 1*Clear CMOS SW | |
| Power Supply | DC 12V input, 5-pin Term. Consumption: TDP 12V/47A?I7-8700 CPU 32GB DDR4 2*2080TI GPU? | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | Windows* 10 Enterprise & IOT Enterprise?64-bit?(CFL-R) Windows* Server 2016 (Intel® Xeon® E) Ubuntu*?SuSe*?Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R) Wind River* VxWorks* 7 (CFL-R) | |
Mechanical | Structure | Aluminum-magnesium alloy, SGCC frame |
| Color | Granite gray + Black | |
| Mounting | Desktop Mounting | |

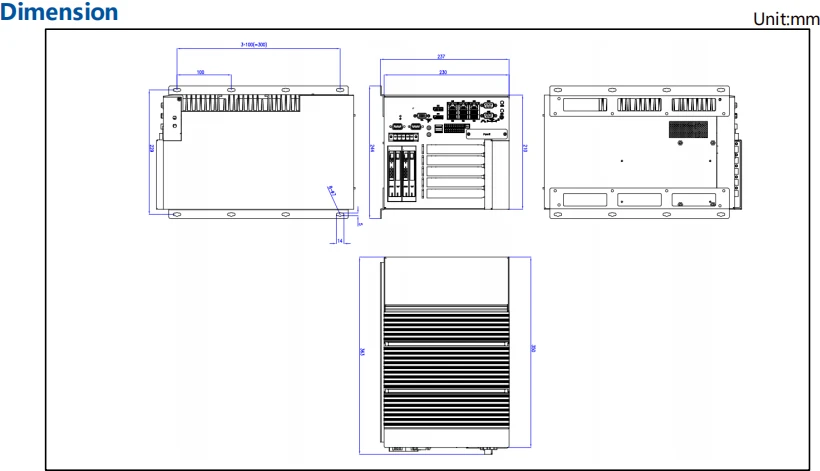

| Dimension | (W*H*D)?230*350*210mm | |
| Net weight | 8.3KG | |
Environmental | Operating temperature | -20°C~60°C airflow , |
| Storage Temperature | -40°C~85°C | |
| Storage Humidity | 10~90%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | |
| Certification/EMC | CE/FCC Class B |
