BRAV-7302

www.alvasta-tech.com / Enterprises / JHCTECH / Embedded Box PC / AI GPU Computing / BRAV-7302 /

BRAV-7302



Key Features

  • CPU and GPU fan cooling, independent air passage
  • Intel® Kabylake-S/Skylake-S Core I3/I5/I7 CPU
  • 2*DDR4 2400/2133MHz SODIMM, Up to 32GB
  • 1*MXM 3.1 socket, support NVIDIA/AMD GPU Intel
  • 1*DP+1*HDMI+1*VGA, GPU 3*DP+1*HDMI
  • 3/7*LAN, 6*USB3.0, 3*USB2.0, 4*COM,16DIO,Audio
  • 1*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
  • 1*mSATA, 1/2*2.5" SATA, suppprtRaid0,1
  • Support Intel® iVpro and TPM2.0
  • DC 6~48V Wide Power Input

Datasheet

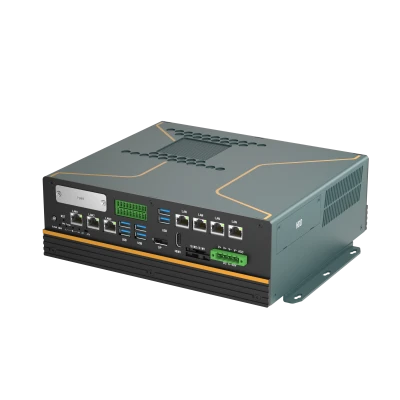

BRAV-7302 | CPU BOX Computer

Intel® Skylake-S/Kabylake-S Core I3/I5/I7 CPU, 7*LAN, 6*USB3.0, MXM3.1 GPU
6*4K display, iVpro technology, DC-IN 6~48V

BRAV-7302 is a high-performance GPU Box Computer, CPU and GPU fan cooling by independent air passage. It is powered by all kinds of Intel Skylake® -S/Kabylake-S CPU, DDR4 2133/2400MHz dual channel memory up to 32GB. DP1.2+HDMI1.4b dual 4K Intel HDG display, 3*DP+1*HDMI GPU display. 3/7*Intel LAN, 4/6*USB3.0, 2*Mini PCIe and 1*M.2 support 4G and Wifi/BT.The2*2.5"SATA HDD/SSD support Raid0/1.WithDC6-48V wide power input, high performance and multi IO, it is the application for Intelligent AI, Video Security and Machine Vision.


Specification














System

CPUGen.6th Intel®Skylake-S/gen.7th Intel® Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPU,
LGA 1151 socket , all degree of consumption: TDP 35W/54W/65W/91W
System Memory2*260-Pin SODIMM, dual channel DDR4 2133/2400MHz, up to 32GB
Expansion
1*Full size Mini PCIe with PCIe +USB signal and SIM slot,1*M.2 2242 B-key with PCIeX1+SATA3+USB signal, 1*Full size mSATA(SATA3+USB), support 4G LTE and Wifi/BT wireless module
Intel Graphics
Gen. 9th Intel® HD Graphics, HEVC/H265 HW HD en/decoder, DP1.2 max. res. 4096*2304@60Hz, HDMI1.4b max. res. 3840*2160@30Hz, VGA max. res. 2650*1600@60Hz, 3 independed display
GPUMXM3.1 NVIDIA GTX/AMD RX series GPU module,support 3*DP1.2/1.3 and 1*HDMI1.4b/2.0 4K/5K display
AudioRealtek ALC662VD controller, Audio out and MIC
LAN6*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps?1*Intel I219LM PCIe Gig. Ethernet
Storage1/2*2.5" HDD/SSD bay, dual SATA 6.0Gbps support RAID0/1; 1*mSATA; 1*M.2 2242 B-key
DIO16 bit TTL signal, programmable input and output
I-portOptional 1*LPT, 2*USB2.0 or Mini PCIe and M.2 I/O ports(such as serial ports)

I/O ports



3/7*RJ45 Gig-LAN(Front)
4/6*USB3.0 Type A(Front); 2*USB2.0 Type A(Rear) ,1*USB2.0 Type A(Inside)
16 bit DIO 2*10-pin terminal(Front) 2*RS232/422/485 DB9(Rear), 2*RS232DB9(Rear)
1*Audio-out and 1*MIC, 3.5mm phone jack(Rear)
1*HDMI +1*DP+1*VGA(Front); 3*DP+1*HDMI(Rear)
LED1*Power LED, 1*HDD LED, 3*CPU term. LED?Red is warning , Yellow is high, Green is normal)
Control SW1*Power button, 1*Reset button(Front);1*2pin ter. power-on signal(Rear), 1*AT/ATX Select dip(Front)
Power SupplyDC 6~48V Input, 5-pin ter. connector(Front), with 24V/9.17A power adapter Consumption: 24V/6A?5W CPU+78W GPU?
Watchdog TimerWatchdog timeout programmable via software 1 to 255 second
OS SupportWindows 7, Windows 10, Linux Fedora Ubuntu
Mechanical
StructureSGCC chassis, Aluminum frame
ColorSilver and Black
MountingDesktop Mounting
Dimension(W*H*D)?255*222*84.1mm
Net weight4.62KG
Environmental
Operating temperature-10°C?50°C – Fanless, 65W CPU+78W GPU
-10°C?40°C – Fanless, 91W CPU+120W GPU
Storage Temperature-40°C~85°C
Storage Humidity10~90%@40°C, Non-condensing
Vibration5grms/5~500Hz/ random/in working(SSD); 1grms/5~500Hz/random/in working(HDD)
Shock50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?

Certification/EMC

CE/FCC Class A
