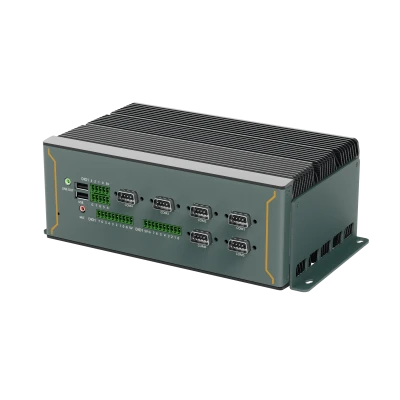

Key Features

• Moment aluminum profile housing, no fan cooling design Intel Skylake-U/Kabylake-U CPU
• 2*DDR4 2133MHz SODIMM, up to 32GB
• 1*HDMI, 1*DP, dual 4K display port
• 5*Gig LAN, 4*USB3.0, 3*USB2.0(one is internal )
• 6*COM, 16-bit iso DIO, Audio out and Mic
• 1*Mini PCIe(PCIe+USB)full size, 1*MLU220 M.2
• 1*mSATA, 1*2.5" SATA shock absorbing drive bay
• Support intel iVpro and optional support TPM 2.0
• DC 9~30V wide power input, overcurrent, overvoltage, short circuit and reverse connection protection
• Aluminum profile bottom shell is designed for hard disk heat dissipation, improve the working temperature of the hard disk

Datasheet

System

CPU

Intel Skylake-U Celeron 3855U; Core-U: I3-6100U ; I5-6200U;  I7-6500U

Intel Kabylake-U Celeron 3865U; Core-U: I3-7100U ; I5-7200U; I7-7500U

Memory

2*260-Pin SODIMM, dual DDR4 2133MHz, up to 32GB

Expansion

1* full size Mini PCIe with PCIe X1+USB signal with SIM slot;

Intel Graphics

Intel Gen. 9th HD Graphics, support HEVC/H265 HW

HDMI max. res. 3940*2160@30Hz,  DP max. res. 4096*2160@60Hz

Audio

Optional support Realtek ALC662VD, support 5.1 channel

LAN

2*Intel I210AT, 2*Intel  I211AT(opt. I210AT) PCIe Gig. Ethernet, 10/100/1000Mbps

1*Intel I219LM Support intel iVpro

Storage

1*2.5" Shock-absorbing drive bay, Fit to the bottom plate to enhance heat dissipation

 , SATA3  6.0Gbps HDD/SDD; 1*mSATA full size, support AHCI

DIO

8bit DIO TTL single Programmable input and output; 8-bit 2.5KV Optically isolated input (H:5-24V, L:0-1.5V), 8-bit 2.5KV Optically isolated input (100mA)

I/O port

5*RJ45 w/ LED Gig-LAN (front),

4*USB3.0 Type A ( front), 2*USB2.0 Type A(rear) ,1*USB2.0 Type A internal

2*5Pin Phoenix term(8-bit DIO rear), 1*10pinPhoenix term (8-bit Iso DI rear), 1*10pin Phoenix term (8-bit iso DO rear)

2*RS232/422/485 DB9 male(rear), 4*RS232 DB9 male(rear);

1*Audio-out 3.5mm (rear) and 1*MIC 3.5mm (rear)

1*HDMI Vertical type A(front) and 1*DP type A(front)

LED

1*PW LED, 1*HDD LED, 3*CPU TEMP LED?Red is warning , Yellow is high, Green is  normal?

Control SW

1*Power button, 1*Reset button(Front);1*2pin ter. power-on signal(Rear), 1*AT/ATX select dip(Front)

Power supply

DC IN 9~30V, 3pin terimal (front), With reverse connection, short circuit, over-voltage and over-current protection, TDP: 12V/2A?I3-6100 CPU 4G DDR4?

Watchdog Timer

Watchdog timeout programmable via software 1 to 255 second

OS

Linux Fedora Ubuntu

Mechanical

Structure

SGCC chassis, Aluminum frame

Color

Silver and Black

Mounting

Desktop Mounting

Dimension

(W*H*D)?225*144.3*87.5mm

Net weight

2.2kg

Environ-mental

Operating

-20°C?60°C – Fanless?wide temp SSD, with airflow

temperature

-10°C?50°C – Fanless?HDD, with airflow

Storage Temperature

- 40°C~85°C

Storage Humidity

10~90%@40°C, Non-condensing

Vibration

5 grms/5~500Hz/random/in  working(SSD); 1 grms/5~500Hz/random/in  working (HDD)

Shock

50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?

Certification/EMC

CE/FCC Class B

M.2 Module

Type

MLU220-M.2

Memory

4GB, LPDDR4x 64bit, 3200Mhz

AI Hashrate

8TOPS?INT8?

Codec ability

Support H.264 ?HEVC (H.265) ?VP8?VP9

Codec ability?support 16X 1080P @30fps

Decoding performance?support 8X 1080P@30fps

Image decoding

JPEG? Max image res: 8192 x 8192

Decoding performance?820 fps@FHD?coding performance?800 fps@FHD

interface

M.2 2280? B+M key ?PCIe3.0 X2?

Consumption

8.25W

Dimension

L: 80mm? W:22mm?H: 7.3mm(Fanless), 21.3mm(with heat dissipation module )

 heat dissipation

passive

surface temperature

-20~80 ?
