AWK-3262A Series

www.alvasta-tech.com / Industrial / Moxa / Industrial Network Infrastructure / Wireless AP/Bridge/Client / WLAN AP/Bridge/Client / AWK-3262A Series /

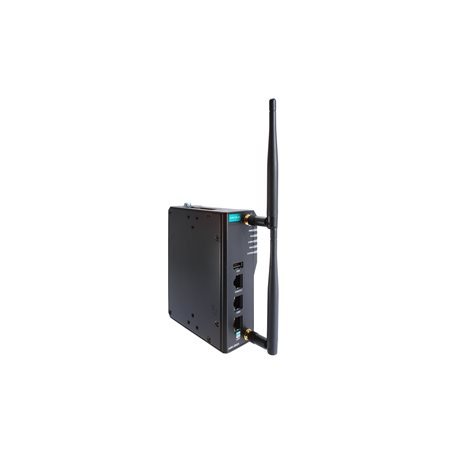

AWK-3262A Series

Features and Benefits

  •  IEEE 802.11ax Wi-Fi 6 AP/bridge/client
  •  Concurrent dual-band Wi-Fi with aggregated data rates up to 1.775 Gbps
  •  Wi-Fi 6 OFDMA technology enables concurrent communication with multiple clients for high density environment
  •  Latest WPA3 encryption for enhanced wireless network security
  •  Millisecond-level Client-based Turbo Roaming
  •  Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
  •  Universal (UN) models with configurable country or region code for more flexible deployment
  •  -40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

Download Datasheet

Introduction

The AWK-3262A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ax technology for aggregated data rates of up to 1.775 Gbps. The AWK-3262A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3262A can be powered via PoE to facilitate flexible deployment. The AWK-3262A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.


Advanced 802.11ax Industrial Wireless Solution

  • 802.11a/b/g/n/ac/ax compliant AP/bridge/client for flexible deployment

  • Wi-Fi 6 OFDMA (Orthogonal Frequency-Division Multiple Access) technology enables concurrent communication with multiple clients for improved network efficiency

  • DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure


Advanced Wireless Technology

  • Seamless roaming with client-based Turbo Roaming1 for < 150 ms roaming recovery time between APs (Client Mode)


Industrial Ruggedness

  • Integrated antenna isolation designed to provide protection against external electrical interference

  • -40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

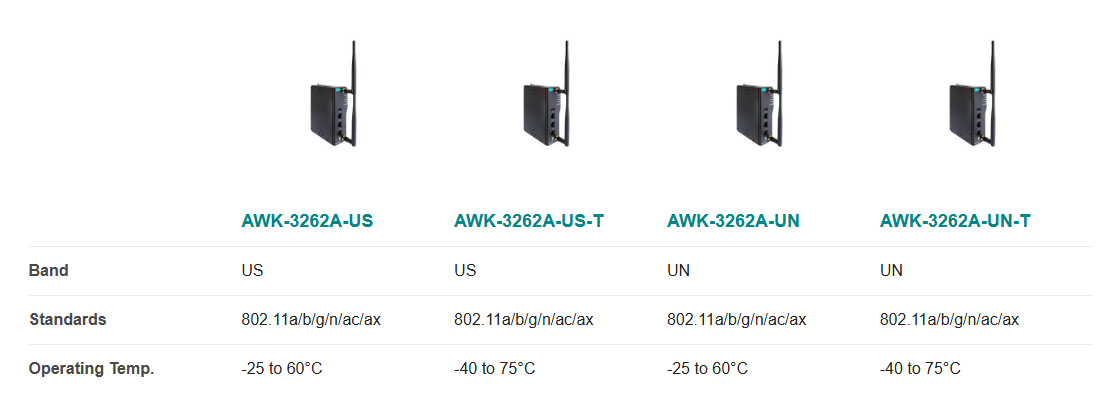

Models



For more information, please contact our support.
