ARK-3000 Series

ARK-3000 series features high performance computing Intel Core i, multi IO expansions, and wide temperature range, being ideal for automation system, factory automation and cabinet integration.

ARK-3530F Intel®Xeon® E3 / Core™ i3/i5/i7 LGA1151 Modular Expansion Fanless Box PC

Support Intel® Xeon® / 6th & 7th Gen. Core™ i3/i5/i7 processor
Triple independent display: VGA + HDMI + Optional Display
DDR4 SO-DIMM memory support up to 32 GB
9-36V power module compatible with all-in-one ordering
Optional modular design for 2.5" hard drive bays: internal /removable (support up to 4 sets)
Advantech iDoor module compatible
Advantech EMIO miniPCIe module compatible with all-in-one ordering

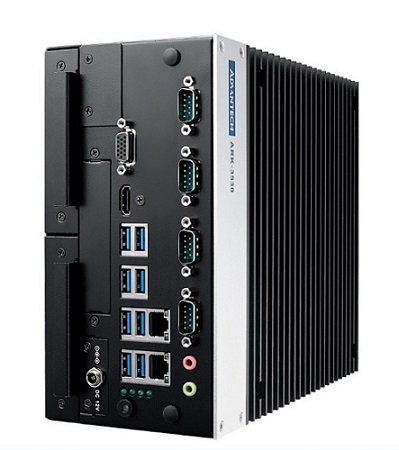

ARK-3530L Intel®Xeon® E3 / Core™ i3/i5/i7 LGA1151 Modular Expansion Fanless Box PC

Support Intel® Xeon® / 6th & 7th Gen. Core™ i3/i5/i7 processor
Triple independent display: VGA + HDMI + Optional Display
DDR4 SO-DIMM memory support up to 32 GB
Option 9-36V power module compatible with all-in-one ordering
Optional modular design for 2.5" hard drive bays: internal /removable (support up to 4 sets)
Advantech iDoor module compatible
Advantech EMIO miniPCIe module compatible with all-in-one ordering
Advantech ARK Plus AMO-3xxx series module compatible

ARK-3520L 6th Gen. Intel® Core™ i3/ i5/ i7 Modular Expansion Fanless Box PC

6th Gen. Intel® Core™ i3/i5/i7 mobile processor (BGA)
Triple independent display: VGA + HDMI + Optional Display
DDR4 SO-DIMM memory support up to 32 GB
Option 9-36V power module compatible with all-in-one ordering
Optional modular design for 2.5" hard drive bays : internal /removable (support up to 2 sets)
Advantech iDoor module compatible
Advantech EMIO miniPCIe module compatible with all-in-one ordering
Advantech ARK Plus AMO-3xxx series module compatible

ARK-3520P 6th Gen. Intel® Core™ i3/ i5/ i7 with Expansion slots and wide range power Fanless Box PC

Intel® Core™ i3/i5/i7 processor (BGA)
Triple independent display: VGA + HDMI + Option Display
DDR4 SO-DIMM memory up to 32 GB
Flexible Expansion via PCI/PCIex4
9-36V wide range Power input
Versatile I/Os including 6 x high speed USB 3.0 and 8 x COM ports
2 Removable 2.5" HDD drive bay
Advantech iDoor module compatible

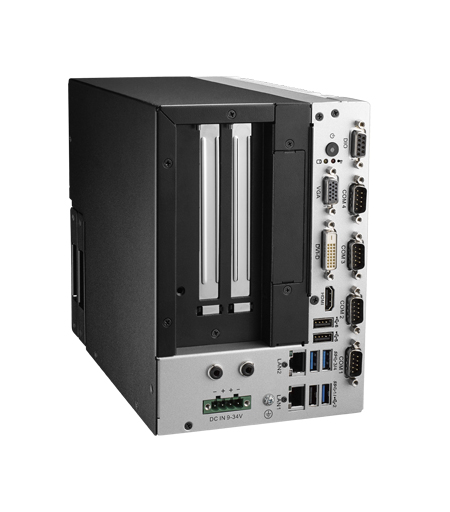

ARK-3405 Intel® Celeron™ N3160 Fanless Embedded Box PC with Rich Expansion and Dual Removable 2.5" HDD Drive Bays

Intel® Celeron™ N3160 Quad Core 2.24GHz SoC with Turbo boost Support
Supports VGA /DVI-D/HDMI triple independent display
Support 2 GbE, 3 USB 3.0, 3 USB 2.0, 1 DIO, audio and 4 COM ports
Two removable 2.5" SATA HDD drive bays
Flexible Expansion via PCI/PCIe x1
Support 2 Mini PCIe with 1 SIM holder for communication module
Wide range power input 9-36V
Advantech iDoor module compatible

ARK-3510 3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 x 2.5" Removable HDD Bays Fanless Box PC

Supports Intel® Core™ i3/i5/i7 mobile processor(rPGA) + Intel QM77 PCH
Triple independent display with 3rd gen Core I processor : DVI + HDMI + DisplayPort
DDR3/DDR3L SO-DIMM memory support up to 16 GB
Supports 2 x 2.5" removable SATAIII drive bays
2 x miniPCIe cards with SIM card holders
Versatile I/Os including 4 x high speed USB 3.0 and 4 x COM ports
Lockable 12V DC jack design
Supports iManager, WISE-PaaS/RMM and Embedded Software APIs

ARK-3500 3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 Expansion slots and wide range power Fanless Box PC

Supports Intel® Core™ i3/i5/i7 mobile processor(rPGA) + Intel QM77 PCH
Triple independent display with 3rd gen Core i processor : DVI + HDMI + DisplayPort
DDR3/DDR3L SO-DIMM memory support up to 16 GB
2 expansion slots with vary interface: PCI, PCIe x 1 & PCIe x 4
2 x miniPCIe slots with SIM card holders
9-34V wide range lockable DC jack design
Versatile I/Os including 4 x high speed USB 3.0 and 8 x COM ports
Flexible Storage Support including 2x mSATA, 1x CFast and 2x 2.5" SATA HDD/ SSD bays
Supports iManager, WISE-PaaS/RMM and Embedded Software APIs
