ARK-1000 Series

ARK-1000 series features ultra small and low power consumption designs that offer sufficient storage and expansion capability for easy implementation as Embedded Computers, which is ideal for space-limited applications.

ARK-1220L Intel Atom E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC

• Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz
• DIN-Rail system with essential I/O ports on front-side bezel
• 2 x Intel GbE and 4 x USB 3.0
• Dual HDMI display up to 4K resolution
• 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
• 1 x 2.5” SATA III SSD and 1 x full-size mSATA*
• 12V ~ 28V wide range power input
• -30 ~ 70°C extended operating temperature
• Advantech WISE-PaaS support

More

ARK-1124U Intel Celeron N3350 DC SoC With Dual LAN/ Four USB 3.0/M.2/TPM IoT Gateway Modular Fanless Box PC

• Intel Celeron N3350 Dual Core SoC
• VGA Display/2x RS-232/422/485/4x USB 3.0
• 1 x Full-size miniPCIe with SIM holder for communication module
• 1x M.2 E-key for WIFI module
• -20 ~ 60 °C extended operating temperature
• TPM 2.0 default built-in
• 12V lockable DC jack power input
• Optional 12~24V power module (Dual Layer)
• Advantech iDoor module compatible (Dual Layer)
• Advantech WISE-PaaS/RMM support

More

ARK-1124H Intel Atom™ E3940 QC SoC With Dual HDMI/ Dual LAN/ Four USB Modular Fanless Box PC

• Intel Atom E3940 Quad Core SoC
• Dual HDMI independent display support 4k2k resolution
• 1 x Full-size miniPCIe with SIM holder for communication module
• 1 x M.2 E Key for WIFI module
• 1 x 2.5" SATA III SSD/HDD and 1 x mSATA
• TPM built in for well security
• -20 ~ 60 °C extended operating temperature
• 12V lockable DC jack power input
• Optional 12~24V power module (Dual Layer)
• Advantech iDoor module compatible (Dual Layer)
• Advantech WISE-PaaS/RMM support

More

ARK-1124C Intel Celeron N3350 DC SoC With Four Serial Ports Modular Fanless Box PC

• Intel Celeron N3350 Dual Core SoC
• VGA Display, 4 x RS-232/422/485, 2 x USB3.0
• 1 x full-size miniPCIe for communication module
• 1 x 2.5" SATA III SSD/HDD and 1 x half-size mSATA
• -20 ~ 60 °C extended operating temperature
• 12V lockable DC jack power input
• Optional 12~24V power module (Dual Layer)
• Advantech iDoor module compatible (Dual Layer)
• Advantech WISE-PaaS/RMM support

More

ARK-10 Intel® Celeron Quad Core J1900 Quad Core SoC with Dual GbE and Dual COM Fanless Box PC

• Intel® Celeron J1900 Quad Core 2.0 GHz SoC
• 2G DDR3L Memory & 500G 2.5" 24x7 SATA HDD Built In
• 2 x GbE for Multiple Internet Transmission
• 2 x RS-232/422/485 (BIOS selection)
• 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
• 1 x Half-Size MiniPCIe (ex. mSATA)
• Optional VESA / DIN Rail / Wall Mounting kits
• Threaded DC jack design
• Supports SUSIAccess and Embedded Software APIs

More

ARK-1123L Intel® Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC

• Intel® Atom™ Processor E3825 Dual Core 1.33 GHz SoC
• 1 x 2.5" SATA HDD/SSD Bay
• 1 x GbE & 1 x VGA & 1 x GPIO
• 1 x RS-232 & 1 x RS-232/422/485
• 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
• 1 x Half Size MiniPCIe (ex. mSATA)
• Optional VESA / DIN Rail / Wall Mounting kits
• Threaded DC jack design
• Supports SUSIAccess and Embedded Software APIs

More

ARK-1123C Intel® Atom E3825 SoC with Dual GbE and Dual COM Fanless Box PC

• Intel® Atom™ E3825 Dual Core 1.33 GHz SoC
• 1 x 2.5" SATA HDD/SSD Bay & 1 x VGA
• 2 x GbE for Multiple Internet Transmission
• 2 x RS-232/422/485 (BIOS selection)
• 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
• 1 x Half-size mSATA
• Optional VESA / DIN Rail / Wall Mounting kits
• Threaded DC jack design
• Supports SUSIAccess and Embedded Software APIs

More

ARK-1123H Intel® Celeron Quad Core J1900 SoC with Dual HDMI/GbE IoT Fanless BOX PC

• Intel® Celeron J1900 Quad Core 2.0 GHz SoC
• 1 x 2.5" SATA HDD/SSD Bay
• 2 x GbE for Multiple Internet Transmission
• 2 x Independent HDMI
• 1 x RS-232/422/485 (BIOS selection)
• 1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
• 1 x Half Size mSATA
• Optional VESA / DIN Rail / Wall Mounting kits
• Threaded DC jack design
• Supports SUSIAccess and Embedded Software APIs
• Support WIFI 802.11 a/b/g/n bundled for IoT Gateway

More

ARK-1122H Intel® Atom™ Dual Core N2600 with Independent Dual Displays Fanless Box PC

• Intel® Atom™ Dual Core N2600, 1.6 GHz
• Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
• Supports independent dual displays interfaces : VGA + HDMI
• Supports 1 x GbE and 4 USB 2.0 ports
• Supports 1 x RS-232 and Audio line in / line out
• Supports mSATA and/or 2.5" SATA HDD bay
• Wide operating temperature -20 ~ 60° C support
• Optional VESA / DIN-Rail / Wall mounts
• ?Lockable DC jack design
• Supports SUSIAccess and Embedded Software APIs
• Phase out, last order date: March 31, 2018

More

ARK-1122C Intel® Atom™ Dual Core N2600 with 4 COM Port Extendibility Fanless Box PC

• Intel® Atom™ Dual Core N2600, 1.6 GHz
• Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
• Supports 4 x COM ports (2 x RS-232 & 2 x RS-232/422/485, select by BIOS)
• Supports 1 x VGA and 4 x USB 2.0 ports
• Built-in 1 x half size Mini PCIe expansion slot (i.e.: Wi-Fi module)
• Supports mSATA storage (Hard drive bay by request)
• Wide operating temperature -20 ~ 60° C support
• Optional VESA / DIN-Rail / Wall mounts
• Lockable DC jack design
• Supports SUSIAccess and Embedded Software APIs
• Phase out, last order date: March 31, 2018

More

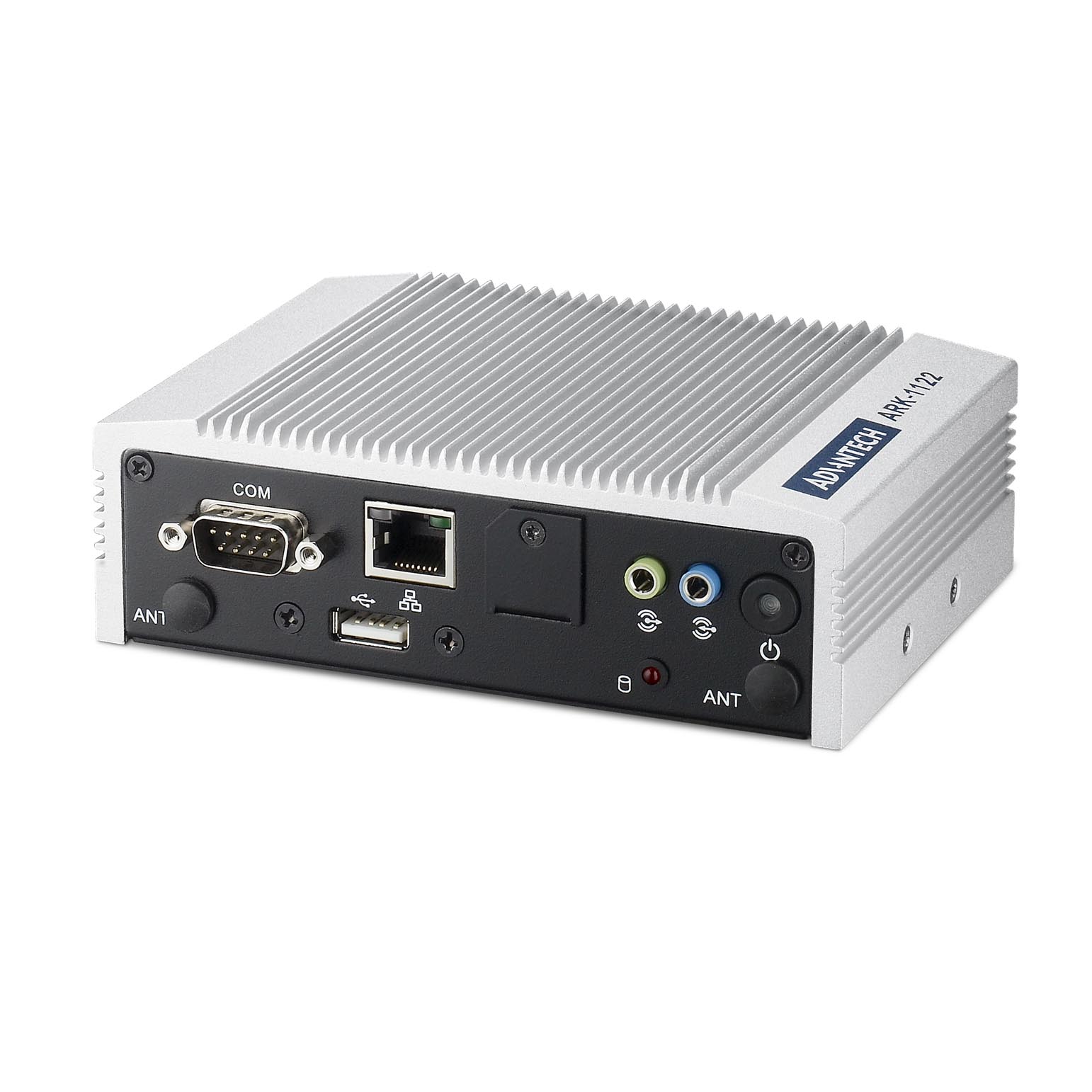

ARK-1122F Intel® Atom™ Dual Core N2800 with Diverse Communications Fanless Box PC

• Intel® Atom™ Dual Core N2800, 1.86 GHz
• Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
• Supports 2 x Intel GbE
• Built-in 2 x Mini PCIe slots for Wi-Fi/3G communications (1 w/ SIM)
• Supports independent dual displays interfaces : VGA + HDMI
• Supports 1 x RS-232, Audio line in / line out and 3 USB 2.0 ports
• ?Supports mSATA storage
• Wide operating temperature -20 ~ 60 C support
• Optional VESA / DIN-Rail / Wall mounts
• ?Lockable DC jack design
• Supports SUSIAccess and Embedded Software APIs
• Phase out, last order date: March 31, 2018

More

ARK-1550 Intel® 4th Generation Core i5 4300U/ Celeron 2980U SoC Slim and Panel Mountable Fanless Box PC

• Intel® Dual Core Celeron 2980U 1.6 GHz / Core i5 4300U 1.9 GHz SoC
• One Swappable 2.5" SATA HDD Bay and mSATA slot
• Triple Independent Displays by VGA + HDMI + LVDS (LVDS option)
• Optional VESA / DIN Rail Mounting kits
• Supports 2 x Intel GbE and 1 x GPIO
• Built-in 1 x full size MiniPCIe
• Lockable DC jack design
• Supports iManager, SUSIAccess and Embedded Software APIs
• Support Intel Turbo Boost Technology 2.0 in Core i5 4300U

More
