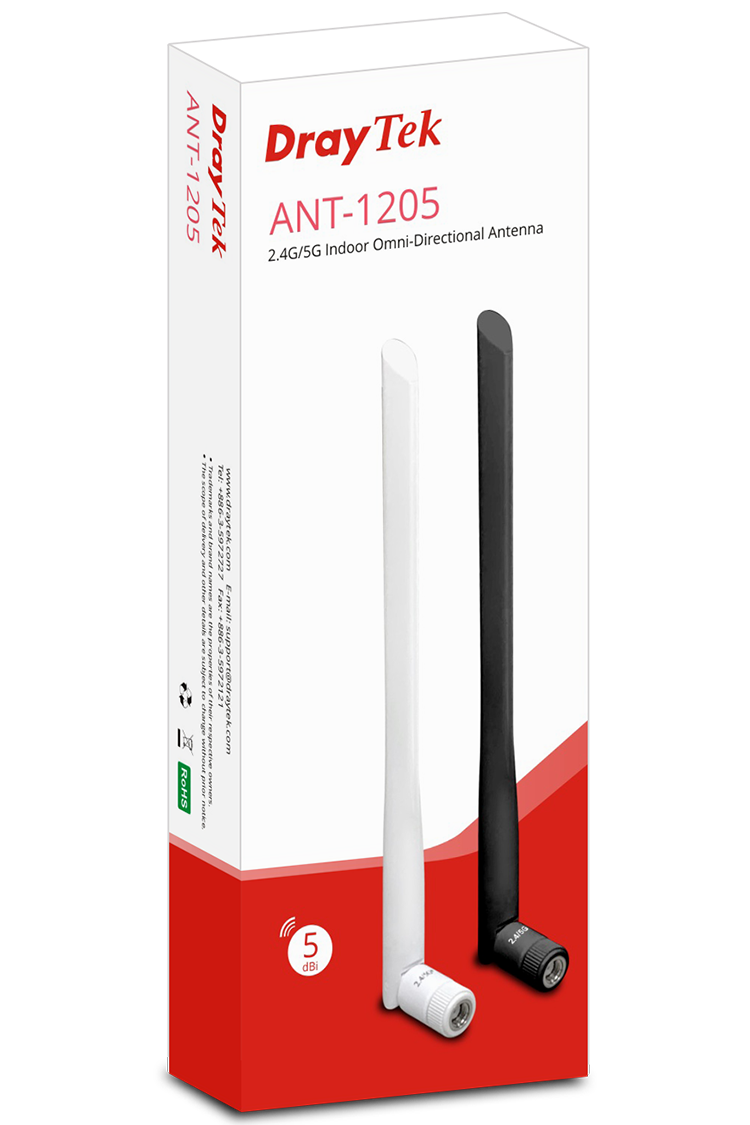

DrayTek ANT-1205 is a dual-band antenna, can be a replacement antenna for VigorRouter or VigorAP. The ANT-1205 is compatible with 802.11a/b/g/n/ac standards, and 802.11 ax (Wi-Fi 6) to provide faster wireless throughput and enhance Wi-Fi performance in both 2.4G/5G. ANT-1205 is supplied in pair and available in black or white color, you can purchase the needed amount according to your Router/AP devices.
Specification | |
| Operation Band | 2.4GHz and 5GHz |
| Standard | IEEE 802.11a/b/g/n/ac/ax |
| 2.4GHz Frequency Range | 2400 to 2500 MHz |
| 5GHz Frequency Range | 5150 to 5850 MHz |
| 2.4GHz Gain | 5 dBi |
| 5GHz Gain | 4.5 dBi |
| 2.4GHz Voltage Standing Wave Ratio(VSWR) | < 2.0 |
| 5GHz Voltage Standing Wave Ratio(VSWR) | < 2.0 |
| Polarization | Linear |
| HPBW Horizontal | 360° |
| Power Handling | 1W |
| Impedance | 50 ? |

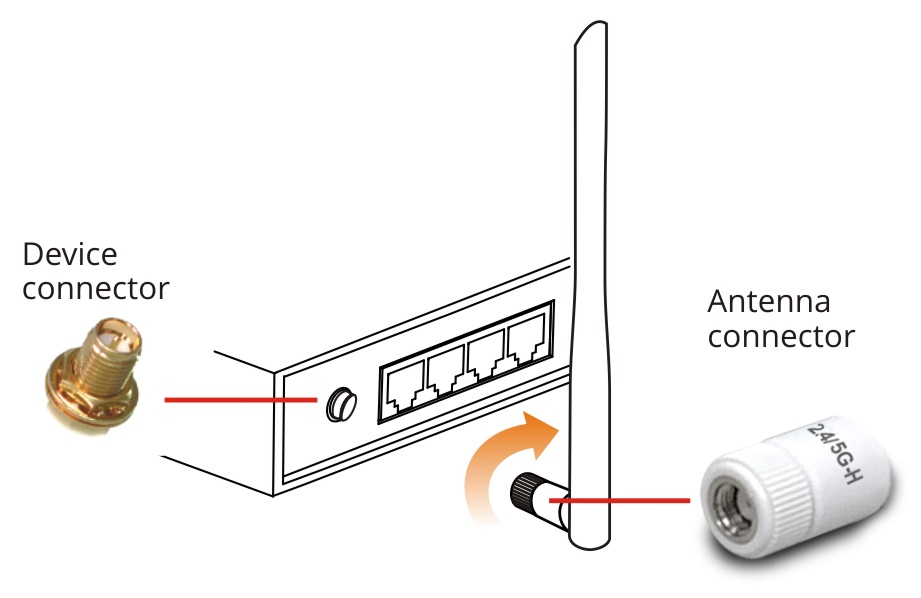

| Connector | RP SMA Plug |
| Environment | Indoor |
| Package | 2 pcs per box |
