| Key Features - Aluminum die–casting chassis, fanless design
- 21.5'' LED TFT LCD, capacitive/resistive touch
- Intel® Skylake–U/Kabylake-U CPU
- 1*DDR4 2133 SODIMM, Max 16GB
- 1*Mini PCIe (PCIe+USB),Opt.1*32-bit PCI/PCIe X1
- 4*COM, 2*LAN, 4*USB3.0, 1*USB2.0?1*Line out
- 2.5”HDD Bay, 1*mSATA
- ATX button&remote button
- DC 9~36V power input
Datasheet |

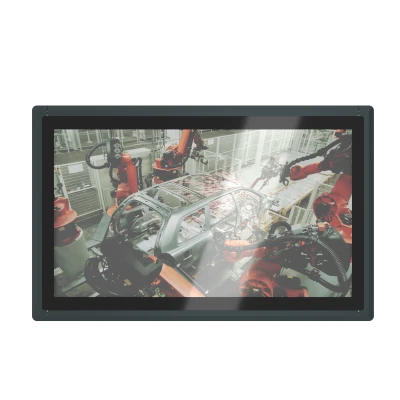

ALAD-K2120T(P) | Industrial Panel Computer
21.5’’ TFT LCD Capacitive Touch, Intel® Skylake-U/Kabylake-U CPU, 2*LAN, 4*USB3.0, 1*PCIeX1/PCI, DC 9~36V, IP 65 Front panel.
ALAD–K2120T-Gis an intelligent, fanless embedded panel, the system powered by Intel® Skylake-U/Kabylake-U
Celeron and Core I3/I5/I7 CPU. Supports 21.5inch 1920*1080@60Hz TFT LCD. It offers multiple I/O interfaces, 1*2.5” easy–pluggable SATA bay and 1*mSATA for storage, 1*MiniPCIe socket (PCIex1+USB signal) and PCI/PCIe X1 for expansion.DC 9~36V wide power input, be fit for use in MES and machines HM.
Specification
System | CPU | Gen.6th Intel® Skylake-U Celeron 3855U; Core I3-6100U; I5-6200U; I7-6500U CPU Gen. 7th Intel® Kabylake-U Celeron 3865U; Core I3-7100U; I5-7200U; I7-7500U CPU |
Chipset | Intel® SOC |
System Wemory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
BIOS | Insyde SPI 64Mbit flash |
Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA |
Display | 21.5'' LED backlight TFT LCD and HDWI(4K resolution) , dual display, Intel® HD graphics 510/520 |
Touch | 5 wire resistive touch optional projected capacitive touch, USB control |
Expansion | 1*Mini PCIe(PCIe&USB signal),Opt.1*32-bit PCI or 1*PCIe X1 |
Audio | Realtek ALC662VD controller, Support 5.1 channel, 2*3W Speaker |
Real I/O | 4*COM:2*RS232, 2*RS232/422/485, DB9(when using PCI/PCIe?there are only 2*COM) 1*HDMI,1*Line out 4*USB3.0 Type A 2*RJ45 |
Front I/O | 1*USB2.0 Type A |
LAN | 2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps |
Control SW/LED | 1*Cmos,1*AT/ATX?Power button, 2–pin connecter with power switch signal,HDD LED |
Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/4.12A(Intel® I5–6200U CPU, 4GB DDR4) |
OS | Windows 7, Windows 8.1,Windows 10,Linux |
Mechanical & Environmental | Construction | Aluminum die–casting front bezel , fin–shaped radiator shell |
Operating Temperature | 0~50? –HDD( –10~55? –SSD), with airflow |
Storage Temperature | –20~60? |
Storage Humidty | 10~95%@40 , non–condensing |
Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
Vibration | 1g 5~500Hz, in operating with HDD |
Mounting | Panel mounting, VESA 100*100 and 75*75mm |
Dimension | (W*H*D):546.9*344.7*64.1mm; mounting cut out(W*H): 537.5*335.3mm |
Net Weight | 8.15kg |
EMC | CE,FCC Class A |
LCD | Type | 21.5;TFT LED |
Resolution | 1920*1080 |
Color | 16.7M |
Pixel Pitch | 0.248*0.248(mm) |
Brightness(cd/m2) | 300 |
Viewing Angle | 89°(left), 89°(right), 89°(uo),89°(down) |
Temperature | 0~50? |
Backlight Lifetime | 50000 hours |
Touch | Type | Projected capacitive touch |
Resolution | gapless |
Light Transmittance | 90% |
Interface | USB |
Consumption | +5V @300mA |
OS | Windows/Linux |
Click Lifetime | 3000 million times |
