| Key Features
|
18.5" TFT LCD, Capacitive Touch Screen, HDMI&VGA, OSD Function Keys

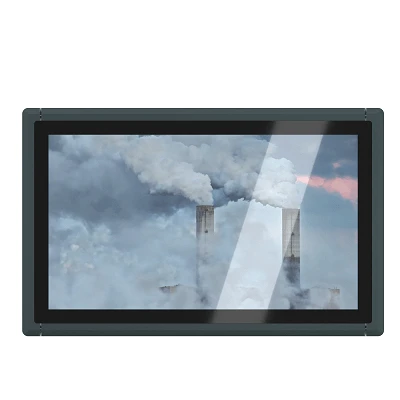

ALAD-181T(P) is a brand new industrial display, designed to meet the needs of customers who want quick and easy integration with JHCTECH Embedded Box Computers, such as KMDA and FEBC lines. ALAD-181T(P) supports 18.5 inches 1366*768 TFT LCD, with projected capacitive touch, DC 9~36V power input.
Specification
| SPEC | |||
|---|---|---|---|
| Video | HDMI | Resolution | 1366*768 |
| Horizontal Frequency | 30~90KHz | ||
| Vertical Frequency | 56~75Hz | ||
| VGA | General | ||
| Audio | Frequency Response | ±3dB | |
| R/L Channel separation | 70dB | ||
| Degree of Distortion(THD) | 1.5~2% | ||
| Signal-Noise Ratio(S/N) | 80dB | ||
| Power | Input Voltage | DC 9~36V | |
| Power Consumption | 12V@1.7(No consumption output) | ||
| Power Requirement | >12V@2.5A | ||
| Standby Current | Low power consumption, standby consumption<1W | ||
| Audio Amplifier | 2*3W(4??(Optional) | ||
| OSD Language | Chinese, English, German, French, Russian, Italian, Spanish, Arabic, and so on | ||
| OSD Function Key | AUTO/Power/Menu/Source/UP(LEFT)/DOWN(RIGHT) | ||
| LED Light | Green for display, red for standby | ||
Mechanical & | Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell | |
| Operating Temperature | 0~50 with airflow | ||
Storage Temperature | -20~60 ° C | ||
| Storage Humidity | 10~95%@40, non-condensing | ||
| Shock | 10g peak acceleration(duration 11ms) | ||
| Vibration | 1g 5~500Hz | ||
| Mounting | Panel mounting, VESA 100*100mm | ||
Dimension | (W*H*D):482.3*304.3*59.1mm; mounting cut out(W*H):473.8*295.8mm | ||
Net Weight | 6.6 kg | ||
| EMC | CE, FCC Class A | ||
| LCD | Type | 18.5" TFT LED |
Resolution | 1366*768 | |
| Color | 16.7M colors | |
| Pixel Pitch(mm) | 0.300*0.3000 | |
| Brightness(cd/m2) | 300 | |
Viewing Angle | 89 Degree(left), 89 Degree(right), 85 Degree(up), 85 Degree(down) | |
Operating Temperature | -0~60? | |
| Backlight lifetime | 50,000 hours |
| Touch | Type | 5-wire Resistive Touch | Projected capacitive touch |
Resolution | gapless | gapless | |
| Light Transmittance | 83% | 90% | |
| Interface | USB/RS232 | USB/RS232 | |
| Consumption | +5V @ 200mA | +5V @ 300mA | |
OS | Windows/Linux | Windows/Linux | |
Click Lifetime | 35 million times | 3 billion times |
| Ordering information | |
|---|---|
| NO. | Illustration |
| ALAD-181T/ S001 | Industrial touch display 1 TFT LCD 5 wire resistive touch, 1*HDMI, 1*VGA 1*Audio In, DC 9~36V |
| ALAD-181T(P)/ S001 | Industrial touch display, 1 TFT LCD, projected capacitive touch, , 8.5'' 1*HDMI 1*VGA, 1*Audio In, DC 9~36V |
| PA-60DC12 | AC/DC power adapter, DC12V/5A 60W |
