| Key Features - Aluminum die-casting chassis, natural smooth design
- 17'' LED TFT LCD, LED backlight
- 5 wire heat-resistant resistive touch screen
- Optional projected capacitive screen, Support multi touch
- HDMI and VGA video input
- Audio input, 2*3W speakers
- DC 9~36V wide power input
- Flat bezel, IP65 front panel
Datasheet |

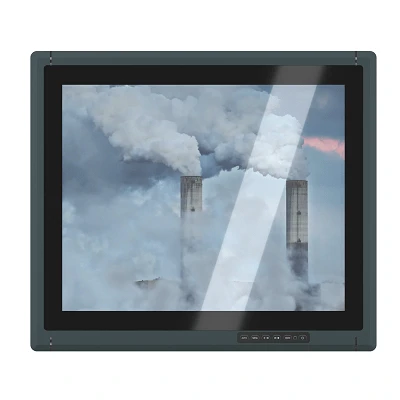

ALAD-171T | Industrial Touch Display
17" TFT LCD, Capacitive/Resistive Touch Screen, HDMI & VGA, OSD Function Keys
ALAD-171T-G is a new industrial touch display. ALAD-171T supports 19 inches 1280*1024 TFT LCD, with a 5-wire resistive touch screen, and optional projected capacitive touch. There are HDMI&VGA video input, Audio input, 2*3W speakers and DC 9~36V wide power input. It is an industrial-standard multimedia display with a variety of installations that is fit for different applications.
Specification
Video | HDMI | Resolution | 1280*1024 |
Horizontal Frequency | 30-90KHz |
Vertical Frequency | 56~75Hz |
VGA | General |
Audio | Frequency Response | ±3dB |
R/L Channel Separation | 70dB |
Degree of Distortion(THD) | 1.5~2% |
Signal-Noise Ratio(S/N) | 80dB |
Power | Input Voltage | DC 9~36V |
Power Consumption | 12V@1.6(No consumption output) |
Power Requirement | ?12V@2.5A |
Standby Current | Low power consumption , standby consumption<1W |
Audio Amplifier | 2*3W(4?)(Optional) |
OSD Language | Chinese,English,German,French,Russian,Italian,Spanish,Arabic,and so on |
OSD Function key | AUTO/Power/Menu/Source/UP(LEFT)/DOWN(RIGHT) |
LED Light | Green for display, red for standby | |
Mechanical & Environmental | Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell |
Operating Temperature | -0~60??with airflow |
Storage Temperature | -40~80? |
Storage Humidity | 10~95%@40?, non-condensing |
Shock | 10g peak acceleration(duration 11ms) |
Vibration | 1g 5~500Hz |
Mounting | Panel mounting, VESA 100*100 |
Dimension | (W*H*D):415.5*360.5*59mm; mounting cut out(W*H)?407*352mm |
Net Weight | TBD |
EMC | CE, FCC Class A |
LCD | Type | 17" TFT LED |
Resolution | 1280*1024 |
Color | 16.19M |
Pixel Pitch(mm) | 0.264*0.264(mm) |
Brightness(cd/m2 ) | 600 |
Viewing Angle | 80?(left), 80?(right), 70?(up), 80?(down) |
Operating Temperature | -0~60? |
Backlight Lifetime | 70000 hours |
Touch | Type | 5 wire resistive screen | Projected capacitive screen |
Resolution | gapless | gapless |
Light Transmittance | 83% | 90% |
Interface | USB | USB |
Consumption | +5V@200mA | +5V @300mA |
OS | Windows/Linux | Windows/Linux |
Click Lifetime | 35 million times | 3 billion times |
Ordering Information
Model NO. | Introductions |
ALAD-171T-G/ S001 | Industrial touch display, 17'' TFT LCD, 5 wire resistive screen, 1*HDMI, 1*VGA, 1*Audio in, 2*speaker, DC 9~36V |
ALAD-171T(P)-G/ S001 | Industrial touch display, 17'' TFT LCD, projected capacitive screen, 1*HDMI, 1*VGA, 1*Audio in, 2*speaker, DC 9~36V |
PA-60DC12 | AC/DC power adapter, DC12V/5A 60W |
