| Key Features
|
Intel® Alder lake-S/Raptor Lake-S CPU, 2xLAN, VGA+HDMI+DP, 3xCOM, 4xUSB3.2?7xUSB2.0, 7xPCIe/PCI, 4xSATA Bay, 4U rackmount, ATX power

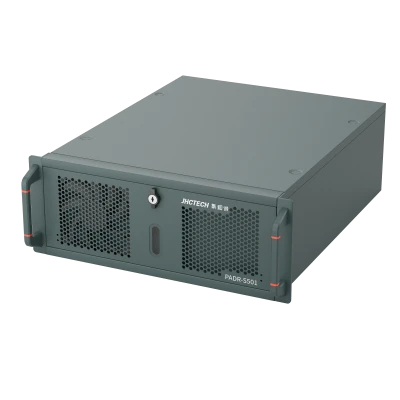

PADR-S501-980 is a standard 19”4U rackmount industrial computer with an Intel Q670 chipset powered by Intel® gen 12/13th Alder lake-S/Raptor Lake-S LGA1700 series CPU. Rich functional IO, 7 PCIe/PCI expansion capabilities, excellent air cooling design, power consumption ladder ATX power supply selection, suitable for machine vision, CNC machine tools and factory production line automation and other fields.
Specification
| CPU+PCH | Intel gen 12/13th Alder lake-S/Raptor Lake-S Core i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU, up to 125W, Q670 chipset |
| Memory | 4x288-pin Non-ECC UDIMM , dual channel DDR4 3200MHz, up to 128GB |
| Expansion | 2xPCIeX16 Gen5.0 slot (X8 Signal), 2xPCIeX4 Gen4.0 slot (X4 Signal), 2xPCIeX4 Gen3.0 slot (one is the X4 signal, and one is the X1 signal), 1x32-bit PCI slot 1*M.2 2280 M-Key?Gen4.0 PCIe X4 Signal? |
| Graphics | Intel Xe architecture 700 Series UHD Graphics, Supports DirectX 12, OpenGL 4.5 and OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 HDMI max. res. 4096*2160@60Hz?DP max. res. 7680*4320@60Hz?VGA max. res. 1920*1200@60Hz |
| Audio | Realtek ALC897 controller, support 5.1 channel , optionally support dual channel 3W/8 ohm power amplifier |
| LAN | 1xIntel I226V?10M/100M/1000M self-adapt?support WOL 1xIntel I219LM?10M/100M/1000M self-adapt?support iAMT13.0 active management, pairing i5/i7/i9 CPU can support vPro remote management |
| Storage | 4xSATA3, 6.0Gbps interface, support RAID0/1/10/5, the box is designed with 4x3.5 "and 2x2.5" a set of anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage |
Rear I/O
| 2xLAN(RJ45); 1xHDMI+1xVGA+1xDP; 1xLine out+1xMic 2x3.5mm phone jack 4xUSB3.2 Gen2 (10Gb/s, Type A), 4xUSB2.0(Type A)?support USB Power to switch between Systemmode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 1xRS232(DB9 male) |
| Front I/O | 2xUSB2.0(Type A) |
| Internal I/O | 8bit DIO (2*5 pin header), 2xUSB3.2 Gen2 (10Gb/s, 2*10 pin header), 1xUSB2.0(Type A), 3*RS232 pin header, 1xF_AUDIO, 1xAMP, the built-in interface can be elicited through an extension window |
| Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper |
| Power Supply | AC100-240V input, standard ATX power supply 300W, optional 500W, 750W or 1000W; TDP: 232.3W (I7-12700K CPU/16G DDR4/256G SSD) |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| Security | Support Infineon TPM2.0(Opt.) |
| OS Support | Windows 10/11 IoT Enterprise (64-bit), Windows Server 2019, Ubuntu, SUSE, Redhat Enterprise, Wind River Linux?Yocto Project (64-bit)?Wind River VxWorks 7 |
| Structure and Mounting | Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set |
| Cooling | Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan |
| Color | Granite grey |
| Dimension | (W*H*D)?430x470x173mm |
| Height | 14.0kg |
| Operating Temperature | 0?50? |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~95%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
| EMC/Certification | CE/FCC Class A, 3C |
