| Key Features - Universal Aluminum Chassis, Fanless Design
- Intel Baytrail Celeron J1900 2.0-2.42G CPU
- 1*DDR3L 1333 MHz SODIMM , Up to 8GB
- 4*Intel I211-AT PCIe Gig LAN
- 1*HDMI and 1*VGA, Audio Line out and Mic
- 1*USB3.0, 6*USB2.0,6*COM, 24 bit DIO
- 1*Mini PCIe(PCIe+USB),1*Mini PCIe(SATA+USB)
- 1*3.5" SATA2 Bay and 1*mSATA\
- DC 9~36V Wide Power Input
Datasheet |

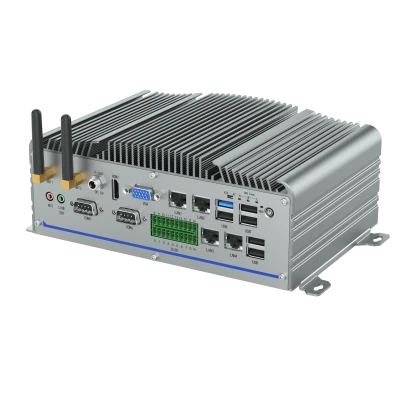

KMDA-2701?Fanless Box Computer
Intel Celeron J1900 CPU,4*LAN,7*USB,6*COM, HDMI and VGA, DC-IN 9~36v,CPU Temp. show in LED, Audio Line out & Mic, 24-bit DIO.
Universal dimension box computer KMDA-2701, PCB to PCB mult structure and fanless design. Powered by Intel Celeron J1900 2.0-2.42GHz 4cores 4threads processor, DDR3L 1333MHZ SODIMM memory up to 8GB. 4 Gig. LAN, 1*USB3.0, 6*USB2.0(1 inside), HDMI and VGA dual display, 24bit DIO, 1*Mini PCIe, 1*mSATA and 1*3.5" SATA bay. DC 9-36V wide power input, Operating temperature showing in LED, economical and reliable, it will be fit for security and manufacture application.
Specification
System
| | CPU | Intel Baytrail-D Celeron J1900 , 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm, TDP 10W | | System Memory | 1*DDR3L 1333MHz SODIMM, Up to 8GB | | Expansion | 1*Full size Mini PCIe with PCIe X1(4LAN Non PCIe) and USB with SIM slot, support 4G LTE /Wifi/BT etc.? 1*Full size Mini PCIe with USB+SATA3 signal use to be mSATA | | Graphics | Intel HD Graphics, VGA resolution 1920*1200@60Hz, HDMI resolution1920*1080@60Hz, Dual independent display , Support OpenGL 3.2, DirectX 11, OpenCL 1.2, MPGE2/H.264 Realtek ALC662 | | Audio | HD Audio , 5.1 sound channel, Inside 3W left/right amplify speaker header | | LAN | 4*Intel I211AT PCIe Gigabit Ethernet, Integrated 10/100/1000M transceiver | | KB & MS | USB keyboard and mouse | | Storage | 1*3.5" HDD bay, SATA2 3.0Gbps, cooling by aluminum cover; 1*mSATA full size, dual AHCI | | DIO | 24 bit TTL signal, Programmable input and output | | I-port | Optional 1*USB2.0 or Mini PCIe module I/O ports?such as CAN Bus, Gig LAN etc.? | | I/O Ports | 4*RJ45 LAN with LED?Front);
1*USB3.0 Type A and 5*USB2.0 Type A(Front) , 1*USB2.0 Type A (Inside)
2*10Pin 16bit DIO terminal connector (Front); 2*5Pin 8bit DIO terminal connector(Rear) 4*RS232/422/485 and 2*RS232 Db9 connector(Rear)
1*HDMI and 1*VGA(Front); 1*Line-out and 1*Mic, dual 3.5mm phone jack(Front)
1*2pin terminal connector, with power sw signal?Rear? | | LED | 1*Power on LED, 1*HDD Run LED, 3*CPU temp. LED(Red: Warning, Yellow: High, Green: Normal) | | Control SW | 1*Power sw(Front), 1*2pin term. power sw (Rear), 1*AT/ATX Select dip(Front) | | Power Supply | DC 9~36V Input, D-Jack with M8 screw (Front?; Consumption: 12V/1.6A(3.5" HDD) | | Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | | OS Support | Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu |
|
Mechanical
| | Structure | U form Aluminum Chassis, SGCC | | Color | frame Silvery | | Mounting | Desktop mounting | | Dimension | (W*H*D)?210*144*82.7mm | | Net Weight | 2.60kg |
|
Environmental | | Operating temperature | -20°C~70°C – Fanless with wide operating temp. SSD, Airflow
-10°C~55°C – Fanless with HDD, Airflow | | Storage temperature | -40°C~85°C | | Storage humidity | 10~90%@40°C, Non-condensing | | Vibration | 5 grms/5~500Hz/random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) | | Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | | EMC | CE/FCC Class A |
|
