IGS-10080MFT

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Industry and Telecom

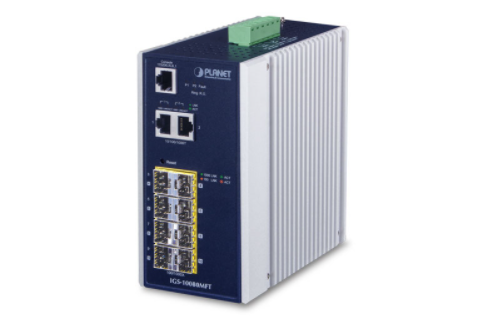

PLANET IGS-10080MFT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable, high speed data in heavy industrial demanding environments and also can forward data to remote network through fiber optic. It provides two 100/1000/2500BASE-X and six 100/1000BASE-X SFP fiber optic ports, two extra 10/100/1000BASE-T copper interfaces delivered in an IP30 rugged  case with redundant power system. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-10080MFT can be placed in almost any harsh environment.

IPv6 / IPv4 Full-Functioned Managed Switch for Building Automation Networking
The IGS-10080MFT is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. The IGS-10080MFT provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer’s industrial and automation network connectivity.

Fast Recovery to a Redundant Ethernet Network
The IGS-10080MFT features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (RSTP), Multiple Spanning Tree (MSTP) as well as the Loop protection function that will shutdown specific Ethernet interfaces when system detects a loop. The dynamic port Link Aggregation and Redundant Power System are provided into customers’ industrial automation network to enhance system reliability and uptime in the harsh factory environments. It greatly protects customer’s industrial network with switching recovery capability that is used for implementing fault tolerant ring architectures.

Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-10080MFT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

Flexible and Extendable Solution

The IGS-10080MFT’s 8 built-in mini-GBIC slots support triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) fiber-optic modules on port 3 and port 4, while ports 5 to 10 support dual-speed 100/1000BASE-X SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

1588 Precision Time Protocol for Industrial Computing Networks

The IGS-10080MFT is intended for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for the IEEE 1588 Precision Time Protocol and synchronous Ethernet. The protocol can precisely synchronize multiple clocks on a network.
