| Features and Benefits- 4 IEEE 802.3af-compliant PoE and Ethernet combo ports
- Provides up to 15.4 watts at 48 VDC per PoE port
- Intelligent power consumption detection, PD failure check, and PoE scheduling function
- 3 combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot) Gigabit ports; 2 ports for redundant ring and 1 port for uplink
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
|
Introduction

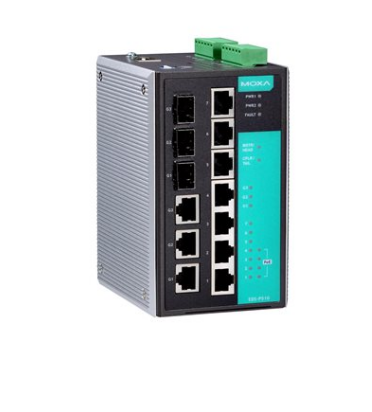

The EDS-P510 Series Gigabit managed redundant Ethernet switches have 4 10/100BaseT(X) 802.3af (PoE) compliant Ethernet ports and 3 combo Gigabit Ethernet ports. The EDS-P510 switches provide up to 15.4 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P510 switches are highly versatile, and their SFP fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features. The EDS-P510 Series is designed especially for security automation applications such as IP surveillance and entry system gates, which can benefit from a scalable backbone construction and PoE.
Additional Features and Benefits
Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
Command Line Interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
Port Trunking for optimum bandwidth utilization
TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
Lock port function for blocking unauthorized access based on MAC address
SNMPv1/v2c/v3 for different levels of network management
RMON for efficient network monitoring and proactive capability
Bandwidth management to prevent unpredictable network status
Port mirroring for online debugging
Automatic warning by exception through e-mail, relay output
