| Key Features
|
Intel® Alder Lake-S LGA1700 CPU, 3*LAN, 6*USB3.2, 8K DP+4K HDMI , 2*PCIe5.0 X8+2*PCIe4.0 X4?2*2.5”SATA bay, 1000W DC IN 12V.

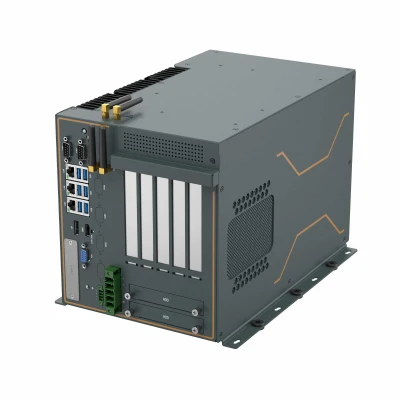

BRAV-7721-S001 is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and four PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply , high efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other fields and applications.
Product Description:
BRAV-7721-S001 is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and four PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply, high-efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicles and high-precision machine vision and other fields and applications.
Specification
| CPU+PCH | Intel® Alder lake-S 12th-Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU?Intel® Q670 PCH |
| Memory | 2*262-Pin SODIMM, dual channel DDR5 4800MHz, up to 64GB |
| Expansion | 1*Full size Mini PCIe (PCIeX1+USB signal) with SIM slot, for 4G LTE modem or PCIe signal I/O module 1*Full size Mini PCIe (PCIeX1 or SATA signal), automatic detection of SATA signal and PCIe signal 1*M.2 B-Key 3052 (PCIeX1+USB signal) with a SIM slot, support 5G NR modem 1*M.2 2280 M-Key (Gen4, X4 signal, from PCH), support NVME high-speed SSD or PCIe signal module 2*PCIe X16 (Gen5, X8 signal, from CPU), support two highest power consumption 450W GPU card or AI acceleration card (the length of the card must be less than 300mm) 2*PCIe X16 (one is Gen4 and the other is Gen3, X4 signal, from PCH), support 2*75W consumption AI acceleration card (the length of the card must be less than 300mm) |
| Graphics | Intel® UHD Graphics, Supports DirectX 12, OpenGL 4.5?OpenCL 3.0, DP max res. 7680*4320@60Hz,HDMI max res. 4096*2160@60Hz, VGA max res. 1920*1200@60Hz, support three independent displays |
| Audio | Realtek ALC897 controller, Line out and MIC high fidelity audio, support 5.1 channel |
| LAN | 2*Intel I226V 2.5G Gig. Ethernet, PCIeX1 full bandwidth, 10M/100M/1000M/2.5Gbps; 1*Intel I219LM Gig. Ethernet, 10/100/1000Mbps, support iAMT12.0 and vPro (only Core I5/I7/I9 CPU) |
| Storge | 2*2.5 "SATA3 easy-plug SATA bays, larger capacity thickness15mm HDD, support Raid0/1; 1*M.2 2280 M-key(Gen4, PCIeX4 signal), support NVMe ultra-high speed storage; 1*Full size Mini PCIe (PCIeX1 or SATA signal) automatically detects mSATA |
| DIO | Optional 16bit DIO, TTL signal, programmable input/output |
| I/O Interface | 3*RJ45 Gig-LAN; 4*USB3.2(gen2.0 10Gbps, Type A,); 2*USB3.2(gen1.0 5Gbps, Type A); 2*RS232/422/485(via BIOS, DB9 male); 1*VGA+1*DP+1*HDMI; 1*Line out+1*Mic (3.5mm phone jack)? 2*USB2.0(pin header inside); 16bit DIO (2*10pin header inside); 1*F_Audio (pin header inside) |
| I-port | Support 16bit DIO pin header lead wire , USB2.0 or Mini PCIe and other expansion interfaces lead wire |
| LED | 1*Power LED(on power button), 1*HDD LED, 3*CPU temp LED?Red is warning , Yellow is high, Green is normal? |
| Control SW | 1*Power button w/LED, AT/ATX dip, Clear Cmos dip |
| Power Supply | DC IN 12V, 5-pin 7.62mm Term., with short circuit(SCP) and overcurrent(OCP) protection, maximum output power 1000W TDP: TBD |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Support | Windows 11?Windows 10 IoT Enterprise 2021 LTSC, Ubuntu, SuSe, Red Hat Enterprise, Wind River Linux, Wind River VxWorks 7 |
| Structure | SGCC frame, Aluminum-magnesium alloy chassis, temperature control by PWM fan |
| Color | Granite gray + Black |
| Mounting | Desktop Mounting, with anti-vibration rubber pads |
| Dimension | (W*H*D)?245*376.8*254.8 mm |
| Net weight | TBD |
| Operating temperature | -20??60?, airflow |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~95%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
| Certification/EMC | CE/FCC Class A |
