| Key Features
|
NVIDIA Jetson AGX Orin 32/64GB, 5*LAN, 2*USB3.2, 2*USB2.0, 4*COM, 2*CAN, 1*16-bit DIO, 1*HDMI, Time SYNC, DC 9~36V

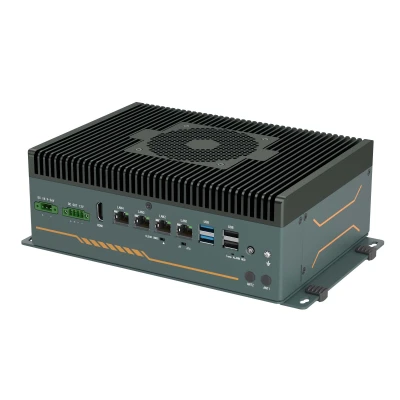

BRAV-7131 is equipped with NVIDIA Jetson AGX Orin 32/64GB module, 8/12 cores ARM CPU and high-performance GPU, up to 200/275TOPS AI performance, onboard 32/64G memory and 64G storage, multichannel IO and clock synchronization, DC 9-36V wide voltage power supply. It can be used as MEC(Multi-Access Edge Computing) for intelligent transportation, machine vision, intelligent logistics and other industries.
Product Description:
BRAV-7131 is equipped with NVIDIA Jetson AGX Orin 32/64GB module, 8/12 cores ARM CPU and high-performance GPU, up to 200/275TOPS AI performance, onboard 32/64G memory and 64G storage, multichannel IO and clock synchronization, DC 9-36V wide voltage power supply. It can be used as MEC(Multi-Access Edge Computing) for intelligent transportation, machine vision, intelligent logistics and other industries.
Specification
| CPU | 8*Cores Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2+4MB L3, maximum frequency 2.2GHz(S001); 12*Cores Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2+6MB L3,maximum frequency 2.2 GHz(S002) |
| GPU | 1792*Cores NVIDIA Ampere Architecture GPU 930MHz, with 56*Tensor Cores(S001) 2048*Cores NVIDIA Ampere Architecture GPU 1.3GHz, with 64*Tensor Cores(S002) |
| DL Accelerator VS Accelerator | 2*NVDLA v2, PVA v2.0, AI performance up to 200(S001)/275(S002) TOPS(INT8) |
| Memory | Onboard 32GB(S001)/64GB(S002) 256-bit LPDDR5, the maximum bandwidth up to 204.8GB/s |
| Expansion | 1*Full size Mini PCIe, with SIM card slot, PCIe X1 + USB2.0 signal, support 4G LTE ,Ethernet port or CAN port and other function modules; 1*M.2 3052 B-key, with SIM card slot, PCIe X1 + USB2.0 signal, support 4G LTE or 5G NR wireless function module; 1*M.2 2280 M-Key , PCIe X4 signal, support NVMe high-speed memory card or edge AI computing module; 1*M.2 2230 E-Key , PCIe X1 + USB2.0 signal, support gigabit bandwidth WiFi6/BT5.0 |
| Graphics | Video code : (H.265)H.264, AV1:1 *4K60,3*4K30,6*1080p60,12*1080p30 (S001);2*4K60,4* 4K30,8*1080p60,16*1080p30 (S002); Video decode : (H.265)H.264, VP9, AV: 1*8K30,2*4K60,4*4K30,9*1080p60,18*1080p30(S001); 1*8K30,3*4K60,7*4K30,11*1080p60,22*1080p30(S002); The highest resolution of HDMI 2.0 is 4096*2304@60Hz |
| Audio | Realtek ALC564, support stereo channel output |
| LAN | 5*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps?supports WOL |
| Storge | Onboard 64GB eMMC 5.1?optional 1*2.5”HDD/SSD SATA bay, up to 6Gbps? 1*M.2 Type 2280 M-Key?PCIeX4 signal, support NVMe high-speed memory card; 1*Micro SD card |
| Clock synchronization | 1*SYNC IN and 1*SYNC OUT, support network and GPS/BDS clock timing |
| DIO and serial port | 8-bit 2.5KV Iso. DI (TTL signal), 8-bit 2.5KV Iso. DO (TTL signal); 2*2.5KV Iso. RS485, max baud rate 115200Hz; 2* Non-isolated RS232, max baud rate 230400Hz |
| I/O Interface | Front I/O: 4*RJ45; 1*HDMI; 2*USB3.2(Gen2 10Gbps, Type A); 2*USB2.0 (Type A); Rear I/O: 1*Line out; 1*RJ45; 2*RS485(2*DB9 male)+2*RS232(2*DB9 male); 2*Iso. CAN (1*DB9); 1*16-bit Iso. DIO (2*10pin Phoenix terminal); 1*SYNC IO (2*5pin Phoenix terminal); 1*I-port ? Side I/O: 1*SIM card slot; 1*SD card slot |
| I-port | Supports inside M.2 and Mini PCIe modules expansion interfaces lead wire |
| LED | 1*Power LED(on power button), 1*HDD LED, 1*CPU temp warning LED |
| Control SW | 1* Power button w/LED, 1*RST button, 1*REV button?AT/ATX SW |
| Power Supply | DC 9~36V wide power input, 3-pin 3.81mm terminal block?with short circuit, over voltage and over current protection?TDP: 50.4W DC 12V output up to 3A, 4-pin 3.5mm terminal block |
| OS Support | Linux Ubuntu 18.04 and 20.04 with JetPack |
| Structure | Aluminum-magnesium alloy chassis, fan Cooling, SGCC frame |
| Color | Granite gray + Graphite black |
| Mounting | Desktop Mounting with anti-vibration rubber pads |
| Dimension | (L*W*H)?Main box: 220*168*80mm?Including mounting bracket?256.4*168*86.5mm |
| Net weight | 3.25KG |
| Operating temperature | -20??60?, airflow |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~90%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
| Certification /EMC | CE/FCC Class A |
