VigorAP 903

Business Access Point with Mesh Technology

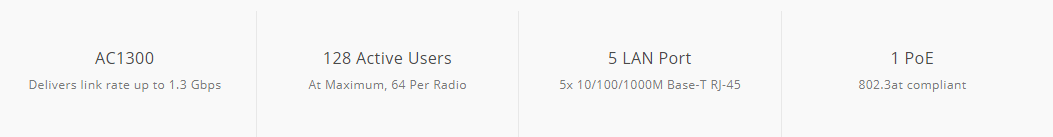

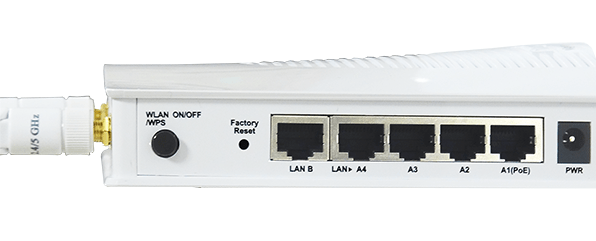

VigorAP 903 is 11ac Wave 2 dual-band wireless mesh access point with a 5-port LAN switch, which port A1 supports 802.3at PoE-In.

VigorAP 903 provides the flexibility and advanced features for professional users to take full management of the wireless network, including the mesh technology, which aims for providing an easy way to expand the wireless network in minutes.

Key Features

	Mesh (Wireless model only) Easily link to other VigorAP to expand the wireless network.		Assisted Wi-Fi Roaming Solve the sticky client problem and improve Wi-Fi roaming experience.
	Multiple SSID Mapping Wi-Fi clients to different VLANs and have a different set of security standards.		Wi-Fi Scheduling Schedule Wi-Fi On and Off to control wireless access and save energy.
	Airtime Fairness Equalize the transmission time of each client so the legacy devices won't slow everyone down.		Local RADIUS Server User profile database for local and external 802.1x authentication.
	Band Steering Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.		Central AP Management Manage, maintain, and monitor VigorAP 1060C from the DrayTek routers.

11ac Wave 2 Technology

VigorAP 903 supports MU-MIMO for high density applications

AP-assisted Roaming

Making Transmission Effective

Disassociate the Wireless clients who are out of the effective transmission range
defined by custom Basic Rate or/and RSSI threshold, and force them to pick up
another access point with a stronger signal.

Resource Saving

Proactively kick out the clients with a low basic rate or low RSSI can prevent the
access points trying to do ineffective transmission but saving the airtime, which
will results in better WLAN experience for all.

No Controller Required

Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless
routers. They operate without a wireless controller, providing an ideal solution for
simple network deployment.

Stronger Signal Guaranteed

By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same
local subnet will exchange client information with each other, providing the choice
to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.
