Pro Performance AP with Pro Management

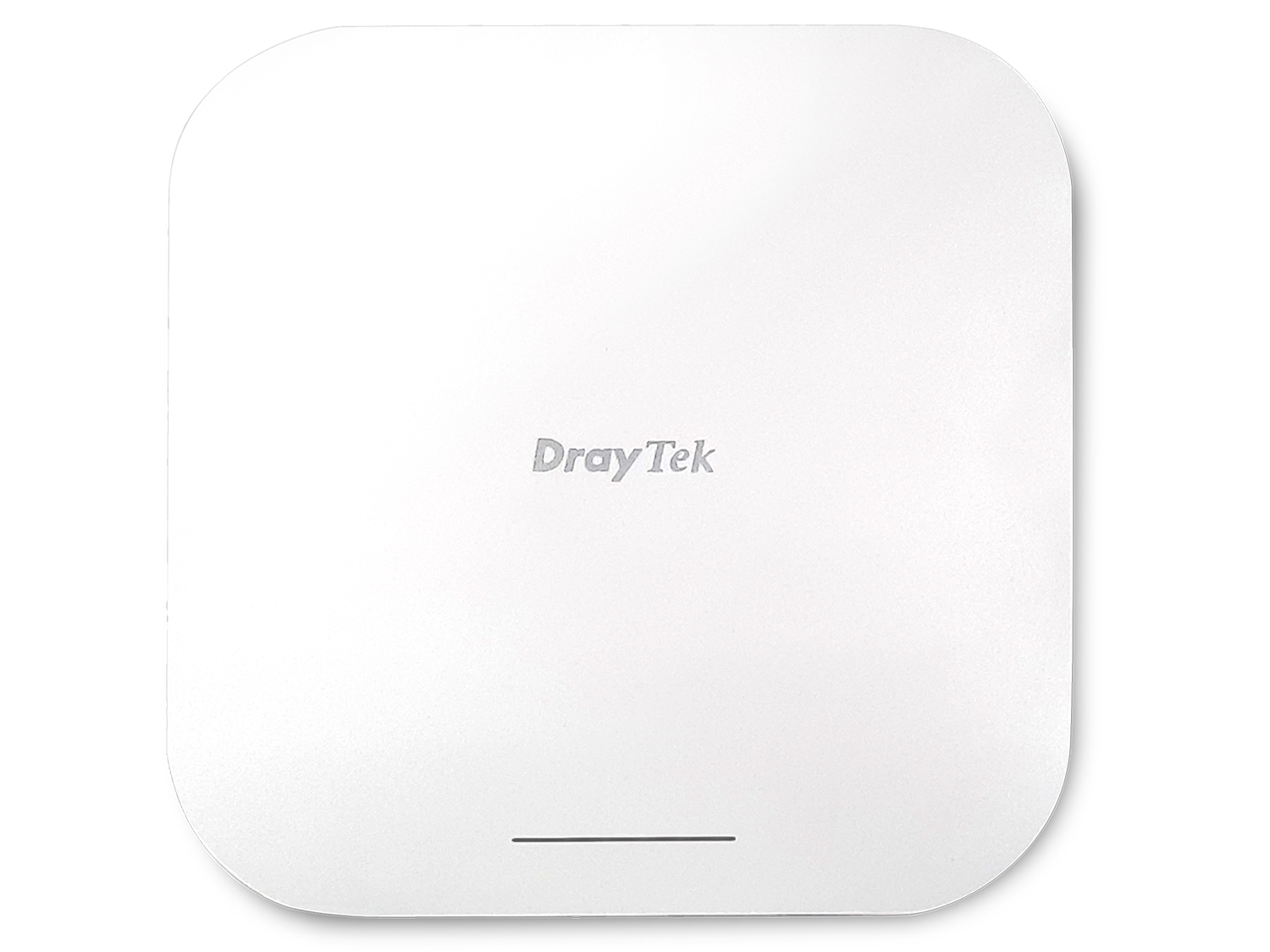

VigorAP 1060C is the most powerful wireless AP we’ve ever made. With 3.6 Gbps aggregated max link rate, it’s suitable for high density environments. It can be cloud-managed by VigorACS, and also act as the master AP to manage up to 50 node VigorAPs in LAN.

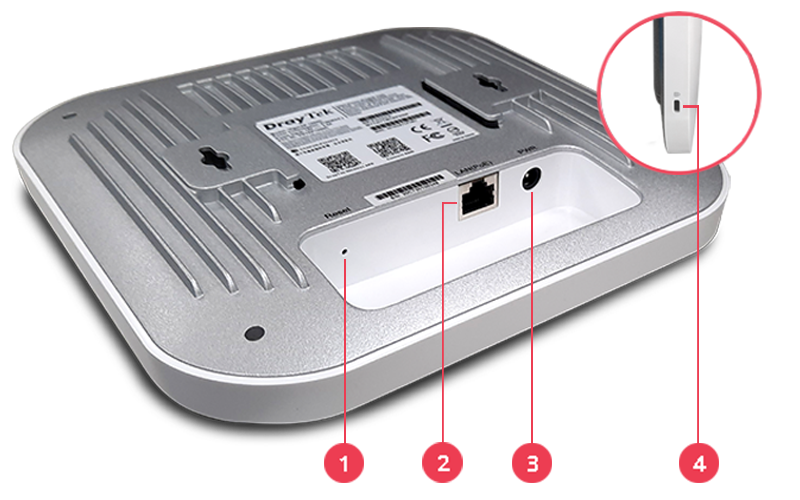

Interface
| 1. Factory Reset Button 2. LAN?2.5G/1G/100M/10M Base-T RJ-45 PoE-PD Support 3. DC Power Input 4. Security Lock |
Key Features
| Mesh (Wireless model only)Easily link to other VigorAP to expand the wireless network. | | Assisted Wi-Fi RoamingSolve the sticky client problem and improve Wi-Fi roaming experience. |
| PoE Power SupplySimplify the infrastructure by getting data and power through a single cable. | | Wi-Fi SchedulingSchedule Wi-Fi On and Off to control wireless access and save energy. |
| Multiple SSIDMapping Wi-Fi clients to different VLANs and have a different set of security standards. | | Local RADIUS ServerUser profile database for local and external 802.1x authentication. |
| Airtime FairnessEqualize the transmission time of each client so the legacy devices won't slow everyone down. | | Hotspot Web PortalMarket your business and communicate with the guests while offering hospitality WLAN. |
| Band SteeringRedirect 5GHz-capable devices to the 5GHz radio to get a faster speed. | | Central AP ManagementManage, maintain, and monitor VigorAP 1060C from the DrayTek routers. |
Utilize Transmission Opportunity with OFDMA
OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.
Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.
OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.
OFDM
| OFDMA
|
Third Radio for RF Analytics & Security

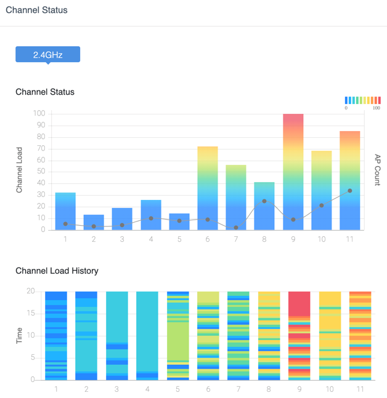

RF Analytics & Auto ChannelVigorAP 1060C with a dedicated third radio is able to constantly monitor on all channels for airtime availability and channel utilization. It will always show the 3 best quality channels for Admin’s selection.
| Wireless Security with WIDSThe radio can also keep monitoring on rouge AP. When detecting unknown AP broadcasting the same SSID, VigorAP 1060C can notify network admin for further action.
|
Client Management with Captive Portal

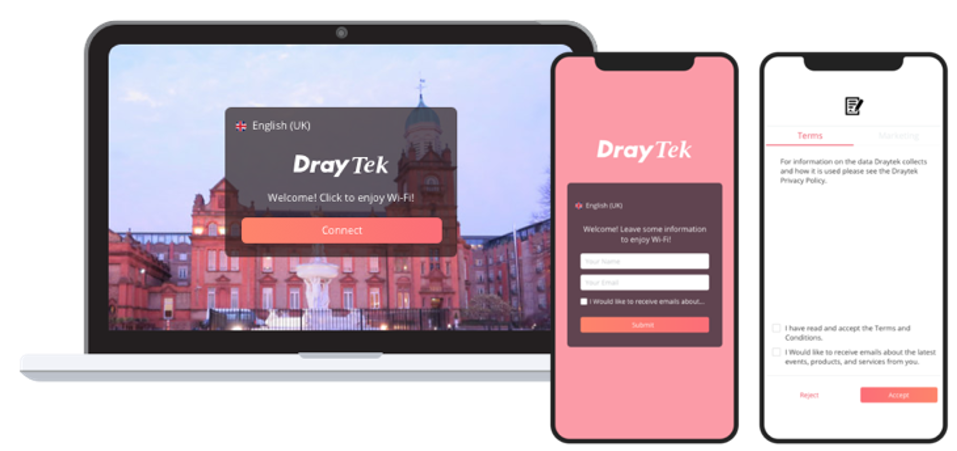

Hotspot with External Captive Portal ServerWorking as NAS (network access server), VigorAP 1060C supports the 802.1x standard. It can redirect new clients to the designated portal server to go through the hotspot login process and receive corresponding RADIUS attributes and perform bandwidth limit and time limit accordingly. This function is ideal for retail, restaurants, coffee shops, and hospitality to do WiFi marketing and learn more about their clients. | |
Mobile Device Management
Station List and Allow/Block ListThe VigorAP records associated devices with signal strength, airtime, link rate, data usage, etc. Network admin can track clients connectivity and activities history on this single panel. If spotting suspicious activities, allow/block policies can also be made right away by MAC or device type. | |
AP-assisted Roaming
| Making Transmission EffectiveDisassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal. Resource SavingProactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all. No Controller RequiredAssisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment. Stronger Signal GuaranteedBy using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby. |
Root AP for AP Management
VigorAP 1060C is capable of working as the Root AP and manage up to 50 Node APs within the same LAN subnet.
| Top-Level Root APAP Management can work alongside with Mesh in a more top-level manner. Root AP can manage wired APs which operate in either AP mode or Mesh Root mode. After receiving provision from Root AP, Mesh Root can then synchronize configuration with its mesh members accordingly. In small installation within 8 APs, Mesh with wired and wireless nodes is handy; while in larger installation, hybrid solution with AP management and Mesh is more competent. Retain High PerformanceUnlike the performance decay brought by mesh wireless uplink, Node AP with wired uplink constantly provides high performance experience, and thus we always suggest to use wired uplink when possible. Zero Touch DeploymentAfter auto-detecting and adding Node AP into management list, Root AP will provision relevant AP configurations to node APs. Node AP MonitoringNode APs are presented with IP address, operating channel, SSID of each radio, number of clients, and firmware version all in one page, and the AP offline can be easily spotted. |
Three Modes in One
AP Mode | Range Extender | Mesh |

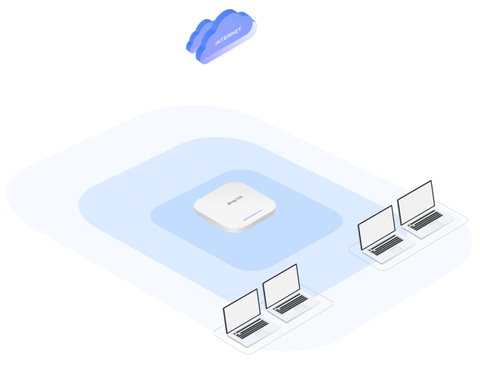

- The mode mostly used
- VigorAP acts as a bridge
between wireless devices and wired Ethernet network, and exchanges data between them.
|
- VigorAP act as a wireless repeater
- It can be a Station and an
AP at the same time
|
- Wirelessly connect 1~8 APs, and form
a Mesh Group - A mesh network creates a set of links
automatically and calculate the most optimal wireless path through the wireless network back to a wired Mesh Root.
|
Pros | Pros- Compatibility among different brands
- Extend wireless coverage
| Pros- Easy installation
- Self-healing uplinks
- Extend wireless coverage
|
Cons- Limited wireless coverage
- Require physical wire to connect to the Ethernet
| Cons- No self-healing uplinks
- Need to install and check manually
- Performance decay
| Cons- No compatibility among different brands
- Performance decay
|
Management Solution
All-in-One Management
| | |
- DrayTek Wireless app-support
- Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
| VigorAP-based APM- Discovery
- Auto-Provisioning
- Monitoring
| - Auto-Discovery
- Profile-based Auto-Provisioning
- Monitoring
- Centralized View
- Remote VigorAP Maintenance
- WiFi Client Load Balancing
|
Software Management
| | |
- Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot VigorAP Remotely
- Scheduled Maintenance
| - Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot Vigor Devices Remotely
- Scheduled Maintenance
- Report
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
|
