Vigor2962 Series

www.alvasta-tech.com / Enterprises / DrayTeK / Router / All Routers / Vigor2962 Series /

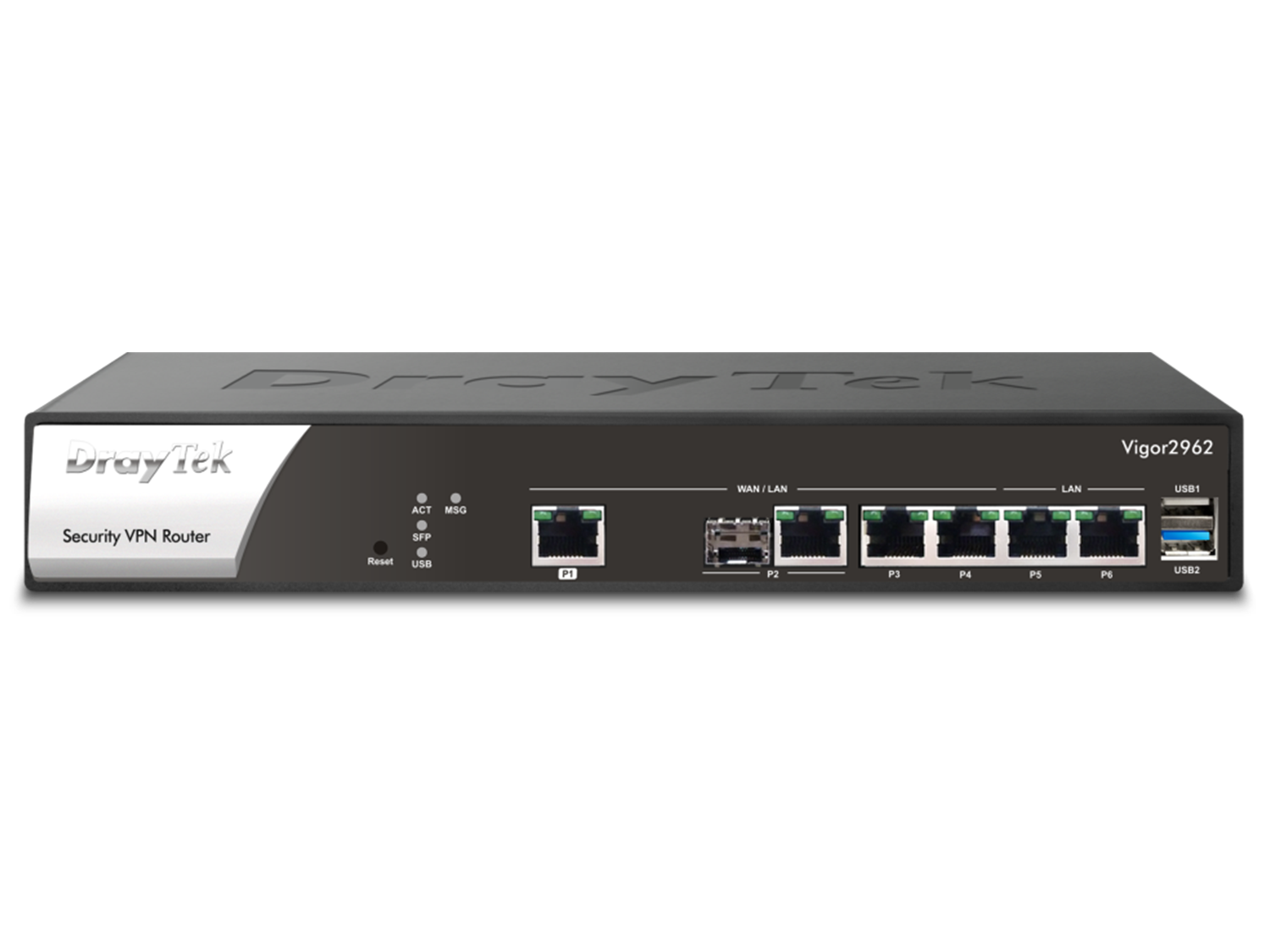

Vigor2962 Series

High Performance 2.5G Router

Vigor2962 Series is a high performance and dynamic firewall router with configurable WAN/LAN ports. With the selection of 2.5GbE port, 1GbE Fiber port, and 2 of 1GbE ports, users can set 2 of the ports as WAN for load balancing/failover purpose and enjoy overall 2.2Gbps NAT throughput. The Vigor2962P model also supports 802.11af/at standard to provide a flexible network deployment, it can supply the power to the connected Access Point, IP Cam, or other PD devices.

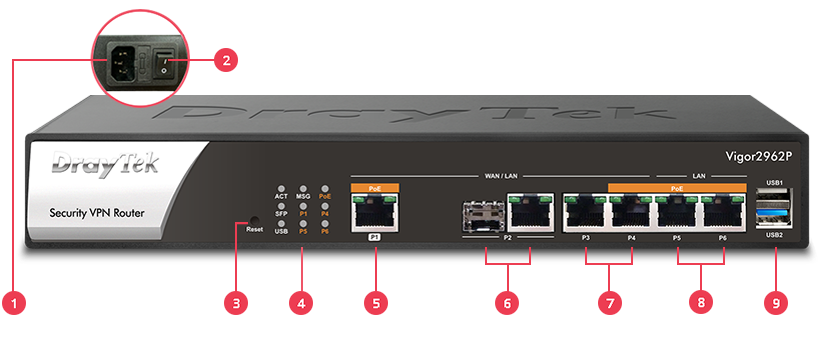

1Power Input

2Power On/Off Switch

3Reset Button

4LED Indicator

51x 2.5G RJ-45*

61x GbE/SFP Combo*

72x GbE RJ-45*

8Fixed LAN Port: 2x GbE RJ-45

91x USB 2.0 & 1x USB 3.0

*Switchable WAN/LAN Port, up to 2 simultaneous WANs.
*P1/P4/P5/P6: PoE-Out ports (P model).

Key Features

	PoE (Power over Ethernet) Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.		Hotspot Web Portal Market your business and communicate with the guests while offering hospitality WLAN.
	Ping Device Check Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.		Bandwidth Management Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
	Load Balancing Maximize throughput and reliability by using multiple Internet connections.		Firewall & Content Filter Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
	VPN (Virtual Private Network) Build a secure and private tunnel from the LAN of Vigor2962 Series to the remote offices and teleworkers over the Internet.		DrayDDNS The free DDNS service for you to access the router by a fixed hostname of your choice.
	SSL VPN The VPN works through firewalls providing secure remote access to any network environment.		Central AP Management Use the Vigor2962 Series router as a wireless controller to maintain and monitor the VigorAPs.

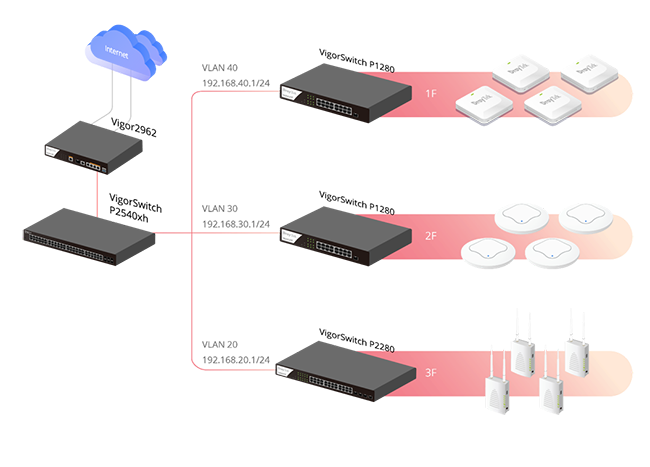

	VPN Matcher Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN.		Central Switch Management Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
	PPPoE Server Use Point-to-Point connection on LAN to keep track of individual user's traffic.

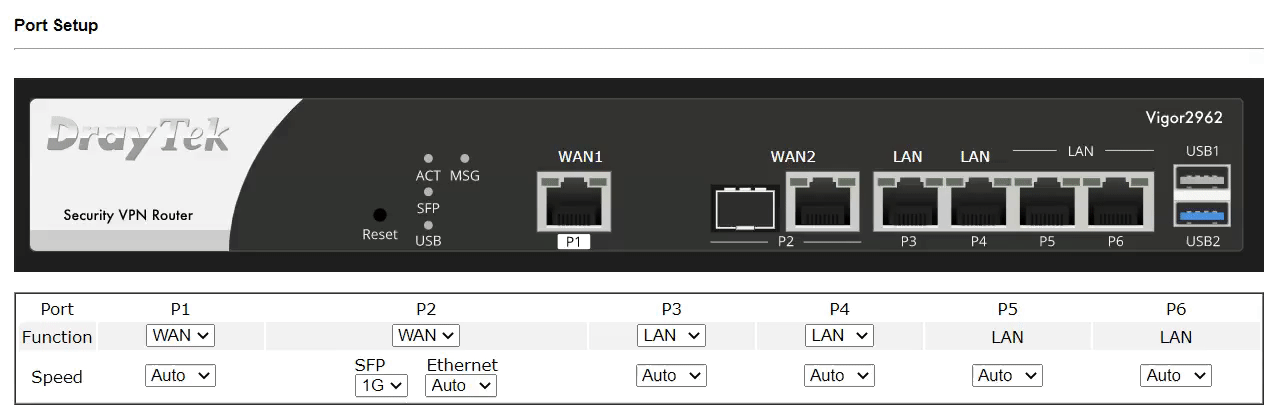

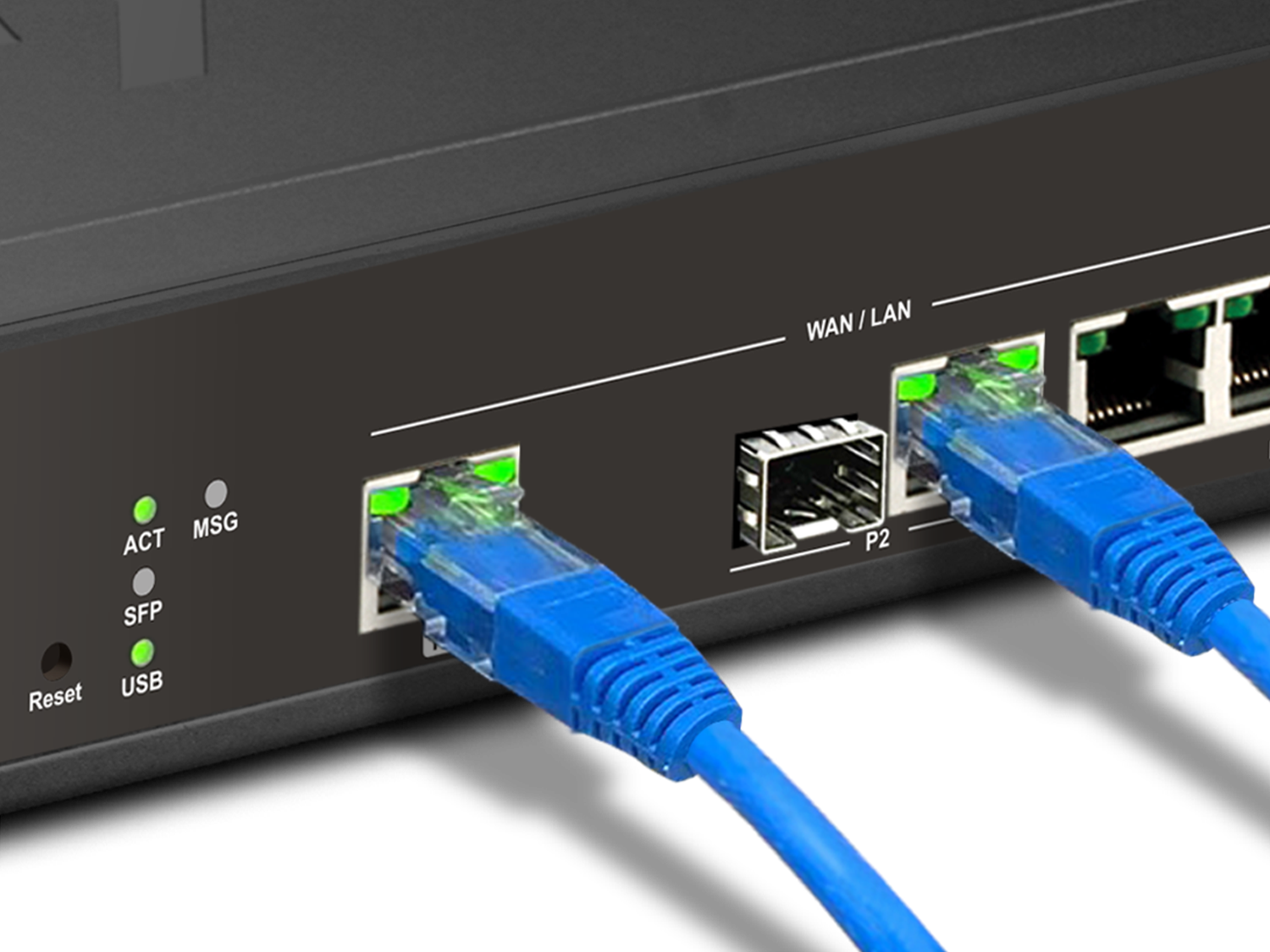

Flexible WAN/LAN Ports

Vigor2962 Series features four configurable WAN/LAN ports, including one 2.5GbE port, one SFP/GbE combo port, and two GbE ports. Two of the four ports can be used as WAN port concurrently. Dual WAN for load balancing/failover improves Internet resilience of your business.

Hotspot Web Portal

Market your business while offering free WLAN

WLAN Marketing

Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.

Grow Your Email List

Require the guest to leave contact info or social media accounts before they can use the Internet service.

Various Authentication Type

A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

3rd-Party Service Compliant

Supports external captive portal authentication. You can keep using the WLAN marketing solution you like.

Quota Management

Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.

All-in-One Management

A management platform for Vigor devices on the LAN side and offer simple and massive deployment.

Automatic Device Discovery

Automatically discover LAN subnets and add detected VigorSwitch/AP into managed list.

Provisioning

Most-frequent used settings can be pre-defined on the Vigor Router, and provision to the managed VigorSwitch/AP.

Monitoring

Vigor Router provides a centralized view of managing devices, you may always check if the managed Vigor Switch/AP is online.

System Maintenance

You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.
