The Ultimate DSL Router for SMBVigor2866 Series is a dual WAN firewall router. It has one G.fast supported DSL WAN, delivering fiber-like speed up to 1 Gbps, and one configurable Ethernet WAN. The built-in DSL modem is backward compatible with VDSL2 profile 35b supervectoring and ADSL2+. Vigor2866 Series provides load-balancing and failover for your business continuity. Featuring VPN, QoS, route policy, firewall, content filtering, bandwidth management, captive hotspot portal, and a lot more, this is the ultimate DSL router that does it all for SMB. The series includes built-in 802.11ax wireless models. | |
*ax model only

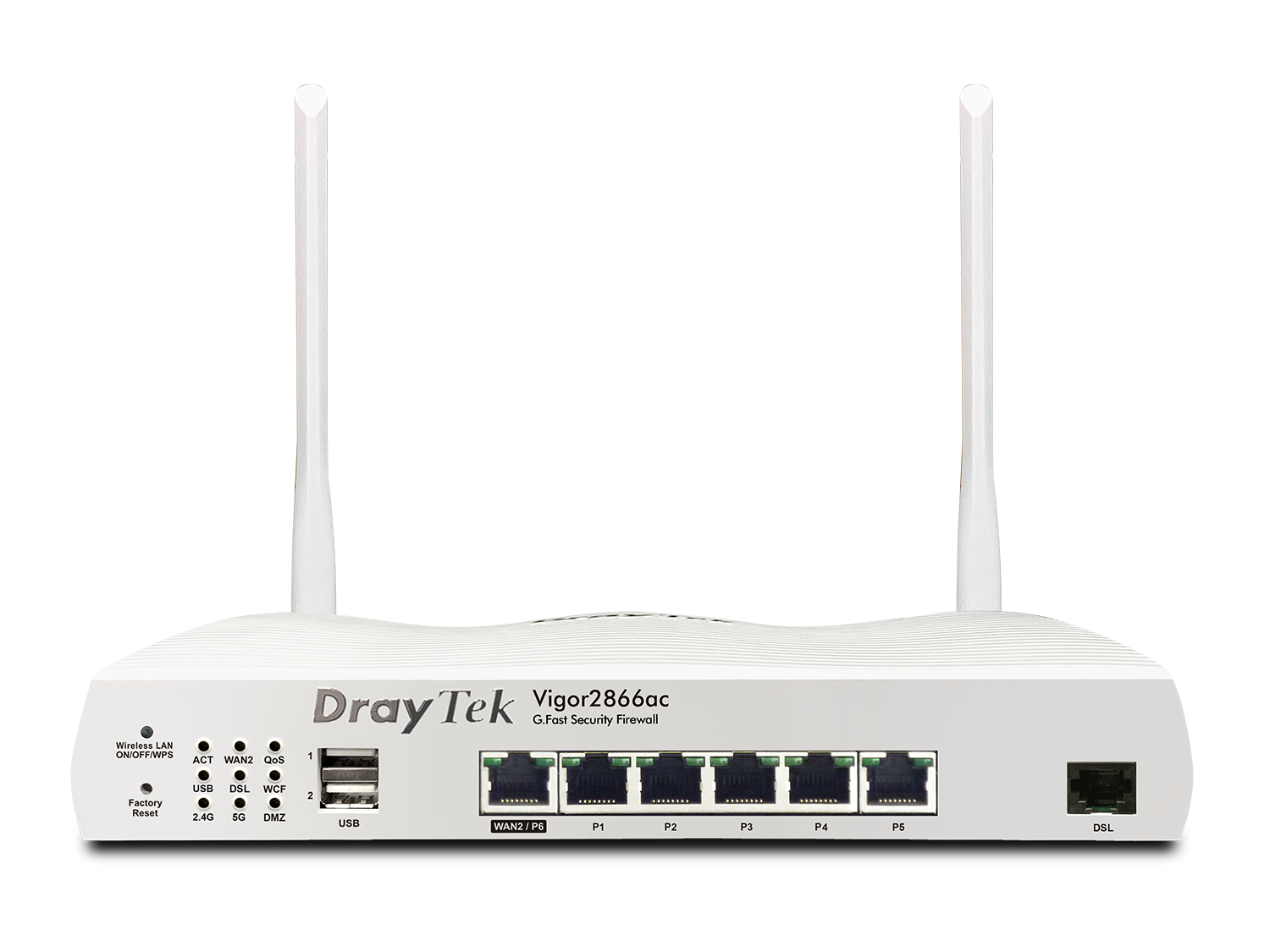

1. Wireless Antenna (ac/ax model) 2. Reset Button 3. WLAN/WPS Button (ac/ax model) 4. LED Indicator | 5. 2x USB 2.0 6. LAN/WAN Switchable Port: 1x GbE RJ-45 7. Fixed LAN Port: 5x GbE RJ-45 8. 2x FXS for VoIP (V model) | 9. Fixed WAN Port: 1x RJ-11 for G.fast/VDSL2 35b/ADSL2+ 10. Power On/Off Switch 11. Power Input |
Key Features
| Load BalancingMaximize throughput and reliability by using multiple Internet connections. | | Hotspot Web PortalMarket your business and communicate with the guests while offering hospitality WLAN. |
| G.fast ModemIntegrated VDSL modem, supporting G.fast to deliver fiber-like DSL speed. | | Bandwidth ManagementPrevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings. |
| VPN (Virtual Private Network)Build a secure and private tunnel from the LAN of Vigor2866 Series to the remote offices and teleworkers over the Internet. |
| VoIP FriendlyVigor2866 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. |
| SSL VPNThe VPN works through firewalls providing secure remote access to any network environment. | | Central AP ManagementUse the Vigor2866 Series router as a wireless controller to maintain and monitor the VigorAPs. |
| Firewall & Content FilterFilter web pages by URL keyword or web category to block access to insecure or inappropriate contents. | | Mesh (Wireless model only)Easily link to other VigorAP to expand the wireless network. |
| DrayDDNSThe free DDNS service for you to access the router by a fixed hostname of your choice. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
| Wireless WAN (ac model only)Get Internet access wirelessly from a wireless network, a mobile hotspot, or a personal hotspot set up on smartphones. |
| |
Hardware Acceleration
Without sacrificing traffic control features, such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph, Data Flow Monitor, the accelerator brings great performance.
APP QoS
VoIP FirstVoIP is always with top priority! With default UDP 5060 port (configurable), VoIP QoS is out-of-box ready. Improve Experience for Business-Critical AppsSelect your business critical apps, and easily put them into QoS classes. Flexible Bandwidth AllocationBandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
| |
Management Solution
All-in-One Management
| | |
Mesh (ac model)- Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
| - Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
| - Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized View
- Alarm
- Reboot VigorAP Remotely
- Wi-Fi Client Load Balancing
|
Software Management
| |
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot Vigor Devices Remotely
- Scheduled Maintenance
- Report
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application Based SD-WAN Policy
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
|
