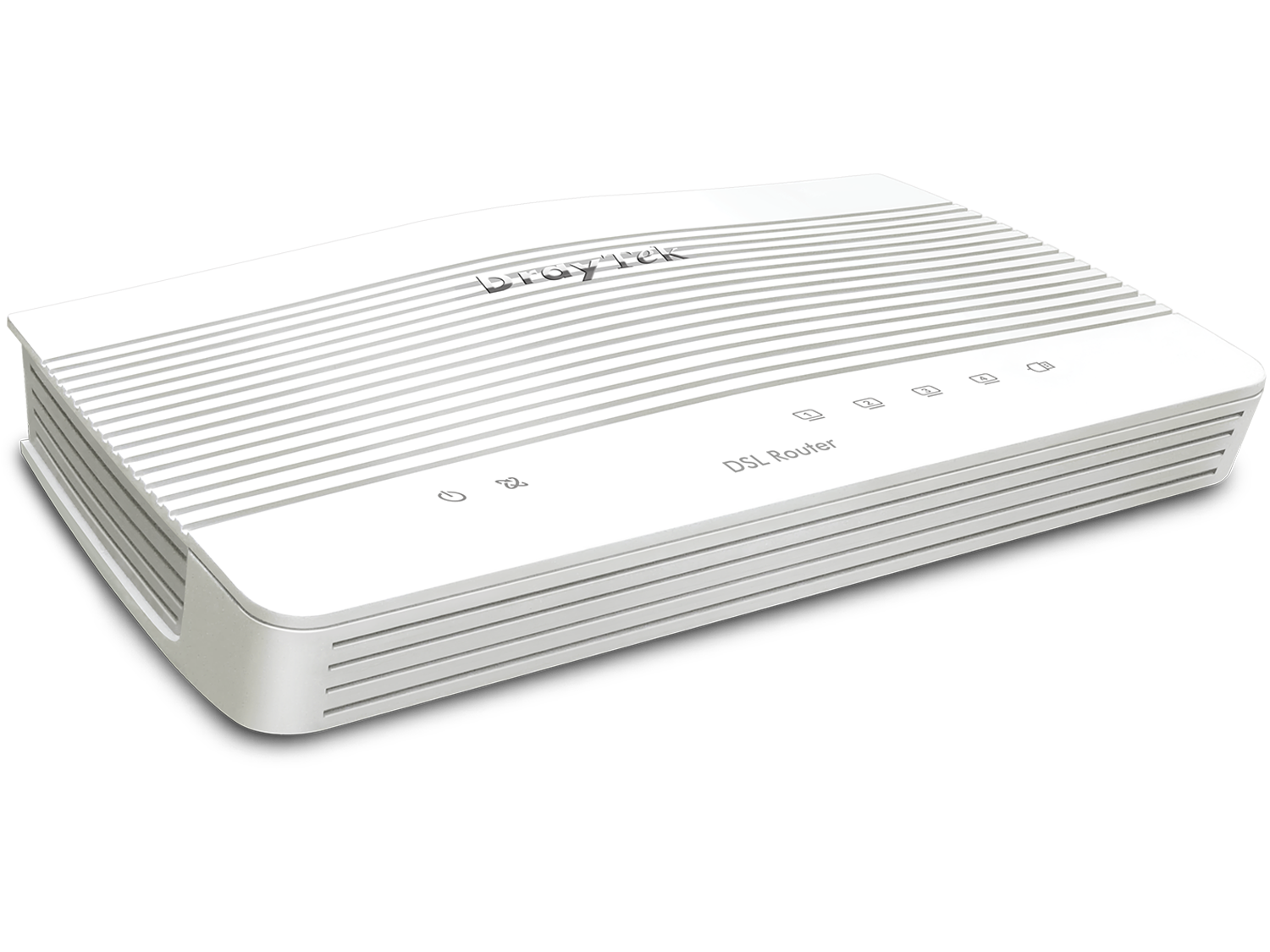

Vigor2763 Series

Vigor2763 Series is a VDSL2/ADSL2+ modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more. The series includes models with built-in 11ac Wave 2 WiFi.

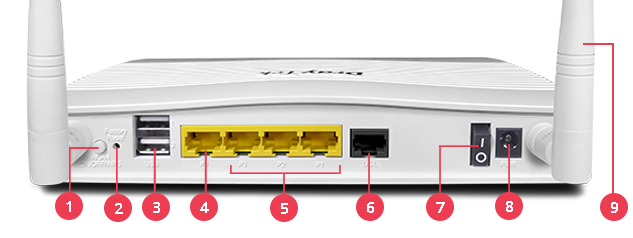

1. WLAN/WPS Button (ac model)

2. Reset Button

3. 2x USB 2.0

4. LAN/WAN Switchable Port: 1x GbE RJ-45

5. Fixed LAN Port: 3x GbE RJ-45

6. 1x RJ-11 for VDSL2/ADSL2+

7. Power On/Off Switch

8. Power Input

9. Wireless Antenna (ac model)

Key Features

	Integrated VDSL2 Modem Vigor2763 Series provides DSL WAN interface and built-in VDSL modem with ADSL2/2+ fallback.		DrayDDNS The free DDNS service for you to access the router by a fixed hostname of your choice.
	VPN (Virtual Private Network) Build a secure and private tunnel from the LAN of Vigor2135 Series to the remote offices and teleworkers over the Internet.		Firewall & Content Filter Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
	VPN Matcher Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN.		Hotspot Web Portal Market your business and communicate with the guests while offering hospitality WLAN.
	SSL VPN The VPN works through firewalls providing secure remote access to any network environment.		Central AP Management Use the Vigor2763 Series router as a wireless controller to maintain and monitor the VigorAPs.
	Bandwidth Management Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.		Mesh (Wireless model only) Easily link to other VigorAP to expand the wireless network.
