Quad-Core Multi-WAN Load Balancing RouterVigor1000B is a high-speed broadband router, features with a powerful quad-core processor, six WAN interfaces, including 2x 10G SFP+ ports for fiber connectivity, and 4x Gigabit Ethernet, RJ-45, provides you with WAN load balancing and NAT throughput up to 9.4 Gbps. All of WAN ports are switchable between WAN and LAN, providing nework Admin with the flexibility to make the most out of the router. In addition, the router has 4x Gigabit Ethernet, RJ-45, as fixed LAN interfaces. Featuring QoS, Hotspot, High Availability, and other enterprise-level functions to make the most out of the router. Vigor1000B can also be a centralized controller for VigorAPs and VigorSwitches to make management easier. |  |

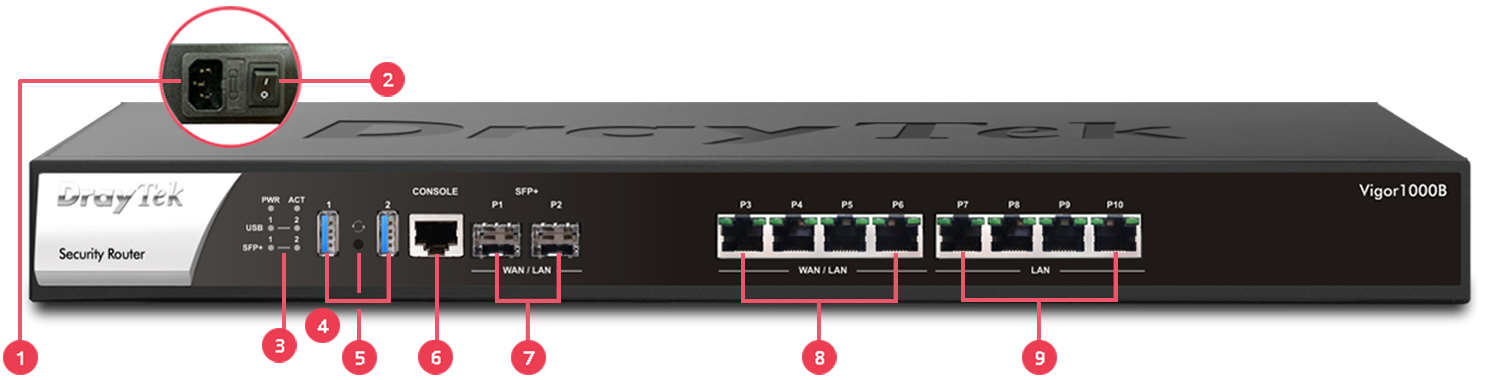

1. Power Input 2. Power On/Off Switch 3. LED Indicator | 4. 2x USB 3.0 5. Reset Button 6. RJ-45 Console Port | 7. 2x 10G/2.5G/1G SFP+ Ports* 8. 4x GbE RJ-45* 9. Fixed LAN Port: 4x GbE RJ-45 |
*Switchable WAN/LAN Port

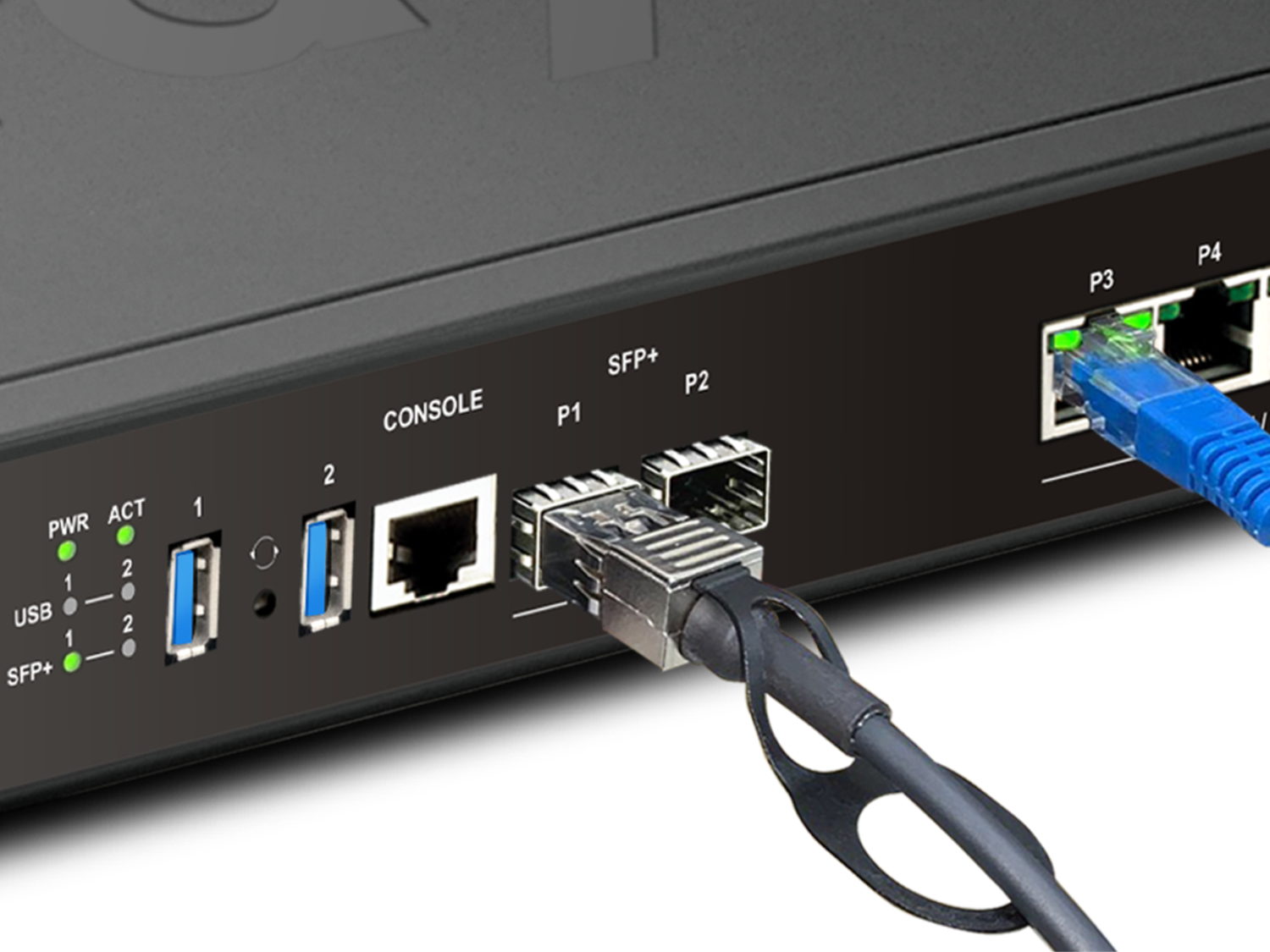

 | 10G SFP+Provides 2x 10G-capable fiber SFP ports for WAN or LAN connection. |  | Firewall & Content FilterFilter web pages by URL keyword or web category to block access to insecure or inappropriate contents. |
 | Load BalancingMaximize throughput and reliability by using multiple Internet connections. |  | DrayDDNSThe free DDNS service for you to access the router by a fixed hostname of your choice. |
 | PPPoE ServerUse Point-to-Point connection on LAN to keep track of individual user's traffic. |  | Central AP ManagementUse the Vigor1000B router as a wireless controller to maintain and monitor the VigorAPs. |
 | Hotspot Web PortalMarket your business and communicate with the guests while offering hospitality WLAN. |  | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
 | Bandwidth ManagementPrevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings. |

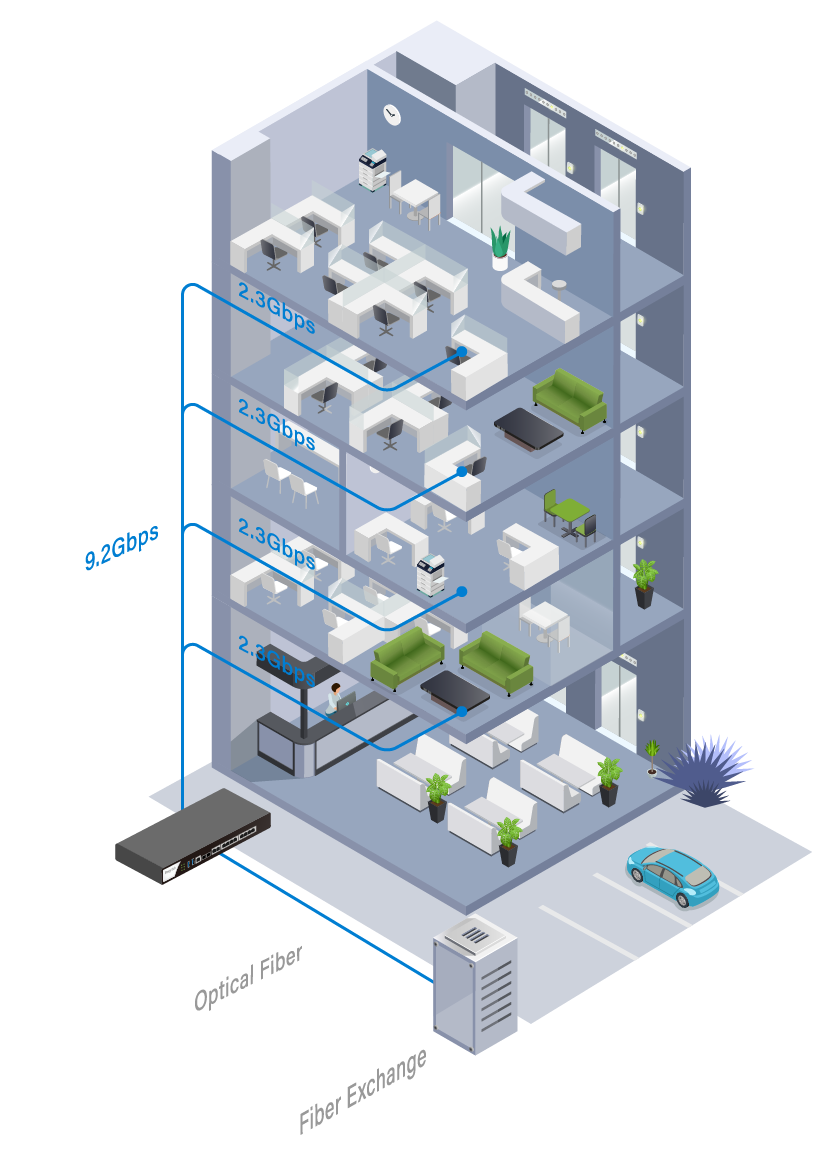

 | Fiber to the Building/HomeAn ideal choice to work with tier 2/3 ISPs and co-working spaces High Performance with 10G SFP+For both NAT and routing network, and for both 10G-WAN and 10G-LAN, Vigor1000B is ready to deliver high throughput to your business. Layer 2 Security with PPPoE Server and VLANWith 200 PPPoE user accounts and 100 VLAN/LAN subnets, Vigor1000B provides up to 9.4 Gbps throughput, and makes subletting network infrastructure secure and easy. |

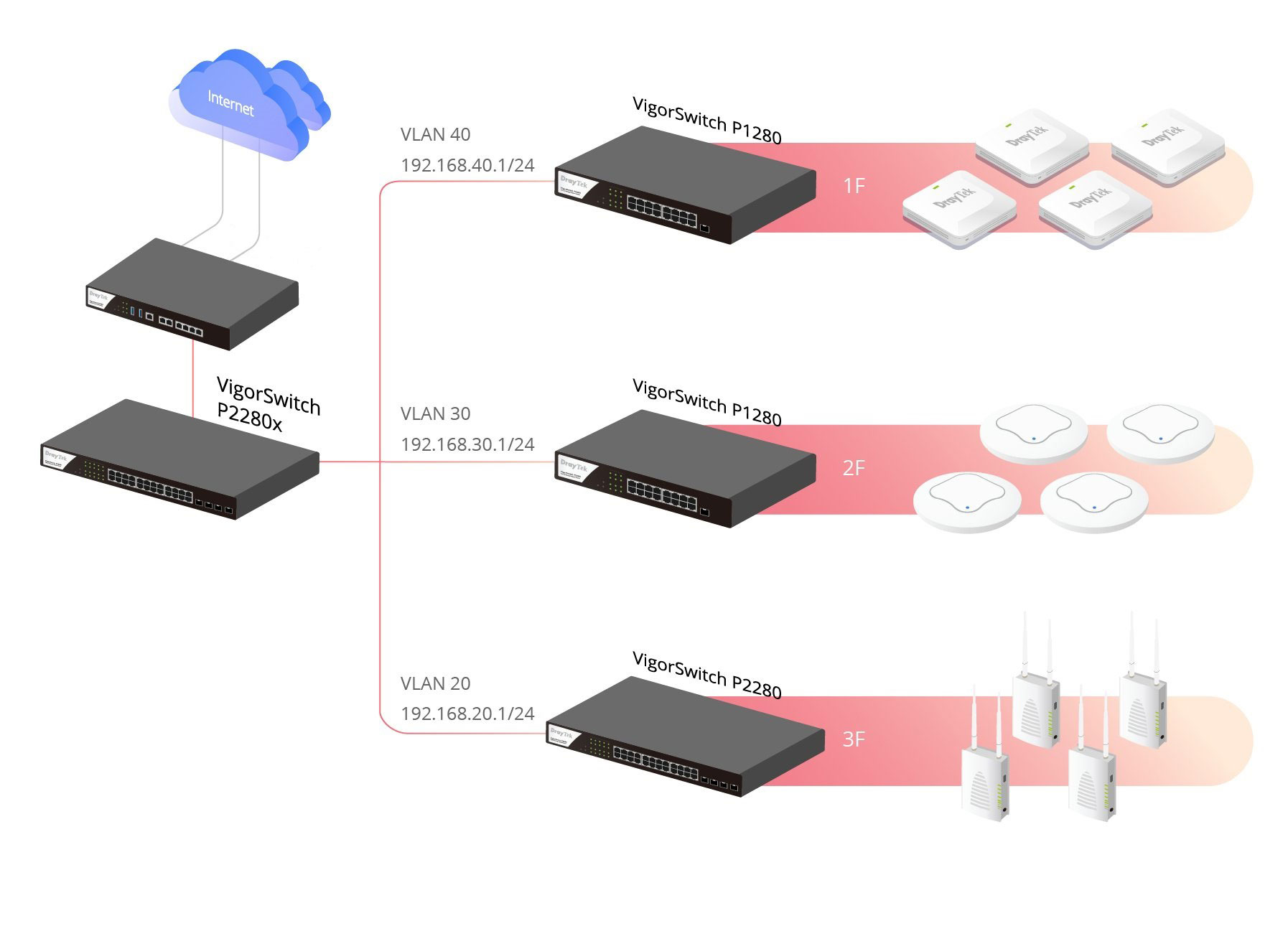

Vigor Router provides a management platform for your Vigor Devices on the LAN
 | Auto-DiscoveryAutomatically discover LAN subnets and add detected VigorSwitch/AP into managed list. ProvisioningMost-frequent used settings can be pre-defined on the Vigor Router, and provision to the managed VigorSwitch/AP. MonitoringVigor Router provides a centralized view of managing devices, you may always check if the managed Vigor Switch/AP is online. System MaintenanceSupport basic maintenance remotely via Vigor Router. Such as remote reboot, factory reset, configuration backup/restore, etc. |
All-in-One Management
 |  |
Vigor Router SWM
|
|
