| MDG230-0G001 • 1x SIM (4FF) • M.2 • 3.3V • -30°C ~ 75°C Datasheet |
Overview
INTRODUCTION

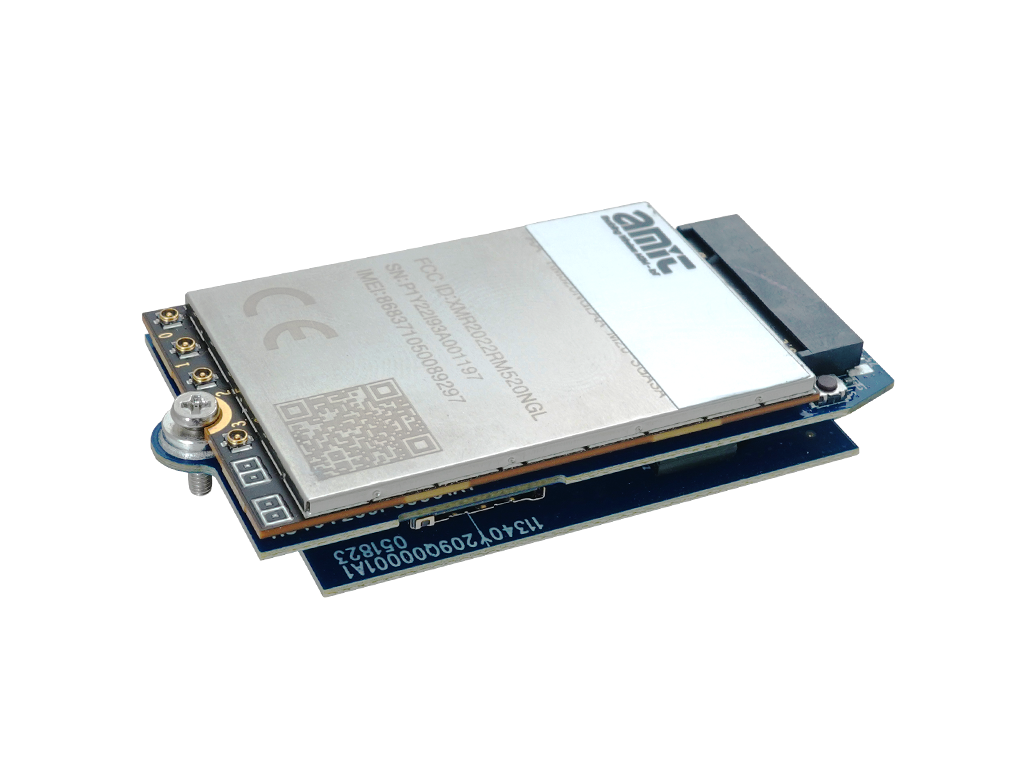

The MDG230 is an embedded 5G modem with USB 3.1 interface through its board-to-board connector. It operates as an Ethernet over USB end device that offers 5G connectivity once a SIM card is inserted and pre-configured through user-friendly web GUI. With its intelligent connection monitoring mechanism, it can provide more reliable 5G connection for mission-critical applications.
BENEFITS
1. Carrier approval* - cost saving and time-to-market
2. Plug and play - Linux kernel 5.0 & Windows 10, or higher version.
3. Flexible SIM selection – support internal SIM / external SIM / dual SIM failover

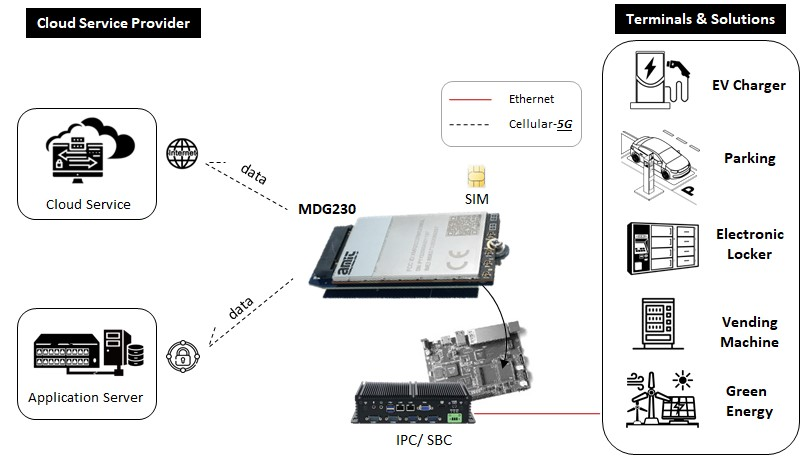

Diagram

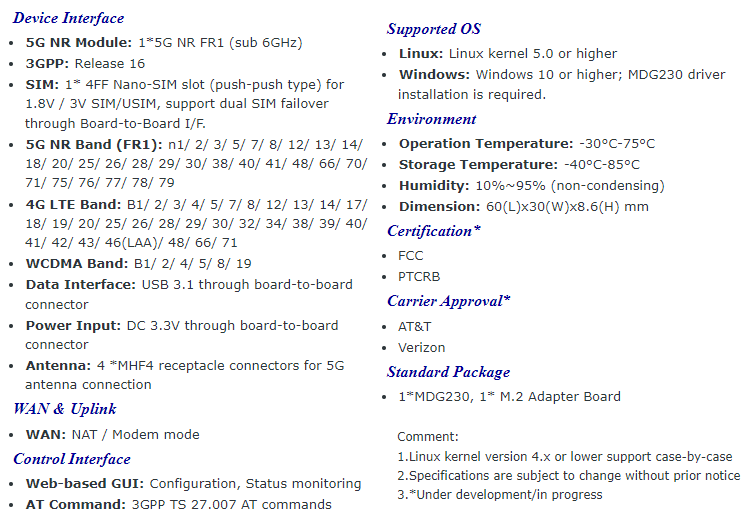

Specifications
