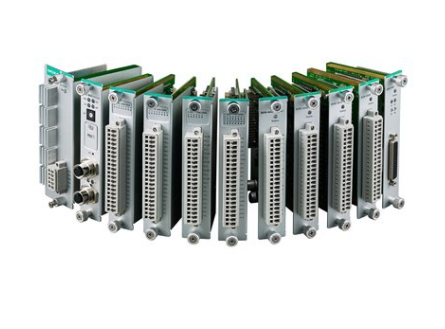

ioPAC 8600 Series (86M) Modules

Features and Benefits  Complies with all EN 50155 mandatory test items   Complies with EN 50121-4  Rugged and compact design for harsh environments  Expand the I/O and communication capabilities of your ioPAC 8600 Series device  Wide operating temperature range: -40 to 75°C (-40 to 167°F)  Channel-to-channel isolated digital input and output  24 to 110 V DI/O module and universal power input range module  Supports CAN bus for CAN 2.0 A/B communication

Introduction

Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.

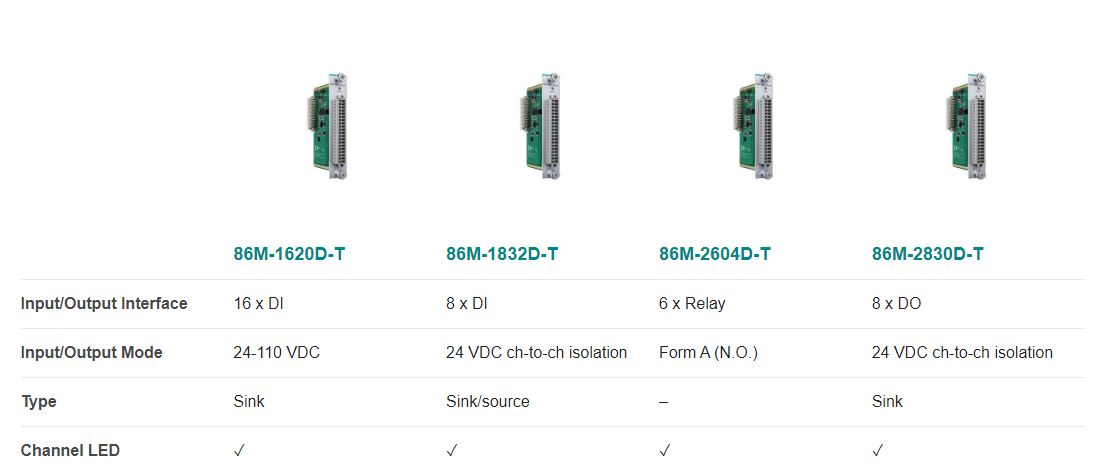

Models

Datasheet
