Distance Extension and High Performance

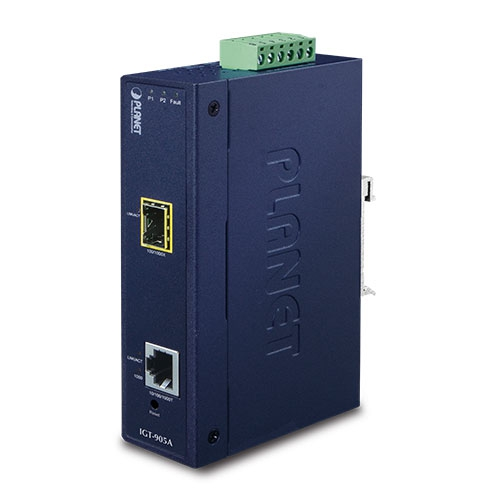

PLANET IGT-905A Industrial Managed Gigabit Media Converter extends communication distance with highly Gigabit performance via fiber optical wire, in which the distance could be extended up to 120km. The IGT-905A is specifically designed with durable components and strong housing to operate reliably in electrically harsh and climatically demanding environments. The IGT-905A provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets in sidewalk. Being able to operate under the temperature range from -30 to 75 degrees C, the IGT-905A can be placed in almost any difficult environment.
Robust Switching Performance
PLANET IGT-905A Industrial Managed Media Converter efficiently supports conversion between 10/100/1000BASE-T and 100/1000BASE-X Ethernet, and offers remote management and monitoring capabilities. The IGT-905A provides the flexibility of operation made possible with all kinds of 10/100/1000Mbps Ethernet media on RJ45 port and offers highly-stable Gigabit SFP fiber performance. It also delivers the dynamic status report and real-time alarm messages that help the network administrator to easily monitor and manage the entire industrial networks.
User-friendly Centralized Web Management Interface
For efficient management, the IGT-905A is equipped with remote Web/SNMP (simple network management protocol) interface. With the built-in Web-based management interface, the IGT-905A acts as an easy-to-use, platform-independent management and configuration facility. It also can be managed via any standard-based management software by supporting the SNMP. Moreover, the IGT-905A can manage the remote client devices by the TS-1000/802.3ah OAM (operation, administration, and maintenance) protocol.
Enhanced Management Features
The IGT-905A can be programmed for advanced management functions such as IP address configuration, DHCP client function, port configuration, converter configuration, 802.1Q tag VLAN, Q-in-Q VLAN, QoS, OAM control, Layer 2 protocol filter, broadcast storm control and Ingress/Egress bandwidth control to enhance bandwidth utilization. The enhanced management features offered by the IGT-905A make it ideally suited for mission-critical and real-time control applications in the Industrial Ethernet networks.
| Ordering Information | |
|---|---|
IGT-905A | 10/100/1000BASE-T to 100/1000BASE-X Industrial Managed Media Converter |
