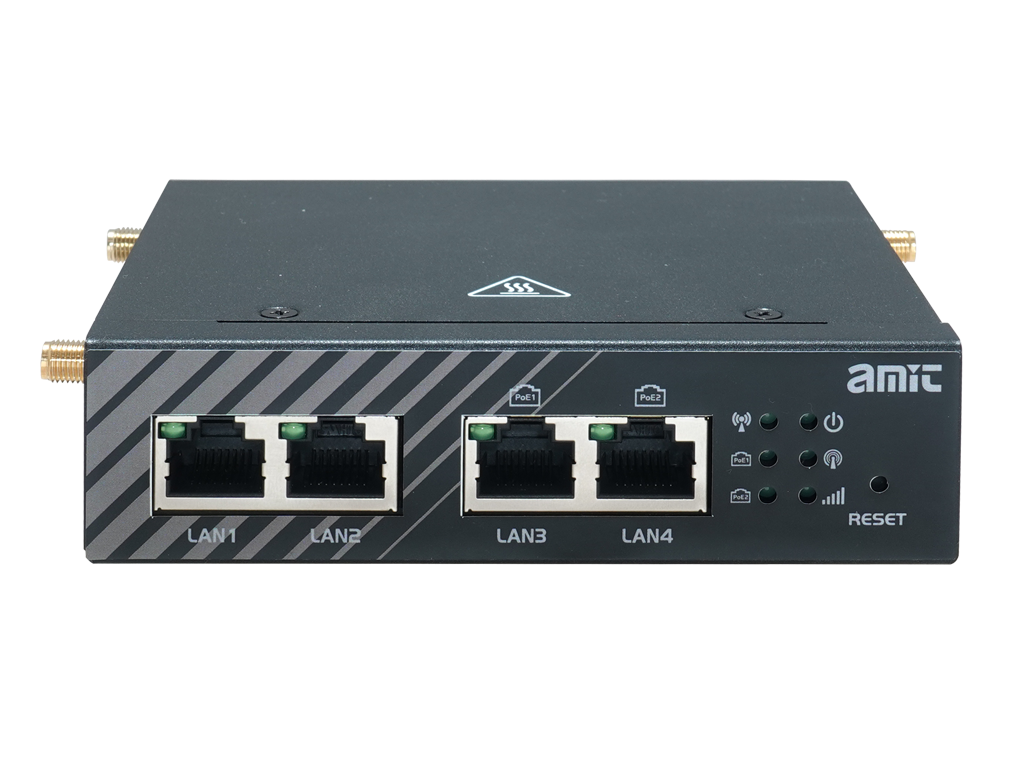

| IDG470-WT0A1 •4G (1*SIM) •4 * RJ-45 FE •WiFi 5 •DC 48~57V in (TB) •PoE-PSE 802.3at Datasheet |
Overview
INTRODUCTION
The IDG470 is a 4G PoE Multi-Connect Modem that includes 4G-LTE cellular capability for wireless uplink / downlink and Ethernet ports with PoE-PSE function. It also includes WiFi function to provide wireless connectivity to IoT terminals.
BENEFITS
1. Eliminating the need for a dedicated CPU not only save component cost but also enhance space efficiency.
2. Easy to deploy power and data links for PDs in one cable.
3. The detecting function shares monitoring tasks for managers.
4. Reduce the likelihood of sudden system crashes in PDs through scheduling rules.
5. Supports the AMIT device management platform – A-NMS.

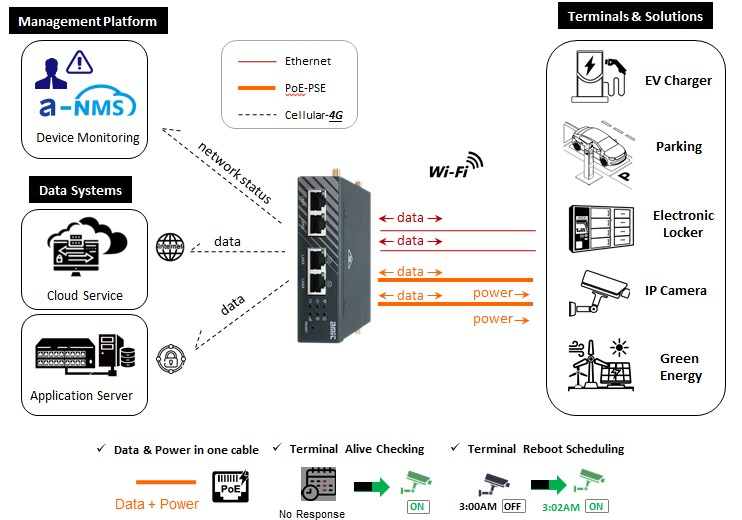

Diagram

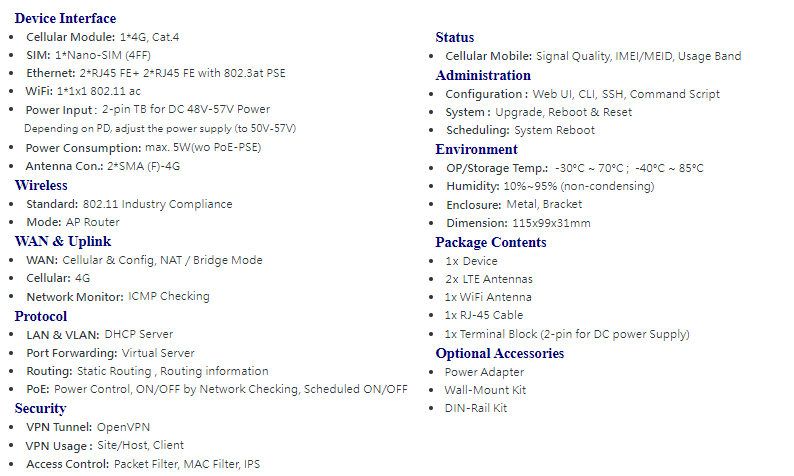

Specifications
Need support, click here
