IDG470-WG001

IDG470-WG001

IDG470-WG001

•4G/5G (2*SIM)
•4 * RJ-45 GE
•DC 48~57V in (TB)
•PoE-PSE 802.3at

Datasheet

Overview

INTRODUCTION

The IDG470- a 5G PoE Multi-Connect Modem with 5G-NR and 4G-LTE dual-mode cellular capability makes wireless uplink / downlink at hand. It also features Gigabit Ethernet ports with PoE-PSE function to extend data easily in various environments.

BENEFITS

1.Easy deployment of PD power and data link in one cable

2.The detecting function shares monitoring tasks for managers

3.Reduce sudden system crashes of PDs through scheduling rules

4.Support AMIT device management platform- A-NMS

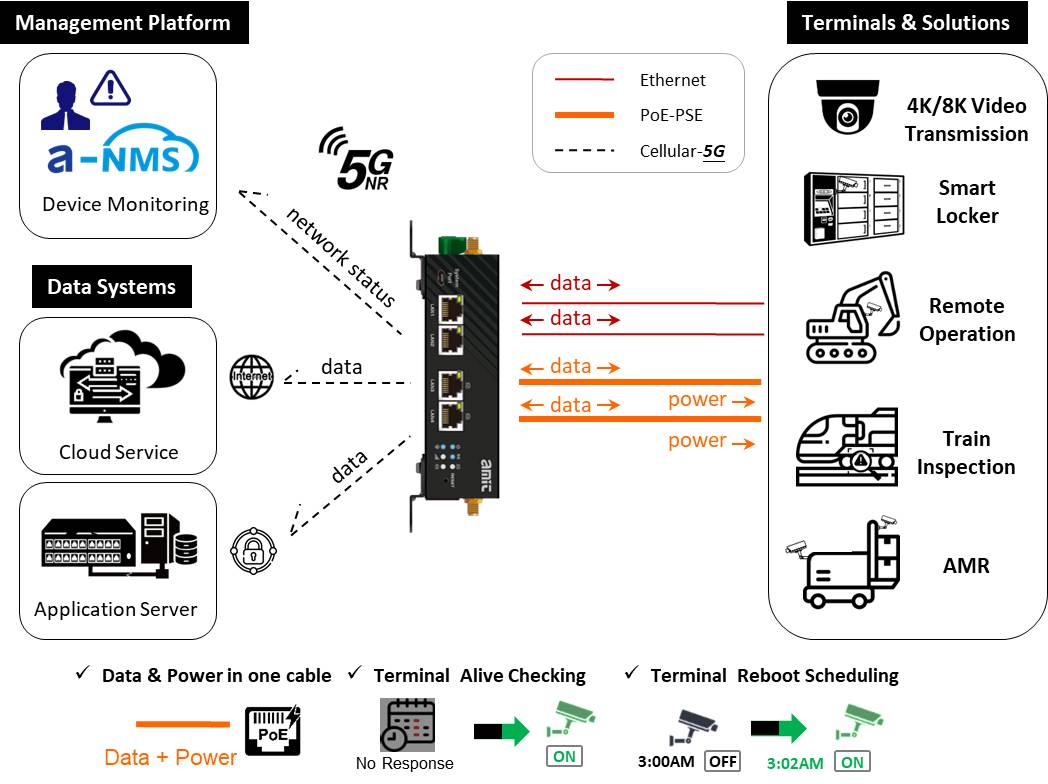

Diagram

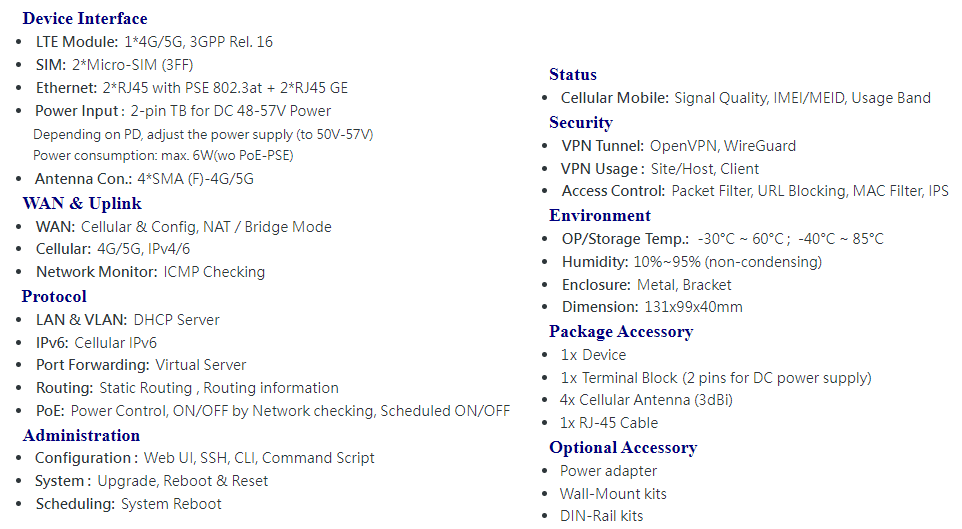

Specifications
