AWK-3131A-RTG Series

AWK-3131A-RTG Series

Features and Benefits

  •  IEEE 802.11a/b/g/n compliant
  •  M12 anti-vibration connectors
  •  SC optical fiber connection
  •  QoS (WMM) and VLAN for efficient network traffic
  •  Controller-based Turbo Roaming (less than 50 ms)
  •  Complies with all EN 50155 mandatory test items
  •  Wide-temperature models available for -40 to 75°C environments

Introduction

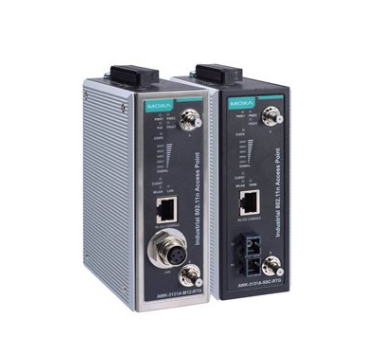

The AWK-3131A-RTG 2-in-1 industrial AP/client devices are designed specifically for train-to-ground communication and can perform reliably even when the trains reach a speed of 120 km/h. The AWK-3131A-RTG complies with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the AWK-3131A-RTG suitable for a variety of industrial applications. Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a convenient yet reliable solution for any rolling stock application.

Advanced Security

  • 64-bit and 128-bit WEP (Wired Equivalent Privacy)

  • Enable/disable SSID broadcasts

  • WPA/WPA2 (Wi-Fi Protected Access) and 802.11i support

  • IEEE802.1X/RADIUS support

  • Powerful filters for access control

Designed for Train-to-Ground Applications

  • Client-based Turbo Roaming handover time < 150 ms @ 3 channel with WPA2

  • Controller-based Turbo Roaming handover time (available only when used with the WAC-1001 or WAC-2004) < 50 ms @ 3 channels with WPA2

  • Multiple roaming parameters for different installation structures and antenna types

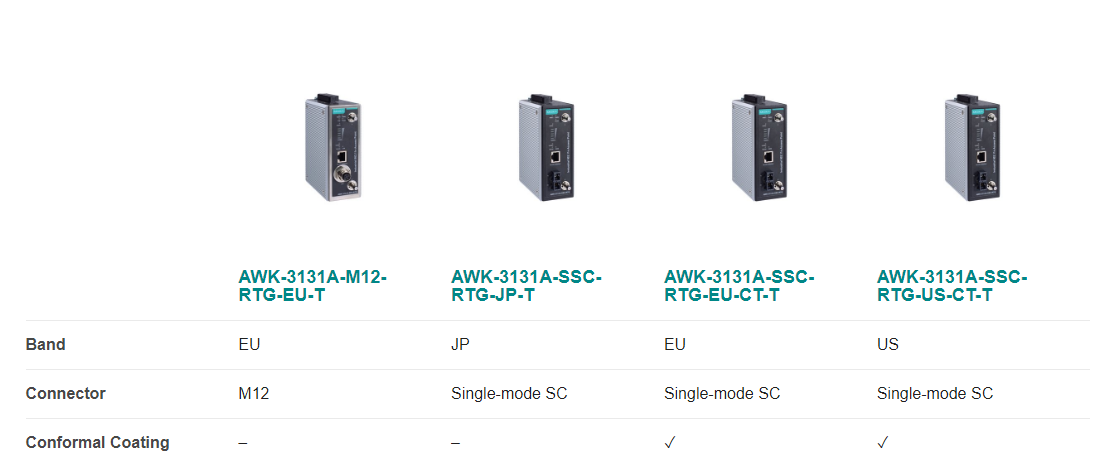

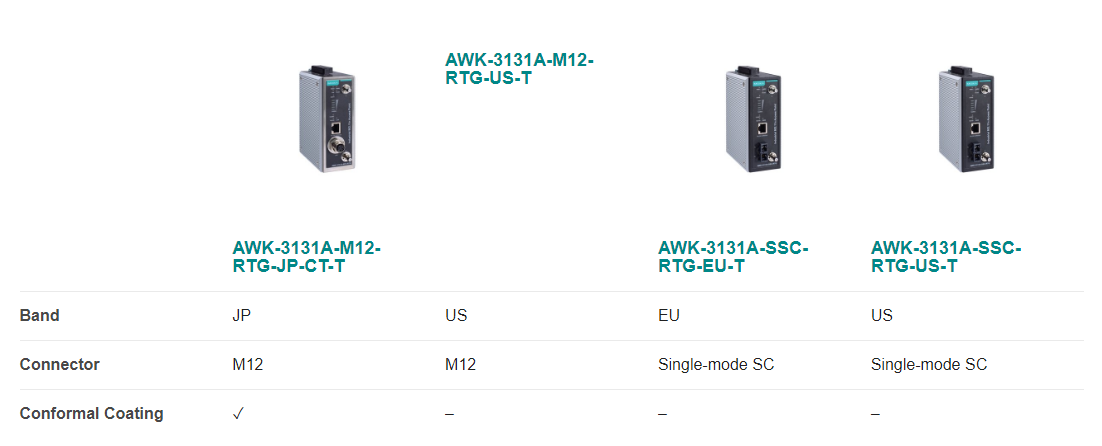

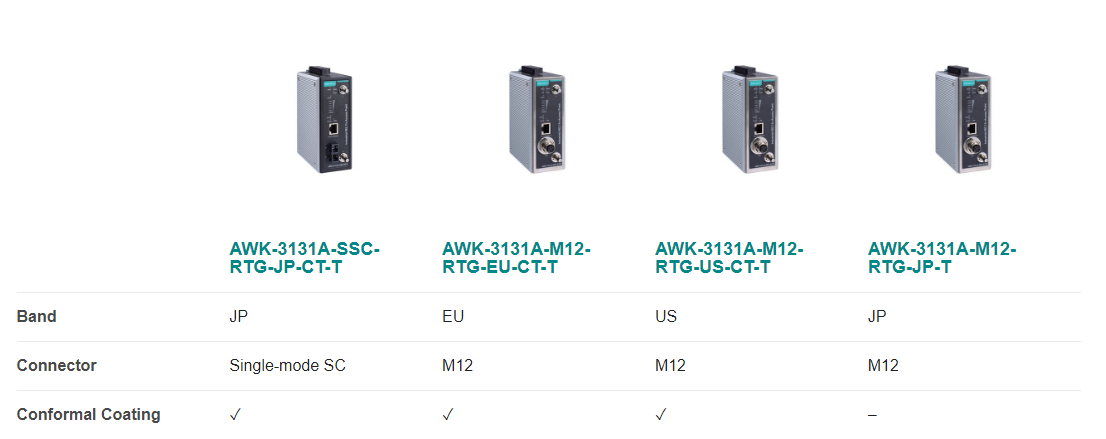

Models
