| Features and Benefits- Designed specifically for rail carriage-to-carriage communication
- IEEE 802.11a/b/g/n compliant
- Up to 300 Mbps data rate
- M12 anti-vibration connectors
- MIMO technology increases data throughput and range
- Complies with all EN 50155 mandatory test items
- Wide-temperature models available for -40 to 75°C environments
- Supports the Auto Carriage-to-Carriage connection function
|
Introduction

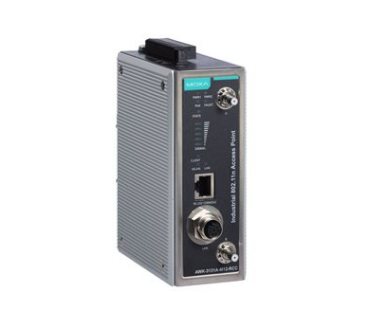

The AWK-3131A-RCC Series industrial 802.11n wireless AP/client is an ideal wireless solution for applications such as onboard passenger infotainment systems and inter-carriage wireless backbone networks because it provides a faster data rate compared to 802.11g devices. The auto carriage connection (ACC) feature facilitates easy deployment of wireless devices and increases the reliability of wireless carriage backbone networks. The AWK-3131A-RCC Series is also optimized for passenger Wi-Fi services and complies with a portion of the EN 50155 specifications covering operating temperature, power input voltage, surge, ESD, and vibration, making the products suitable for a variety of industrial applications. The AWK-3131A-RCC Series can also be powered via the PoE port for easier deployment.
High Data Rate and Bandwidth
High-speed wireless connectivity with up to 300 Mbps data rate
MIMO technology to improve the capability of transmitting and receiving multiple data streams
Increased channel width with channel bonding technology
Designed for Industrial-grade Applications
Industrial-grade QoS and VLAN for efficient data traffic management
Integrated DI/DO for on-site monitoring and warnings
Signal strength LEDs for easy deployment and antenna alignment

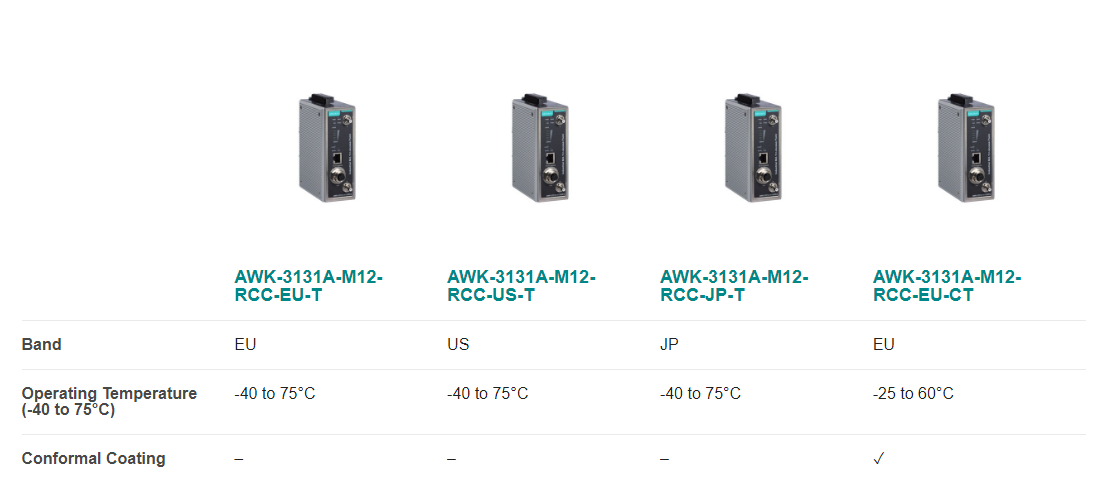

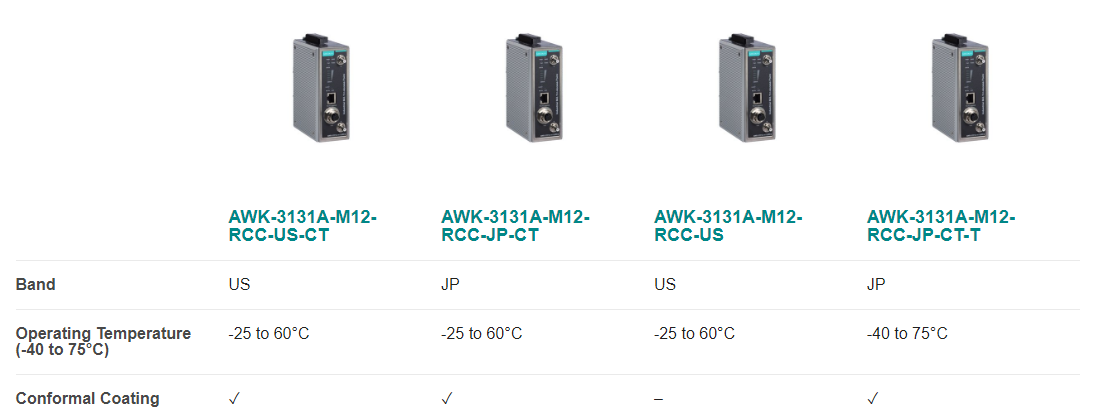

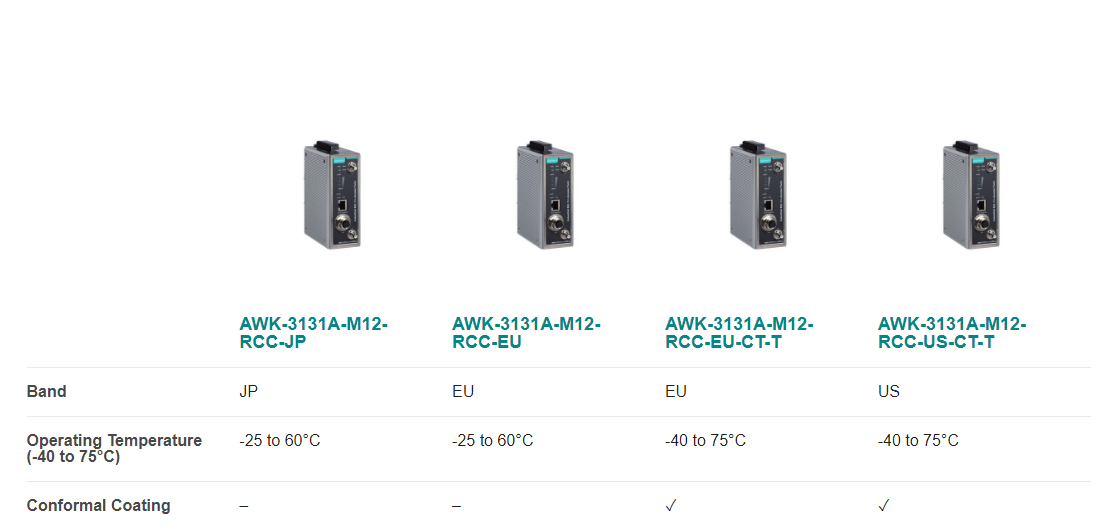

Models
