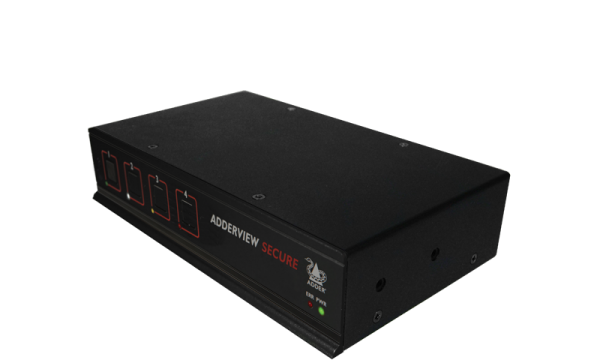

ADDERView® Secure Digital: Standard  Optimize the security of USB, DVI-I and audio KVM switching with the EAL4+ certified ADDERView Secure Switch Digital Standard  datasheet

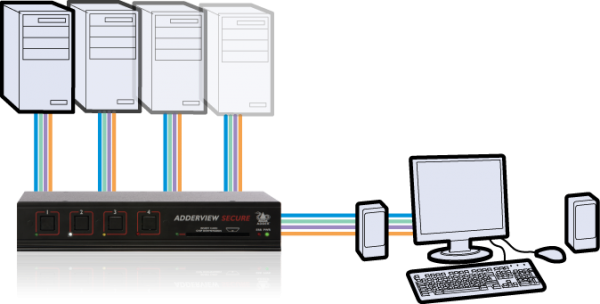

The ADDERView® Digital Standard SecureSwitch allows a keyboard, monitor and mouse to be shared between high and low security systems, “red and black networks”, with optimized security to prevent the compromise of critical data.  Product design provides support for USB, dual link DVI-I and audio KVM switching whilst protecting information, all within a high density, small form factor unit.   Secured Channel Switching: device can only be directly controlled, not via peripherals Security of Data: unidirectional flow of data and controlled memory limits access to information Tamper Proof Design: physical casing and circuitry minimize risk of unauthorized access Industry Recognized: designed to meet Common Criteria; EAL4+ certified USB and audio support Single or Dual Link options

Product Features

• Uni-directional data paths for keyboard and mouse: One-way data paths ensure that data isolation is assured by hardware, rather than by microprocessor software and protect against timing analysis or forced malfunction attacks
• Designed for minimal electromagnetic emissions and isolation of electrical crosstalk: Extensive shielding of the outer casing and of internal circuitry along with  60dB crosstalk isolation ensures that less than 1/1000th of any signal is transferred to another computer. External probing and unauthorized internal access are prevented through the unit design, with as few apertures as possible
• No shared RAM between ports: The keyboard and mouse processor is powered down and reset at each switchover to prevent shared RAM leakages. Separate memories hold the Num, Caps and Scroll states with limited accessibility and all data buffers are actively cleared once they have been used
• Hardwired port isolation:  Data Diodes implemented within hard-wired electronic circuitry ensure unidirectional flow of critical data paths, safeguarding any compromised peripheral by preventing reading of information or transfer of data by another system. Peripherals are always powered down and re-initialized in the event of a change of channel, providing an additional of protection against hidden peripheral malware

Security Level	AVSC1102	AVSC1104	AVSV1002	AVSV1004	AVSD1004	AVSD1002
Tempest Qualified
EAL4+ Certified
EAL2+ Certified

Specification

Approvals / Compliance
?    CE
?    FCC
?    Designed to meet Common Criteria EAL4+ certified (EAL4+ certificate available)
?    Tempest qualified design

Standards
Compatible with all known hardware platforms featuring VGA video and USB HID or PS/2 connectivity

Supports PC, Sun, Apple, RS/6000, Alpha and SGI-computers with USB keyboard and mouse interfaces and either VGA or DVI video interfaces

Single link digital: up to 1920 x 1200 @ 60Hz Dual link digital: up to 2560 x 1600 @ 60Hz

Cable Guidelines
The special cables available for connections to each system are carefully constructed with braid and foil to provide excellent screening against signal emissions that could otherwise be eavesdropped. A similarly constructed cable is also available for the monitor connection (VSCD9).  The special cables already have ferrite cores fitted to assist with signal suppression. For USB peripheral connections, we strongly recommend that (if not already fitted) you attach ferrite cores to those cables to further assist with emission suppression.

?    Shielded link cable (VGA, PS/2 keyboard, PS/2 mouse) Part code:  VSCD5 (length 1.8m/6ft)
?    Shielded link cable (VGA, USB keyboard/mouse, USB card reader) Part code:  VSCD6 (length 1.8m/6ft)
?    Shielded link cable (VGA, USB keyboard/mouse) Part code:  VSCD7 (length 1.8m/6ft)
?    Shielded link cable (VGA only) Part code:  VSCD9 (length 1.8m/6ft)

Environmental
0 to 40ºC / 32 to 104ºF

Computer Connections Transmitter (TX)
Video: DVI-I, Keyboard/Mouse: USB type B, Audio: 3.5mm stereo jack
KVM console
Video: DVI-I, Keyboard/Mouse: USB type A,  Audio: 3.5mm stereo jack

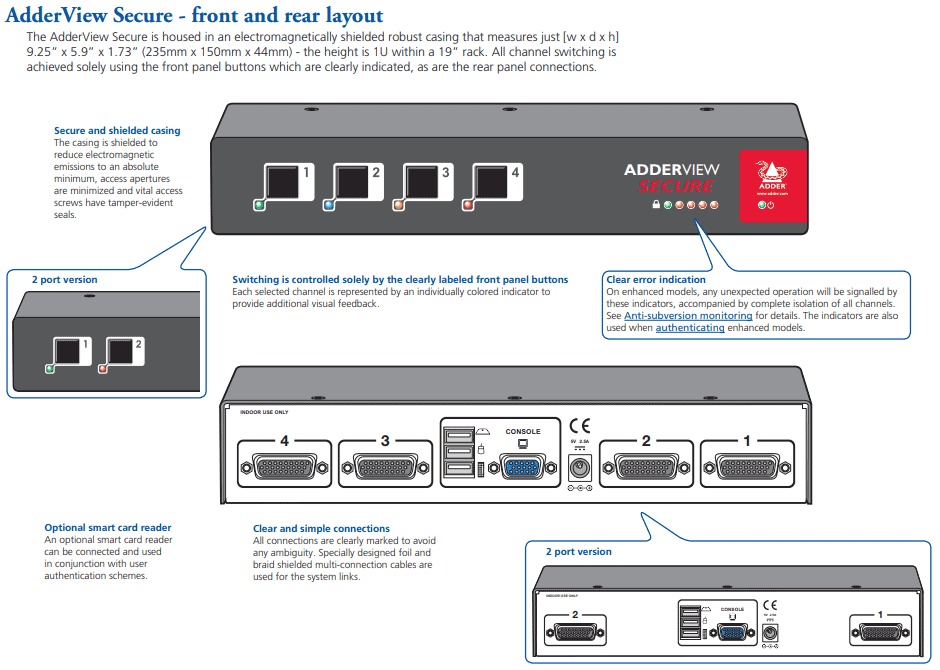

Mechanical
Compact case, robust metal construction, extensive shielding
234mm / 9.2” (w) x 140mm / 5.5”(d) x 44mm / 1.7”(h) 1.4kgs / 3lbs

Power
100 - 240V AC, 50-60Hz, 10W
