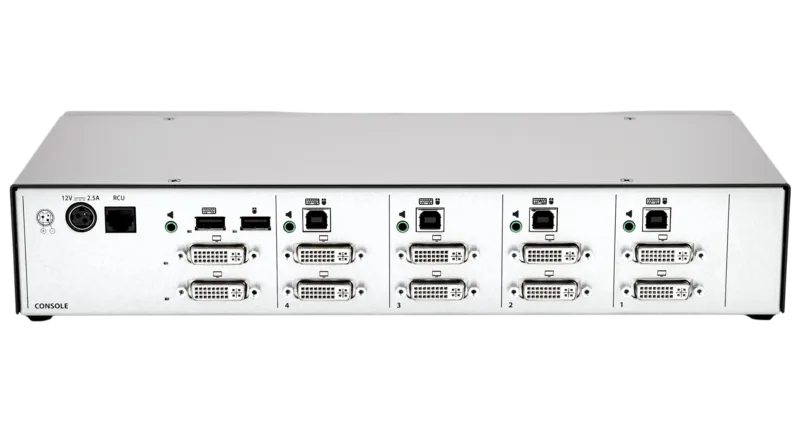

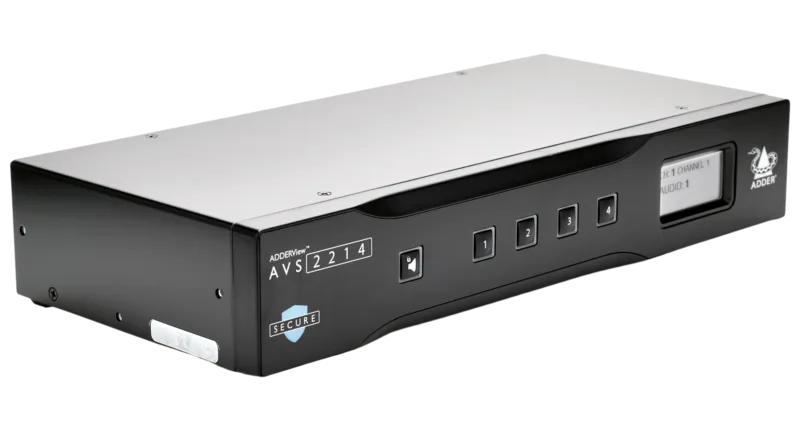

ADDERView® Secure AVS 2214

Secure KVM switch for sharing dual-head DVI video, USB keyboard and mouse, plus analog audio between four computers spanning multiple security classification levels.

ADDERView® Secure switches enable a KVM plus audio desktop to be shared between different classification level computers. Designed for superior usability, the switches feature configurable LED buttons and a real-time status display.

datasheet

No Shared RAM Between Channels

The keyboard and mouse processor is powered down and reset at each switchover to stop avoid RAM leakages. All data buffers are actively cleared once they have been used.

Automatic Switching (Configuration)

Free-flow KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

Hardware Anti-Tampering

Holographic anti-tampering labels protect the product’s enclosure, providing a clear visual indication if it has been opened or compromised.

Restricted USB Function

The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.

Audio Hold

Assign the audio port to a specific computer while switching the KVM to other computers. Useful when a user needs to listen to audio from one computer, while working on another.

Uni-Directional Audio

Enforces computer-to-speaker, one-way flow of sound through uni-directional optical data diodes. Prevents eavesdropping and line-in re-tasking by blocking speaker-to-computer communication.

Industry Recognized

NIAP PP 4.0 Certified and TAA Compliant
