ADDERVIEW® SECURE ANALOGUE: STANDARD

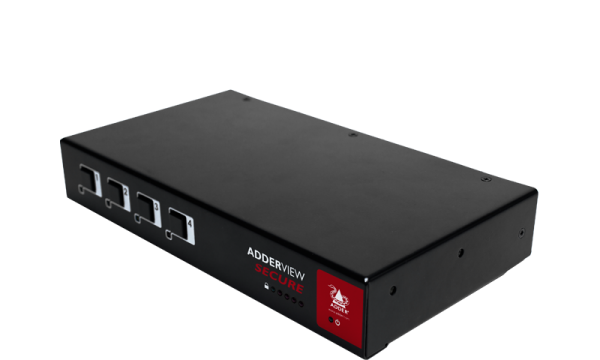

ADDERView® Secure Analogue: Standard

Optimize the security of KVM switching with ADDERView SecureSwitch Analogue Standard

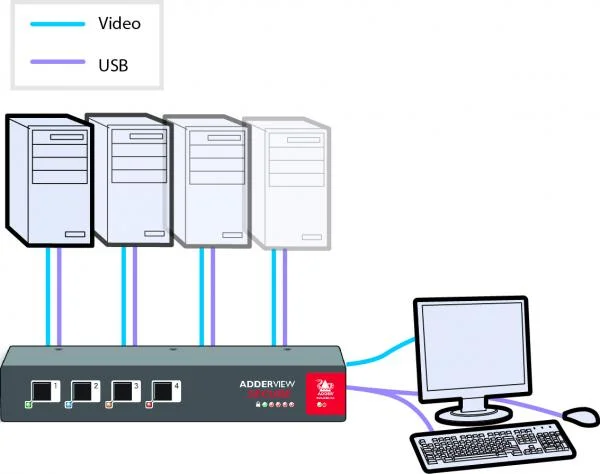

The ADDERView® Analogue Standard SecureSwitch allows a keyboard, monitor and mouse to be shared between high and low security systems, “red and black networks”.  The high density, highly robust, small form factor unit ensures maximized security to prevent the compromise of critical data.


  • Secured Channel Switching: device can only be directly controlled, not via peripherals
  • Security of Data: unidirectional flow of data and controlled memory limits access to information
  • Tamper Proof Design: physical casing and circuitry minimize risk of unauthorized access
  • Industry Recognized: designed to meet Common Criteria; EAL4+ certified

Product Features

  • TEMPEST qualified and EAL4+ certified: Tempest certified design (USA NSTISSAM Level I and NATO SDIP-27 Level A), EAL4+ Common Criteria Evaluation Assurance Level 4 (augmented by ALC_ FLR.2 and ATE_DPT.2)
  • Physical port identification: Channel switching is controlled only from the front panel buttons. No keyboard or mouse switching commands are permitted.  Two port and four port sizes are available as standard or enhanced versions.
  • Hardwired port isolation: Data Diodes implemented within hard-wired electronic circuitry ensure unidirectional flow of critical data paths, safeguarding any compromised peripheral by preventing reading of information or transfer of data by another system. Peripherals are always powered down and re-initialized in the event of a change of channel, providing an additional of protection against hidden peripheral malware.


Specification

Approvals / Compliance
?    CE
?    FCC
?    Designed to meet Common Criteria EAL4+ certified (EAL4+ certificate available)
?    Tempest qualified design

Standards
Compatible with all known hardware platforms featuring VGA video and USB HID or PS/2 connectivity

Support for all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare

Video Analog: up to 1920 x 1200 @ 60Hz

Cable Guidelines
The special cables available for connections to each system are carefully constructed with braid and foil to provide excellent screening against signal emissions that could otherwise be eavesdropped. A similarly constructed cable is also available for the monitor connection (VSCD9).
The special cables already have ferrite cores fitted to assist with signal suppression. For USB peripheral connections, we strongly recommend that (if not already fitted) you attach ferrite cores to those cables to further assist with emission suppression.

?    Shielded link cable (VGA, PS/2 keyboard, PS/2 mouse) Part code:  VSCD5 (length 1.8m/6ft)
?    Shielded link cable (VGA, USB keyboard/mouse, USB card reader) Part code:  VSCD6 (length 1.8m/6ft)
?    Shielded link cable (VGA, USB keyboard/mouse) Part code:  VSCD7 (length 1.8m/6ft)
?    Shielded link cable (VGA only) Part code:  VSCD9 (length 1.8m/6ft)
