ADDERView® DDX CAM Computer Access Module (transmitter) for DDX range

Part of the ADDERView® DDX range, the DDX CAM is a Zero U Computer Access Module (CAM) which attaches a source computer to either the DDX10, DDX30 or DDX USR. When connected directly to the DDX USR, it creates a KVM extender. When combined with the DDX10 or DDX30, it forms an integral part of a KVM Matrix. Available in DisplayPort, VGA and DVI variants.   Compact and efficient: powered by a single USB connection, it takes up 'Zero U' on your rack Distribution: available with DisplayPort, DVI or VGA ports, and HDMI via a passive converter Easily expand your installation: for each new computer system and user, simply add a USR and CAM module, safeguarding your investment

Product Features

• Plug and Play: the CAM requires no configuration, so you can simply connect it to the DDX USR or a DDX switch
• Video resolutions: supports all common single link digital video resolutions
• Easily expand your installation: for each new computer system and user, simply add a USR and CAM module, safeguarding your investment
• Multi-functional USB: the CAM does not need an external power supply as it is powered by USB, which also delivers USB data functionality and acts as a USB audio device

Specification

Approvals / Compliance

• CE
• FCC

Standards

VGA, DVI (1920 x1200 @60Hz) and DP video standards

USB 2.0 (HID)

Cable Requirements

A minimum specification of Shielded Twisted Pair (STP) cables must be used with the DDX range. Recommended cables are SFTP:

• Daetwyler 7702 Flexible patch cable
• Daetwyler 7120 Bulk cable

Unshielded cables are not suitable for the DDX. Distances are achieved using single lengths of SFTP trunk/bulk cable with two 3m SFTP patch cables.
For each additional break/patch connection reduce distance by 5m.
Patch cables must be SFTP.

Environmental

0 to 40ºC / 32 to 104ºF

Connectors – Local Unit

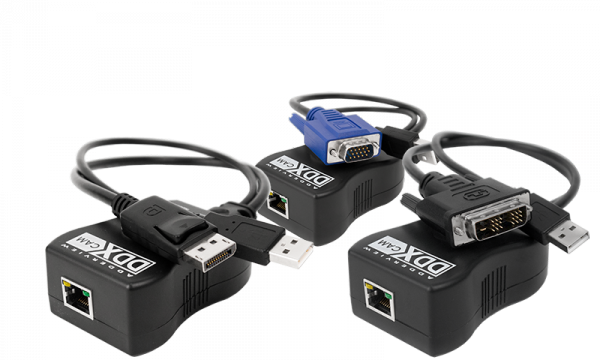

Three types of DDX-CAM modules are available:

DVI-D and USB type A (for all), or DisplayPort and USB or VGA and USB.

RJ-45 plug

Power

USB powered (Max 500mA @ 5V)

Software

Compatible with all known operating systems
