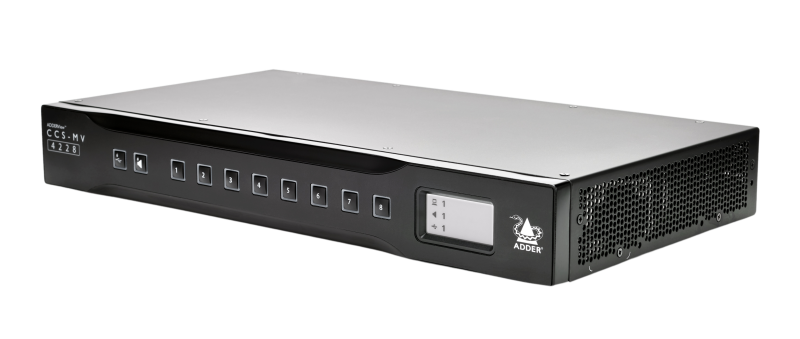

ADDERVIEW® CCS-MV4228 MULTI-VIEWER COMMAND AND CONTROL MULTI-VIEWER SWITCH FOR SHARING 4K VIDEO, KEYBOARD AND MOUSE, PLUS AUDIO BETWEEN EIGHT COMPUTERS. INNOVATIVE HYBRID DISPLAYPORT™ AND HDMI® VIDEO PORTS FOR FLEXIBLE CONNECTIVITY FROM A SINGLE COMPUTER. datasheet

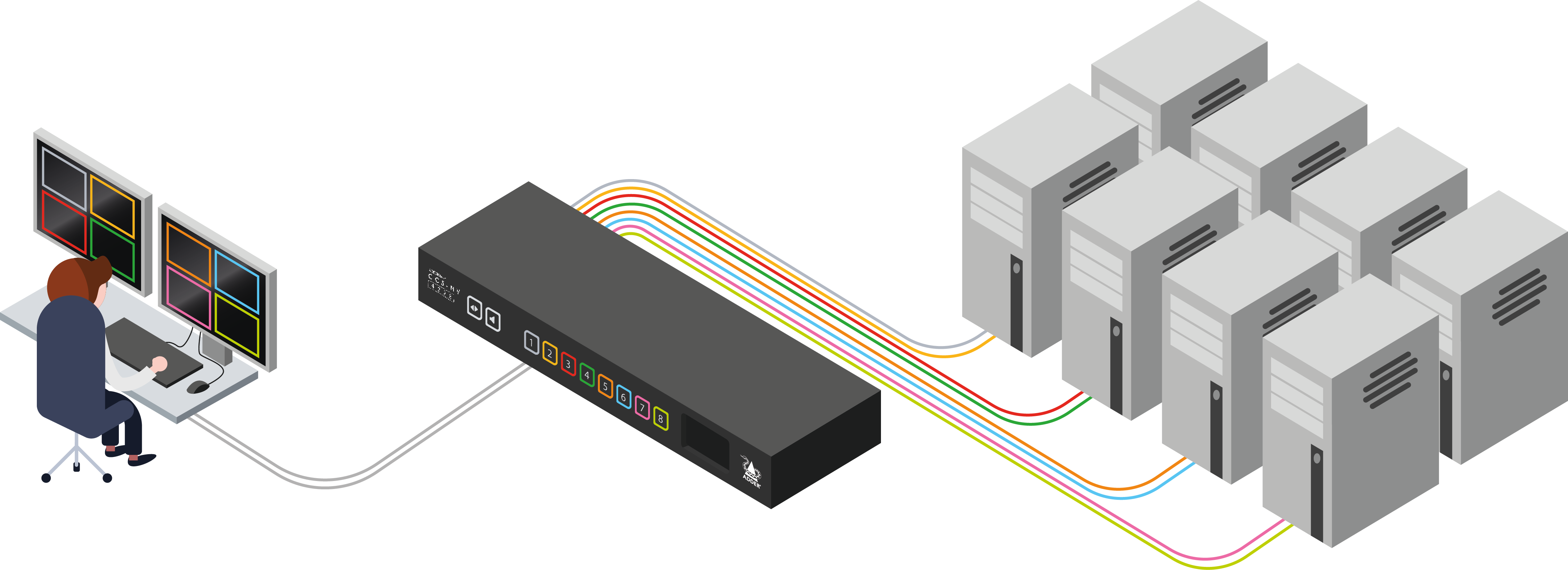

The ADDERView® CCS-MV, a desktop multi-viewer switch, provides simultaneous, real-time 4K KVMA (Keyboard, Video, Mouse and Audio) access of up to eight computers from a single workstation. Users can instantly take control of the target computer by simply moving the mouse between windows, providing the experience of a single desktop. Directly connect a single workstation to eight video, audio and USB sources Access any number of sources on a network when combined with an ADDERLink® INFINITY IP KVM Matrix Seamless cursor interaction with sources as if using a single desktop Color-coded identifiers plus configurable name for fast channel identification Multiple window layouts for  real-time data visualization and improved decision making Enhanced, decluttered workspace ergonomics and improved situational awareness

Product Features

• Video performance
  Up to UHD 4K video output resolution is generated, thus providing a crystal clear display, even with a tiled window layout.

• Automatic switching
  Natural automatic switching of KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

• Flexible screen layout
  Use preset window layouts, or move and resize windows to create custom layouts. Dual output ports allow for extended or duplicated displays.

• Channel identification
  Reduce the chances of operator error by displaying a meaningful name for each channel. The port LED and window border colors may also be configured.

• USB performance
  Emulated USB2.0 ports for fast switching of HID (Human Interface Devices), such as keyboard and mouse. Hi-speed USB3.0 switched port for mass storage and isochronous devices, including flash drives, headsets and web cams.

• Flexible computer connections
  Connect to a combination of single and dual-head computers with either DisplayPort, HDMI or DVI connectors.

• Analog audio
  Output analog audio. An audio ‘Hold’ facility assigns the audio connection to a specific computer whilst the KVM is switched to another computer. Useful when a user needs to talk to one channel, whilst working on another.

• Digital audio mixer
  Option to combine audio signal from multiple HDMI® channels. Adjust the volume level for each channel.

• Copy & Paste
  Copy text between Windows 10 computers using standard keyboard, Ctrl+C and Ctrl+V commands.

• Matrix integration
  The ADDERView® CCS-MV 4228 may be connected to the ADDERLink® INFINITY matrix system. This allows the user to control any 8 computers connected to the matrix network.

• Remote control
  Select layout presets and input channels remotely for control room applications where the displays are used to aid situation awareness.

Specification

• Operating Systems and Compatibility
  Windows, Linux, macOS

• Video resolutions (Up to two screens)
  UHD 4k (3840x2160) at 4:4:4
  Frame Rate: 30
  Color Depth: 8 bpc

• Computer Connections
  2 x USB B 2.0 (True Emulation (HID), Hi-Speed)
  1 x DisplayPort ™ (Dual Port - DP+HDMI)

• Console Connections
  2 x USB A 2.0 (True Emulation (HID), Hi-Speed)
  1 x DisplayPort ™ (Dual Port - DP+HDMI)

• Audio
  Audio Type: Analog/Digital
  Channels: 2
  Audio Out Port Type: 1x 3.5mm jack

• Serial Ports
  1 x RS232, For remote control
  Serial Type Connection RJ12 (6p6c)

• Front Panel Features
  8 x Multi colour status LEDs
  1 x E-Paper Display
  1 x Audio Hold button
  1 x Hi-Speed USB Hold button

• Physical design
  Robust metal construction
  Width: 439mm/17.3in
  Height: 58mm/2.3in
  Depth: 237mm/9.3in
  Weight: 3.8kg/8.4lb

• Power
  Power type: 1 x 12V 3-pin Kycon
  Input Power Supply: PSU 4A
  Maximum power (Watts): 36
  Maximum Power (Volts): 12
  Maximum power (Current): 3
  Additional Information: 100-240V AC, 47/63Hz. 12V DC 48W output from power supply unit.

• Environmental
  Operating temperature: 0 - 40°C/32 - 104°F
  Storage temperature: -20 - 60°C/-4 - 140°F
  Storage and operating humidity: 0% - 80% (non-condensing)
  Temperature Regulation: Built-in fan
  Warranty: 2 years

• Approvals
  CE, cTUVus, FCC, ICES, UKCA

• Standards
  ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B

• Other
  Cal Prop 65, China ROHS, EU REACH, UK REACH
