 | ADDERView® CATx 1000 ADDERView® CATx 1000 KVM switch grants a user access to control up to 16 computers over CATx cabling within a secure and small form factor |

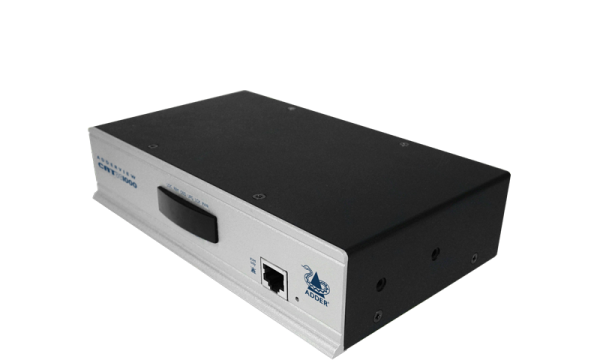

The ADDERView CATx 1000 is a high density, small form factor KVM switch that provides local and remote access for a user that wishes to control up to 16 multi-platform servers using neat and convenient CATx cables. The CATx 1000 combines USB console support with a full KVM feature set to create a truly modern KVM switching solution that provides high quality video and CD quality audio. Highly flexible connectivity options make the ADDERView CATx 1000 the ideal solution for a wide range of server room, desktop and other demanding applications. |  |
USB keyboard and mouse control: Any USB style keyboard and mouse (PC, Mac or Sun) can be used to control the ADDERView CATx 1000 switch. Full keyboard re-mapping is supported to ensure seamless cross platform functionality
Faultless video quality: The ADDERView CATx series provides exceptionally high video performance to local and remote users alike, supporting up to 1600 x 1200 @ 85 Hz resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true color.
True multi-platform support: The ADDERView CATx 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation
Easy cascade: Expand simply by using just CATx cable to link units. The ADDERView automatically detects cascade connections to support up to 256 computers
Optional CD quality audio: ADDERView CATx 1000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used
Options port
• Integration with RS232 controlled power switches to provide a complete hard reboot function
• Flash upgrade
• Sync with other CATx 1000 switches for multi-video applications
• Upload/download CATx 1000 user and host information
• Remote control

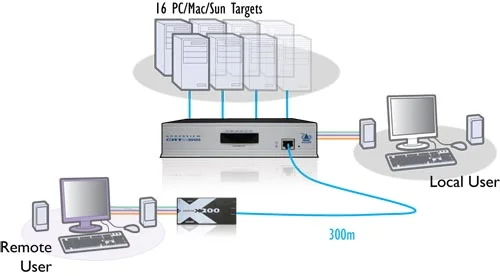

Integrated CATx extender: The ADDERView CATx 1000 can be controlled by a user from up to 300m away over CATx cable using the ADDERLink X200 or X100 receiver and the integrated CATx extender
Computer Access Modules: Flash upgradeable CAMs available for PS/2, USB and Sun keyboard and mouse support with optional audio
Rack mount / rack drawers: One or two CATx 1000 switches can be mounted in 1U rack height giving a maximum of 32 ports per 1U. Small size also makes the units ideal for mounting behind KVM rack drawers
User access control: Up to 16 different user profiles can be created and enables access rights for each user to be defined
Embedded KVM option: CATx 1000 technology is available in for embedding within other equipment through an interconnected header.
Operating Systems and Software compatibility Software: All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS.
Computer connections at switch: RJ45
Computer connections at computer
Video: HDD15 / VGA
Keyboard/Mouse: choice of USB, PS/2 and
Sun MiniDin8
Audio (optional): 3.5mm stereo jack
Local KVM console connection
Video: HDD15 / VGA
Keyboard/Mouse: USB type A
Audio: 3.5mm stereo jack
Physical design:
1U high 198mm / 7.92” (w), 44mm /
1.76” (h), 120mm / 4.8” (d), 750g / 1.65
lbs.
Power connection:
2.5mm DC jack, power adapter included
Other connectors:
Remote KVM console: RJ45
Options (flash upgrade, sync with other
CATx1000 and RS232 triggered power
switches): DB9 female
Power:
100-240VAC 50/60Hz input to power
adapter, 5VDC 2A output from power adapter
Operating temperature:
0ºC to 40ºC / 32ºF to 104ºF
Approvals:
CE, FCC, UKCA
