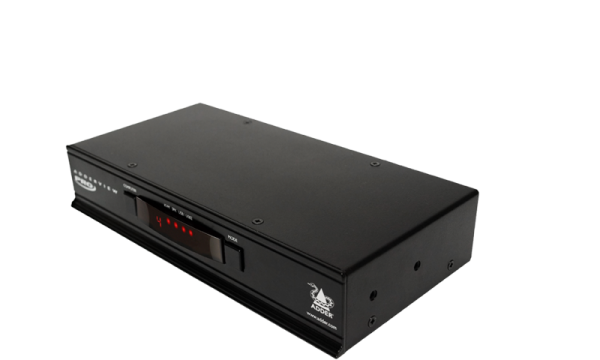

 | ADDERView® 4 PRO DisplayPort™ KVMA switch that shares digital video and USB between up to four computers through a DisplayPort™ connector datasheet |
Part of the ADDERView® PRO range, the AV4PRO DisplayPort™ is designed to enable four computers equipped with DisplayPort™ technology to be controlled from a single KVM console. This four-port switch is also available in DVI or VGA variants. - Access multiple applications: allow one display, keyboard and mouse to switch control between up to four computers
- Fluid and Reliable USB Switching: Adder’s USB True Emulation ensures fast and reliable switching
|  |
Product Features
- High resolution video: supports 2560 x 1600 resolution at 60Hz refresh rate and 10 bits per color, 1920 x 1200 resolution at 120Hz refresh rate, and Full HD monitors at 1920 x 1080 resolution and 60Hz refresh rate at 12 bits per color without latency, all over standard cables
- Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen
- USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

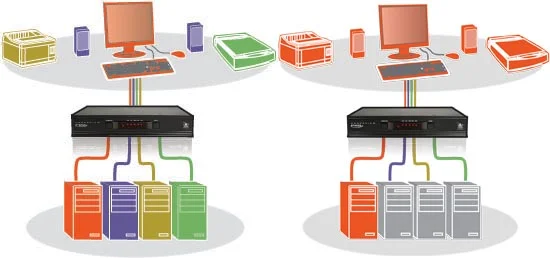

- Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
- Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote
- Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices
- ‘Options’ port for control, synchronisation and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port
Specification
Video Resolutions
Supports 2560 x 1600 resolution at 60Hz refresh rate and 10 bits per color, 1920 x 1200 resolution at 120Hz refresh rate, and Full HD monitors at 1920 x 1080 resolution and 60Hz refresh rate at 12 bits per color without latency, all over standard cables
Audio
3.5mm stereo jack
Approvals / Compliance
Standards
USB 2.0 type B
Cable Requirements
All standard cables
Environmental
0 to 40°C/32 to 104°F
Connectors – User
Video: DisplayPort™, 2 x USB type A, Switched USB: 2 x USB2.0 type A, Audio: 3.5mm stereo jack
USB 2.0 type B, DisplayPort™, 3.5mm stereo jack
Connectors – Computer
Options (flash upgrade, sync with other AV4PRO-DP and RS232 triggered power switches): Modular 10P10C
Mechanical
1U high metal case 233mm (w), 115mm (d), 44mm (h)
Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter
Software
Operates with all known software and operating systems including Windows®, Linux®, Unix, macOS®, and Sun OS
