| ADDERLink X50-MS The ADDERLink® X50-MS KVM extender deliver sharp, bright, high resolution video to dual user consoles up to 50m / 150ft away datasheet |

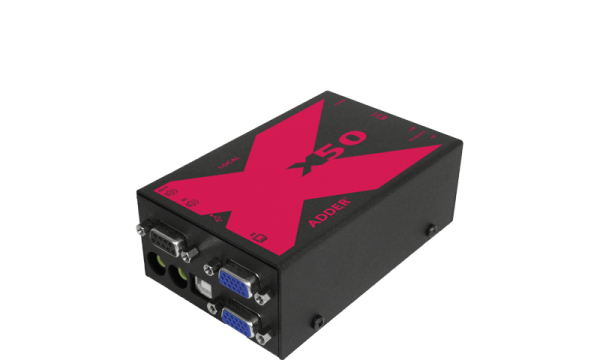

ADDERLink® X50-MS is compact in size and delivers uncompressed, lossless extension of USB peripherals including Keyboards, Video and Mice (KVM) up to 50m (150ft) over a single CAT5 or higher UTP cable. Sharp, bright and ultra high-resolution video plus digital stereo audio are delivered over a VGA interface to multiple screens with total USB 2.0 compatibility, regardless of the computer being controlled or the peripheral being extended. | |
Product Features

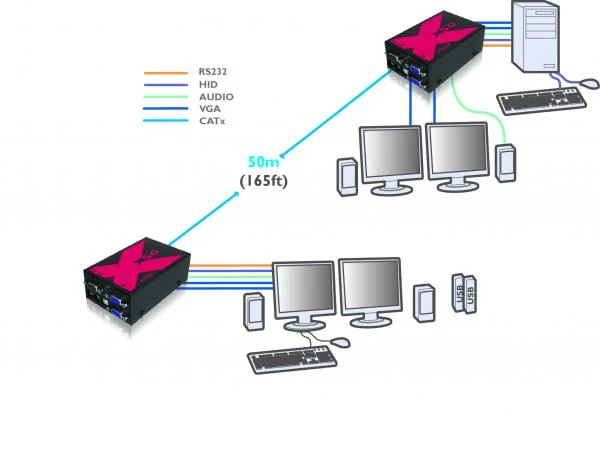

MultiScreen option: ADDERLink X50 MultiScreen (MS) adds a second video and transparent, High speed RS232 up to baud rates of 115,200 to enable extension of computers with dual monitors
Fully transparent Low/Full speed USB: delivers the highest possible levels of USB compatibility through a unique USB communication method. Integrated 4 port hub to support all USB 1.1 and 2.0 Low/Full speed devices.
High-performance video: industry leading video quality at high resolutions of 1920 x 1200 @ 60Hz over 50m (150ft)
Video compensation: broad range of ultra smooth, fine adjustments to video picture
True DDC Emulation: full supports 2-page Display Data Channel (DDC) ensuring all possible resolutions are supported
Fully platform independent: support for all common hardware platforms, and their associated peripherals, through fully transparent USB connections
Specification
Video Resolution
1920x1200 x 60Hz at distances up to 50m / 150ft
Approvals / Compliance
Standards
Supports all computers with USB style keyboards and mice, HDD15 video connectors and audio through 3.5mm audio jack. Supports all USB devices.
Cable Guidelines
Up to 50m / 150 ft using CATx cable (x=5,5e,6)
The maximum extension distance for USB is 50m including connections to and from the X50 independent of cable type. If a USB hub is connected to the RX unit, this is seen as 5m of cable length. This needs to be taken into consideration when planning your system
Environmental
0 to 40ºC / 32 to 104ºF
