ADDERLink® DV120-DVI   Pixel-perfect digital video, distributing the exact content seen on the local monitor up to 50m over a single CATx cable via a DVI connection  Datasheet

ADDERLink® DV120 is an easy to install, highly compact digital video extender system capable of transmitting an HD video stream over a single CATx cable via a DVI connection. This allows you to locate your media playback hardware in a secure and temperature-controlled environment. Your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experience.  Pixel Perfect: delivers digital video with optimum clarity Distributes the exact content seen on the local monitor: up to 50m over a single CATx cable via DVI USB powered: energy efficient design uses less than an eighth of the power required by some competing systems Small form factor: dongle ensures optimum space saving

Product Features

• Pixel-perfect digital video: using an uncompressed communication system with zero loss of data for resolutions up to 1920 x 1200 @ 60Hz (WUXGA)

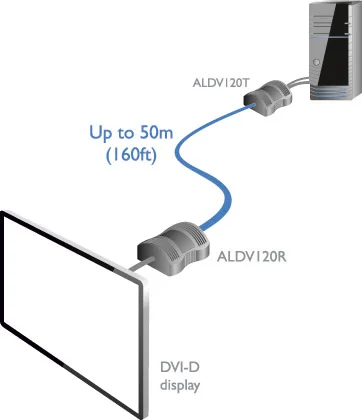

• Distribution up to 50m over a single CATx cable: video and power share a single cable of up to 50m (with the achievable extension distance dependent on cable type and number of connection intervals)
• High energy efficiency: power is harvested from a standard USB socket so external PSUs are not needed
• EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the data coming from the source monitor
• Plug and Play: AdderLink DV120 extenders are delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
• Robust yet lightweight: tough but light ABS enclosures along with reliable internal and external connectors to withstand environmental pressures

Specification

Approvals / Compliance

• CE
• FCC

Standards

DVI-D interface: The system supports resolutions such as 480p, 720p, 1080p or WUXGA (1920 x 1200) @ 60Hz (with reduced blanking) and 24bit color depth.

Hardware compatibility: All computers with DVI-D and USB connections

Cable Guidelines

Important extension distance information

• Recommended cables are CAT7 shielded foiled twisted pairs: Daetwyler 7702 Flexible patch cable Daetwyler 7120 Bulk cable
• CAT6 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances
• Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5m (16ft). Preferably patch cables should be of type CAT7 and less than 2m (6.5ft). Patch cables over 2m (6.5ft) must be CAT7.
