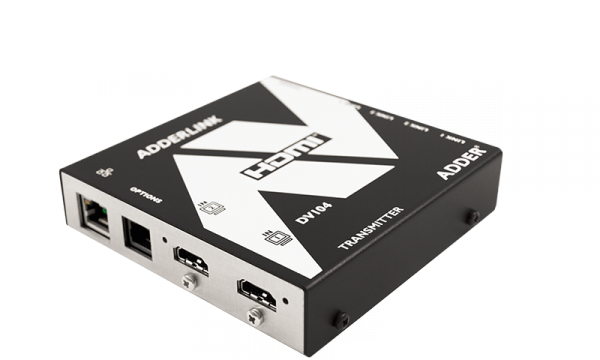

 | ADDERLink® DV104T High performance digital video extender and splitter |
ADDERLink DV104T is a high performance digital video extender and splitter that enables you to locate your critical play out hardware in a secure and temperature controlled environment away from the display point environment whilst maintaining the same user experience. • Proof of Display (P.O.D.) |  |
The unit determines if the entire system is operating correctly and video is visible on the monitors. It can detect if video is present from the player and whether the cables to the monitors are attached and the monitor is turned on. This information is available by an IP socket thus allowing remote diagnostics and integration into content management systems.
The unit can be set to detect that a video stream is present at the input. The unit can be set to automatically switch over to the second video input if the primary fails.
Security on the web interface is by HTTP digest authentication (RFC 2617) with username and password as requested information.
The API documentation to control and receive data from the unit is provided with the system.
Supports 8 channels of HDMI audio.
The ALDV104 uses an uncompressed video system where every frame is sent without loss with resolutions up to 1920 x 1200@60Hz (WUXGA) including 1080p, 720p and 480p resolutions.
Video, audio and power all pass along a single CATx cable, providing up to 50m of extension. Distance can be dependent upon CATx cable types and the number of connection breaks for patch panels and wall plates. See overleaf for details.

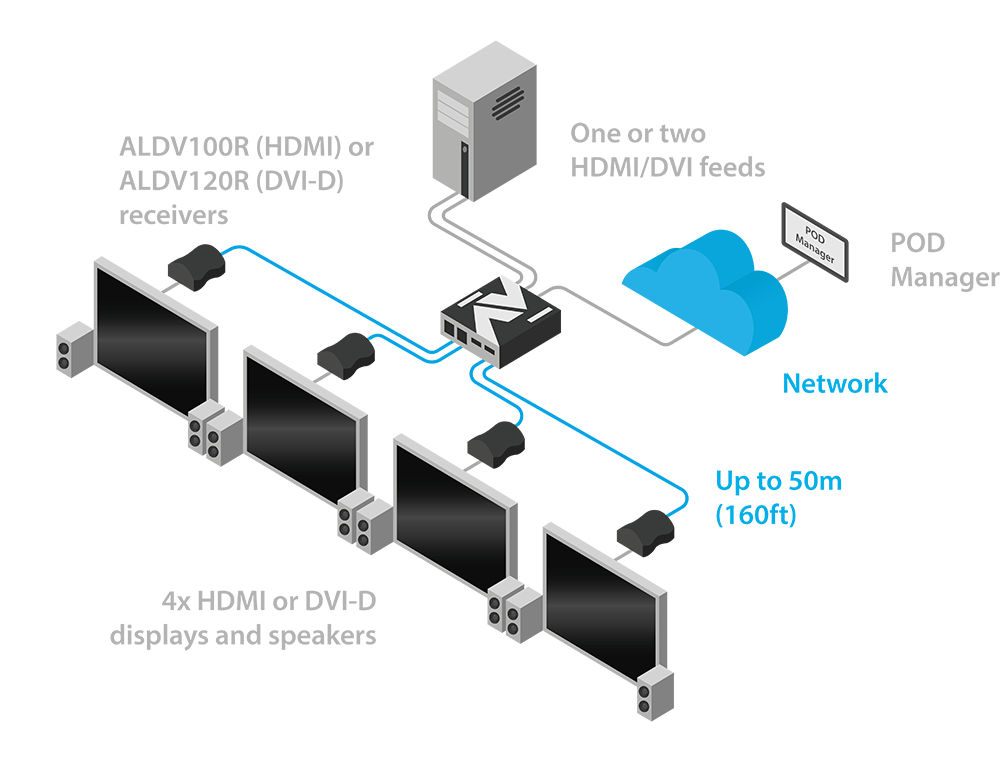

With two inputs, the system is suited to extending and splitting dual head systems.
The receivers are designed to be highly power efficient, using less than an eighth of the power required by competing systems. Power is supplied along the CATx cable meaning the support infrastructure required is minimal.
The system has intelligent EDID management allowing the true characteristics of the monitor to be passed back to the computer.
The DV104T is delivered in a zero config state so you can plug and play. There is no need for additinal drivers or software.
All computers with HDMI connections - requirement dependent
The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920x1200) @60Hz and 24 bit color depth. Does not support HDCP
All known operating systems
The system delivers eight channels of HDMI audio with sample sizes of 16, 20 or 24 bit at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz.
2 x HDMI type A male, 4 x CATx sockets for link outputs,1 x 10/100Base-TX network port (config),1 x 9-way D-sub RS232C port, 2.5mm DC power jack
0 to 40ºC / 32 to 104ºF
Compact case, robust metal construction: 115mm / 4.5’’ (w) x 114mm / 4.5’’(d) x 26mm / 1’’(h). Weight 440g / 0.97 lb
3pin Toby jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 12VDC 18W output from power adapter
CE, FCC
| Resolution | Frequency | Patch Connections | Cable Type | Distance |
| 1920x1200 | 60Hz | 0 | CAT7a | 50 meters |
| 1920x1200 | 60Hz | 0 | CAT6a (shielded) | 50 meters |
| 1920x1200 | 60Hz | 2 | CAT6a (shielded) | 40 meters |
| 1920x1200 | 60Hz | 2 | CAT7a | 40 meters |
Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7a and less than 2 meters. Patch cables over 2 meters must be CAT7a.
