x86 Embedded Board

OVERVIEW

Winmate provides various types of SBC for all your industrial embedded applications. Choose from Mini-ITX, 3.5 inches, and ultra-slim SBC board integrated with the most advanced technology to generate compact computing, engines, and meet customers' needs.

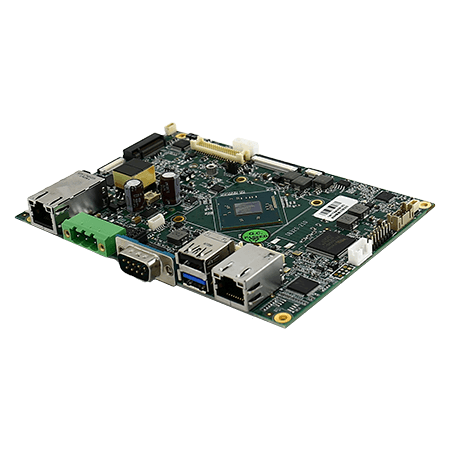

IE32 Intel® Celeron® N6210 x86 Embedded motherboard KEY FEATURES 3.5” Form Factor (146 mm x 102 mm) 1 x DDR4 SO-DIMM 3200 MHz, max. 16GB 2 x Gigabit Ethernet Intel® SoC Integrate Intel® Celeron® Elkhart Lake N6210 Processor Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0 Learn more...	IP32S x86 sbc ,Intel® Pentium® N4200 single board computer KEY FEATURES x86 sbc, 3.5” Form Factor (146mm x 102mm / 5.7 x 4 inches) Intel® Pentium® Apollo Lake N4200 Processor , single board computer x86 System memory DDR3L 1600 / 1866 MHz, SO-DIMM Max 8GB Intel® HD Graphics Engine 2 x Giga LAN, one with PoE function 2 x USB 3.0, 1 x RS232/422/485, 1 x Micro HDMI (Optional) Learn more...	IW32 Intel® Core™ i5-8265U x86 Embedded motherboard KEY FEATURES 3.5” Form Factor (146mm x 102mm),x86 Embedded motherboard Intel® Core™ i5-8265U Processor One DDR4-2400 SO-DIMM RAM Intel® Gigabit-LAN Controller I210AT + PHY I219LM 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen1.4 x USB 2.0 1 x M.2 Key M Slot for M.2 2242 SATA III SSD Optional M.2 2280 NVME SSD 1 x M.2 2230 Key E Slot (for Wireless Module) 1 x HDMI(Optional) Learn more...

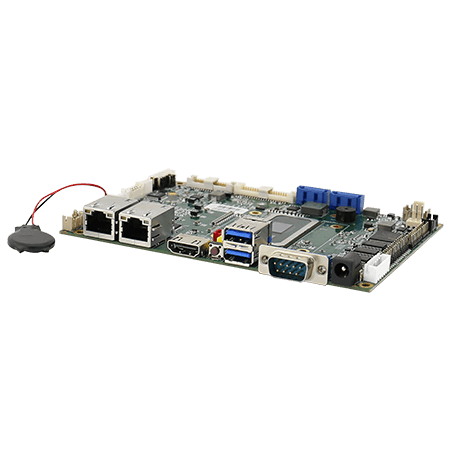

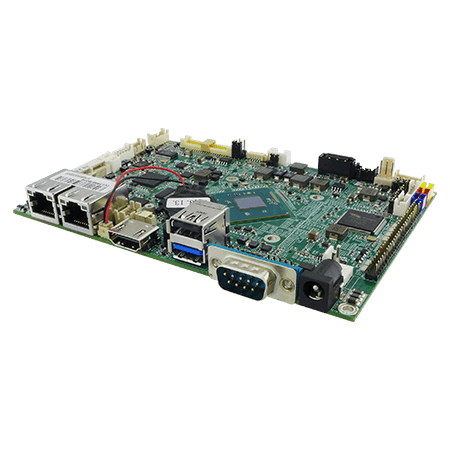

IB32S Intel® Celeron® N2930 x86, 3.5 inch single board computer KEY FEATURES 3.5” Form Factor (146mm x 102mm / 5.7 x 4 inches) Intel® Celeron® Bay Trail-M N2930, Embedded motherboard System memory DDR3L 1600, SO-DIMM Max 8GB Intel® HD Graphics Engine 2 x Giga LAN,one with PoE function 1 xUSB 3.0, 1 x USB 2.0, 1 x RS232/422/485 3.5 inch single board computer Learn more...	IB32 Intel® Celeron® N2930 x86 Embedded motherboard KEY FEATURES 3.5" Form Factor (146 mm x 102 mm),x86 Embedded motherboard Intel® Celeron® N2930 1.83GHz Processor Intel® ATOM SoC Integrated Integrated VGA, Dual-channel 24-bit LVDS, HDMI 1 x DDR3L SO-DIMM 1066 MHz, max. 8GB 2 x Gigabit Ethernet Supports 1 x SATA II, 4 x COM, 1 x USB 3.0, 5 x USB 2.0 12 x GPIO, 1 x 1394b, 1 x Mini PCIe slot Learn more...	IK32 Intel® Core™ i5-7200U single computer board KEY FEATURES 3.5” Form Factor (146mm x 102mm), single computer board Intel® Core™ i5-7200U Processor Intel® SoC Integrated One DDR4-2133 SO-DIMM RAM Integrated Dual Gigabit Ethernet 2 x SATA III, 5 x COM, 2 x USB 3.0, 4 x USB 2.0 1 x M.2 2242 Key B Slot (for SATA III SSD) 1 x M.2 2230 Key E Slot (for PCIe + USB 2.0 Wireless Module) 1 x HDMI Learn more...

IV32 Intel® Core™ i7-3517UE x86 Embedded Board KEY FEATURES 3.5” From Factor (146mm x 102mm) Intel® Celeron® 1037U 1.8GHz Intel® Express Chipset HM76 Integrated VGA, Dual-channel 18/24-bit LVDS, HDMI 1 x DDR3 SO-DIMM 1333/1600 MHz, max. 8GB Integrated Intel@ 82579-LM + WG82574L Ethernet Supports 2 x SATA III, 4 x COM, 3 x USB 3.0, 4 x USB 2.0 12 x GPIO, 1 x 1394b, 1 x Mini PCIe slot Learn more...
