IW32

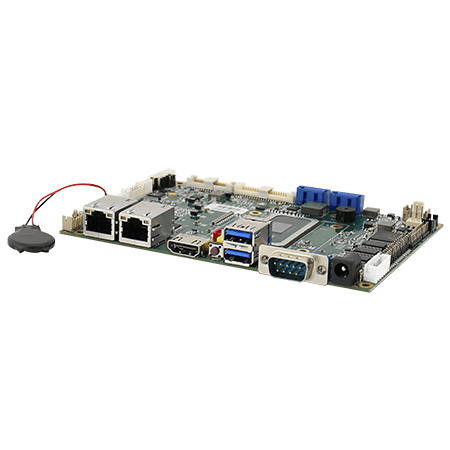

Intel® Core™ i5-8265U x86 Embedded motherboard

KEY FEATURES

• 3.5” Form Factor (146mm x 102mm),x86 Embedded motherboard
• Intel® Core™ i5-8265U Processor
• One DDR4-2400 SO-DIMM RAM
• Intel® Gigabit-LAN Controller I210AT + PHY I219LM
• 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen1.4 x USB 2.0
• 1 x M.2 Key M Slot for M.2 2242 SATA III SSD Optional M.2 2280 NVME SSD
• 1 x M.2 2230 Key E Slot (for Wireless Module)
• 1 x HDMI(Optional)

Download Datasheet

High-Performance CPU Designed for Embedded Systems

Winmate 3.5” form factor SBC offered with Intel® Processors to provide high performance and low power consumption.

Ready for Challenging Environments

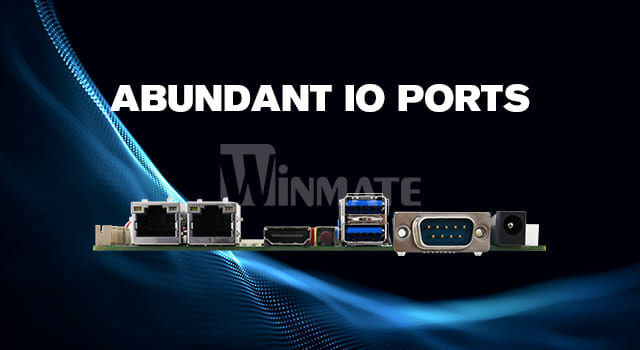

Winmate 3.5” form factor SBCs are built to be easy to install, access, and maintain. The Winmate 3.5” Form Factor SBCs have a wide array of I/O support, all of which are located on the PC's front or topsides.

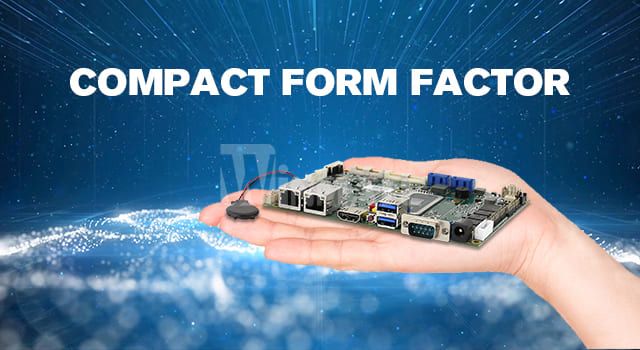

Fully integrated small-sized single-board computer

Space limitation is one of the constraints commonly seen in today’s industrial environment. Winmate 3.5” form factor SBC series provides a palm-sized design to meet the space requirement and comes with adequate basic I/O interfaces for various applications.

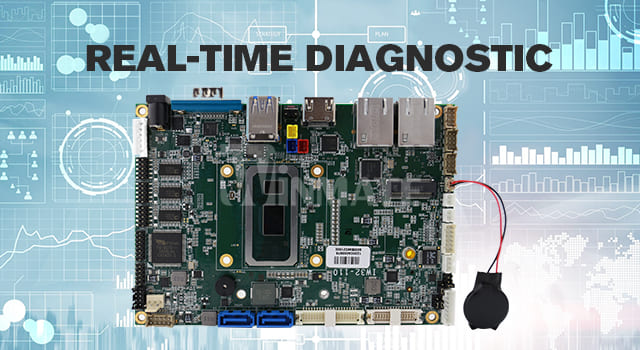

Get Key Equipment Status in Real-Time

With sensing devices connected to the cloud, the equipment's status can be automatically returned to the cloud platform and control site for the real-time monitoring of the operating status.
