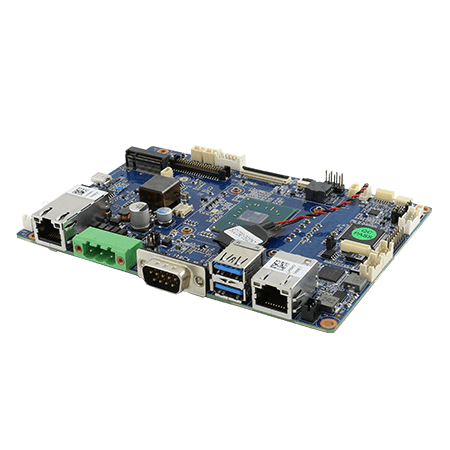

IP32S

x86 sbc ,Intel® Pentium® N4200 single board computer

KEY FEATURES

• x86 sbc, 3.5” Form Factor (146mm x 102mm / 5.7 x 4 inches)
• Intel® Pentium® Apollo Lake N4200 Processor , single board computer x86
• System memory DDR3L 1600 / 1866 MHz, SO-DIMM Max 8GB
• Intel® HD Graphics Engine
• 2 x Giga LAN, one with PoE function
• 2 x USB 3.0, 1 x RS232/422/485, 1 x Micro HDMI (Optional)

Download Datasheet

High-Performance CPU Designed for Embedded Systems

Winmate 3.5” Form Factor SBC offered with Intel® Processors to provide high performance and low power consumption. IP32S is a family of open source Arduino-powered Mini PC compatible with Windows, Android and any Linux Distro.

You can exploit both as embedded systems for DIY-electronics projects and as low power consumption, fanless computers for everyday use.

Ready for Challenging Environments

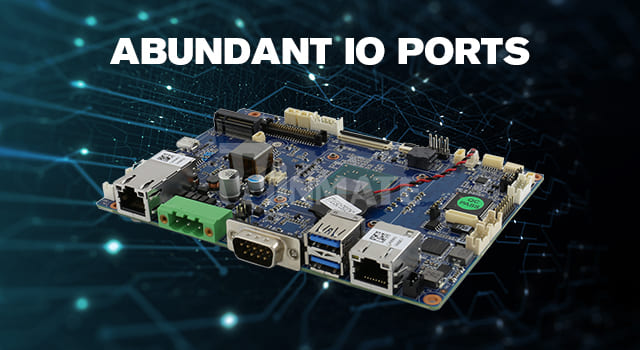

Winmate 3.5” Form Factor SBCs are built to be easy to install, access, and maintain. The Winmate 3.5” Form Factor SBCs have a wide array of I/O support, all of which are located on the PC's front or topsides.

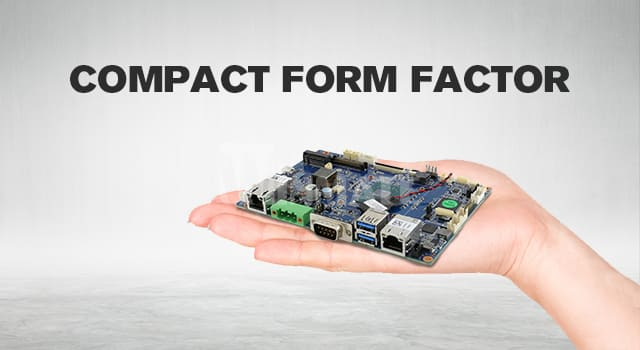

Fully integrated small-sized single-board computer

Space limitation is one of the constraints commonly seen in today’s industrial environment. Winmate 3.5” Form Factor SBC series provides a palm-sized design to meet the space requirement and comes with adequate basic I/O interfaces for various applications.

Get Key Equipment Status in Real-Time

With sensing devices connected to the cloud, the equipment's status can be automatically returned to the cloud platform and control site for the real-time monitoring of the operating status.
