IE32

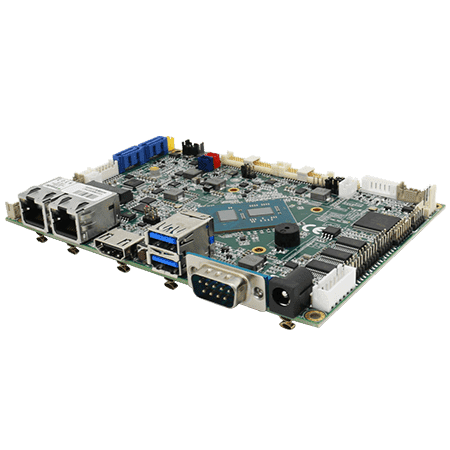

Intel® Celeron® N6210 x86 Embedded motherboard

KEY FEATURES

• 3.5” Form Factor (146 mm x 102 mm)
• 1 x DDR4 SO-DIMM 3200 MHz, max. 16GB
• 2 x Gigabit Ethernet
• Intel® SoC Integrate
• Intel® Celeron® Elkhart Lake N6210 Processor
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0

Download Datasheet

Powered by a high-performance CPU

Winmate 3.5” industrial computer board powered by Intel® Celeron® Elkhart Lake N6210 Processor supports the next generation of IoT solutions, spanning retail, transportation, industrial automation, and many other sectors.

Industrial-grade components for reliable operation

Winmate 3.5” industrial computer board featuring rich I/O capabilities, advanced connectivity, and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations, making it an ideal choice for a wide range of embedded applications.

Fully integrated compact formed industrial computer board

Rich I/O connectivity and expansion capabilities on the IE32 industrial computer board allow connection to numerous peripherals and include 2 x SATA III, 4 x COM, 2 x USB 3.1 Gen 2, 4 x USB 2.0 interfaces. Measuring 102mm by 146mm, the board operates on a 9V~36V wide range power input and extended temperature range of -40 to +85°C.
