V1200 Series

Features and Benefits

Arm Cortex-A53 quad-core 1.6 GHz processor
Slim, compact design with multiple mounting options
Integrated 5G Sub-6GHz NR module and Wi-Fi 6 module with dual SIM
Built-in TPM 2.0 module
Moxa Industrial Linux built-in for long-term Linux support
Isolated power with 24 to 110 VDC power supply range
Complies with all EN 50155 mandatory test items
Compliance with IEC 62443-4-2 Security Level 2 requirements

Introduction

The V1200 computing platform is designed for railway TCMS data-acquisition and train-to-ground applications. The computer comes with dual M12 10/100/1000 Mbps Ethernet ports, built-in 5G and Wi-Fi 6 modules and dual RS-232/422/485 serial ports. The slim, compact design with multiple mounting options reduces installation space and provides flexibility for mounting in various cabinets or onboard locations.

The V1200 comes with Moxa Industrial Linux (MIL) and long-term Linux support and vulnerability patching. A web-based interface is provided for easy configuration of Ethernet and wireless network settings without the need for programming.

The V1200 wireless-enabled models are thoroughly tested in a testing chamber, guaranteeing they meet the EN 50155 mandatory requirements and OT4 operating temperature (-40 to 70°C with cellular and Wi- Fi modules enabled) requirements, making them suitable for wide-temperature applications.

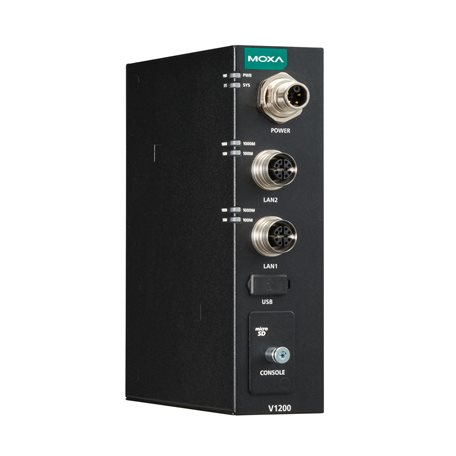

Appearance

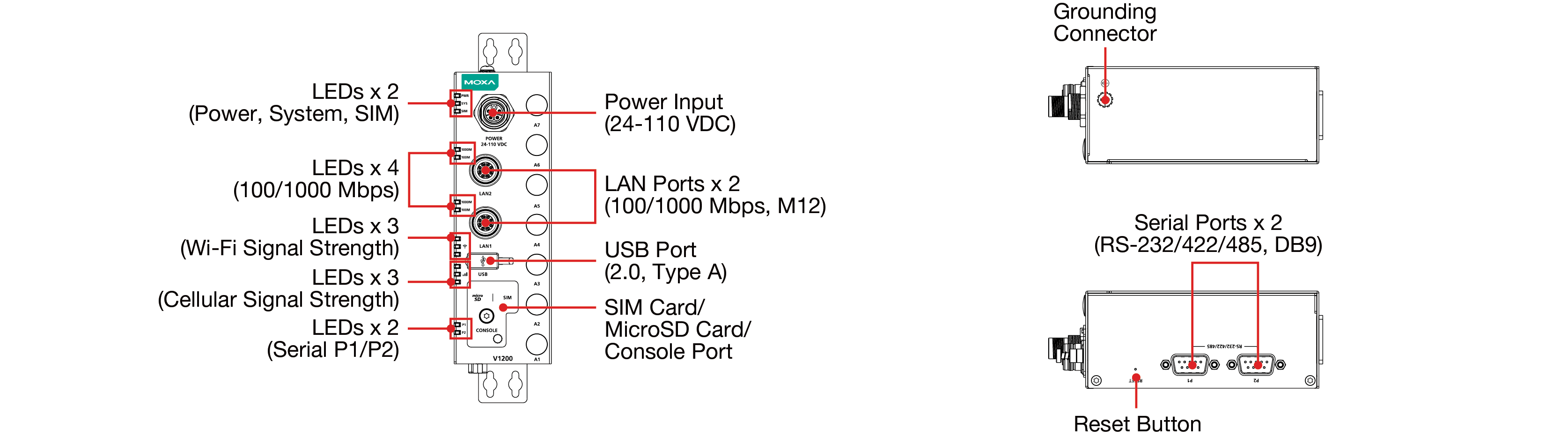

V1202-CT-T Model

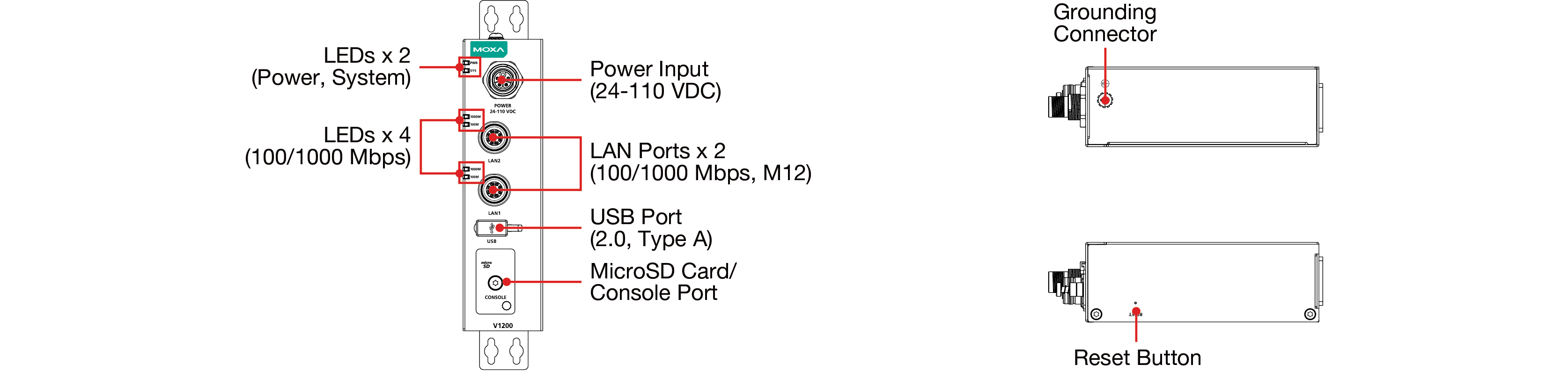

V1222-CT-T Model

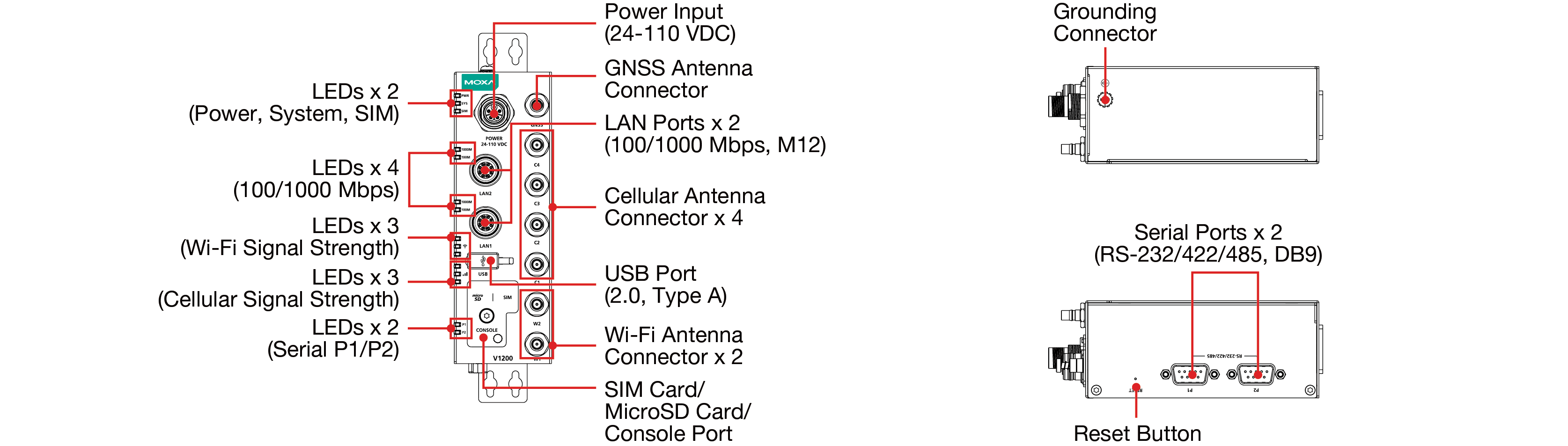

V1222-W-CT-T Model

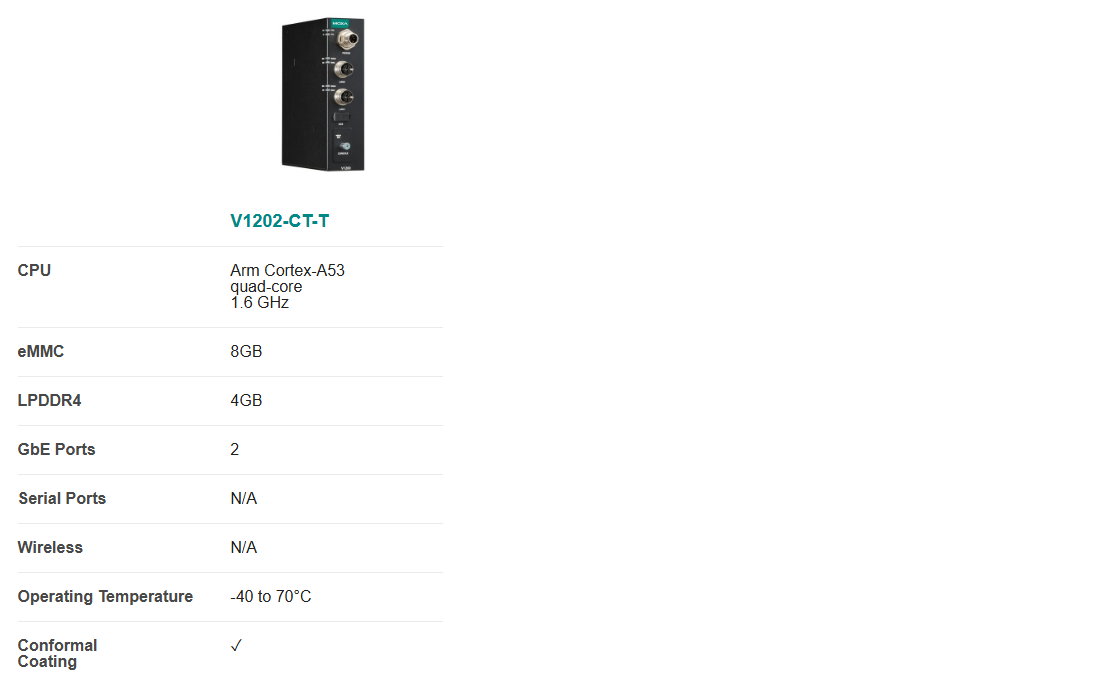

Models
