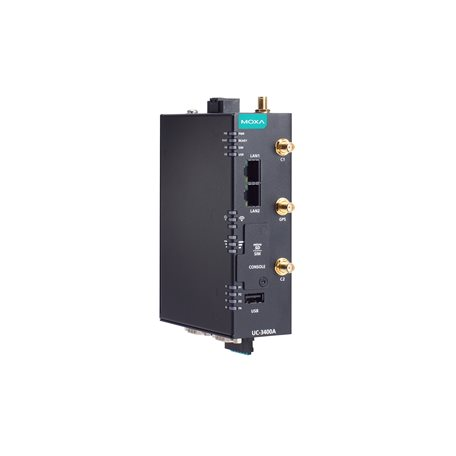

UC-3400A Series

Features and Benefits

Armv8 Cortex-A53 1.4 GHz processor
Integrated 4G LTE Cat. 4 module with dual SIM and AT&T approval
Wi-Fi 6 built-in
2 auto-sensing 10/100/1000 Mbps Ethernet ports
CAN ports with 2-kV isolation protection
Moxa Industrial Linux with 10-year superior long-term support
Compliance with IEC 62443-4-2 Security Level 2 requirements
CE/FCC/UL certifications
-40 to 70°C operating temperature range

Introduction

Moxa’s UC-3400A Series computers can be used as edge gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes a diverse set of models, each supporting different wireless options and protocols. The UC-3400A’s advanced heat-dissipation design makes it suitable for use in temperatures ranging from -40 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize data pre-processing and transmission capabilities of your applications in harsh operating environments.

The UC-3400A is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3400A comes equipped with Moxa Industrial Linux, a high-performance industrial-grade Linux distribution with long-term support that is developed by Moxa.

Applications

Remote Terminal Unit (RTU)
Data acquisition
M2M communication (smart gateway)
Digital signage
Factory automation

In-vehicle monitor/data logger (transportation)
Programmable router
Energy usage optimization
Predictive maintenance
Asset management

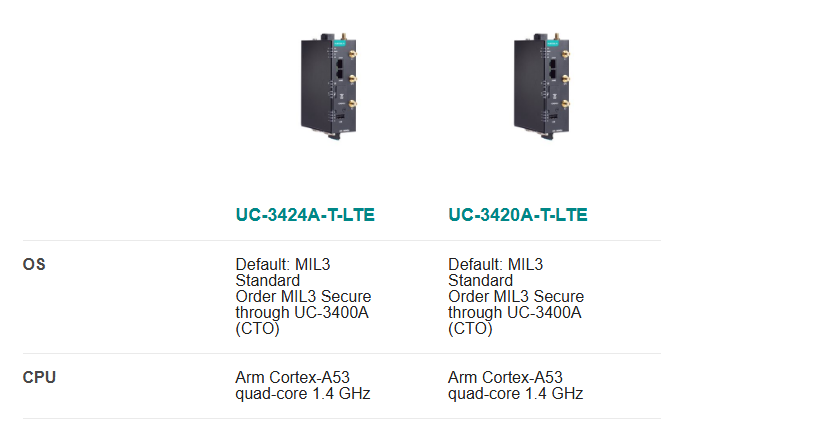

Models

For more information, please contact our support.
