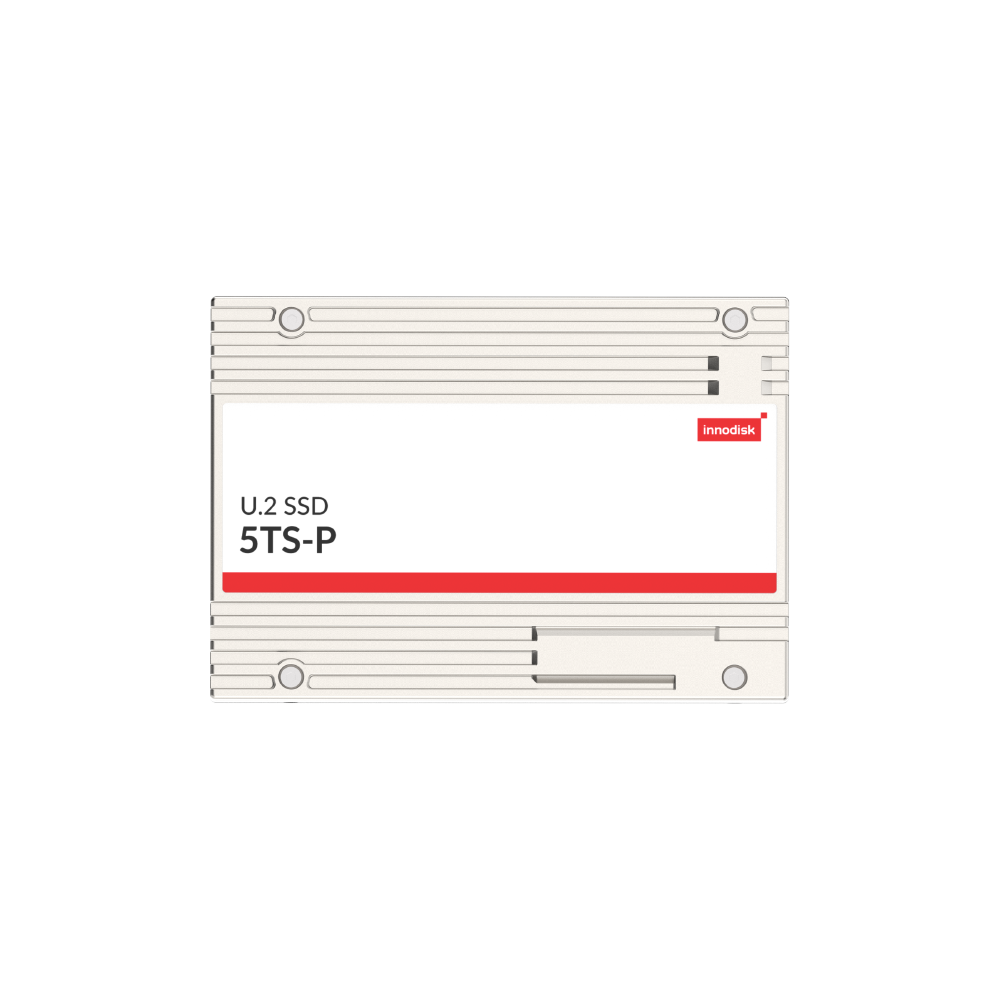

U.2 SSD 5TS-P

U.2

PCIe Gen5 Solution

Features

Up to 14GB/s read and 10GB/s write performance
High storage density up to 7.68TB
1 DWPD endurance with 5-year warranty for long-term reliability
PLP (iCell) technology for power loss protection

BORN FOR SUPERIOR PERFORMANCE

The Innodisk PCIe Gen5 SSD redefines high-performance storage for next-generation data-intensive applications. Featuring a PCIe Gen 5 x4 interface and NVMe 2.0 protocol, this SSD delivers exceptional data transfer speed — up to 14GB/s read and 10GB/s write — making it ideal for demanding environments. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

Engineered for enterprise reliability, the U.2 SSD 5TS-P offers 1 DPWD endurance, advanced security features, and broad compatibility, ensuring robust data durability and seamless system integration.

SPECIFICATIONS

Model Name	U.2 SSD 5TS-P
Flash Type	3D eTLC
Interface	PCIe Gen 5 x4
Form Factor	U.2 SSD
Capacity	1.92TB ~ 7.68TB
Sequential R / W (MB/sec, max.)	14,000 / 10,000
TBW (Max.)	14,000 (Enterprise Workload)
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	25W
Max. Channels	16
External DRAM Buffer	?
Features	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Series	Data Center SSD
Dimension (W x L x H/mm)	69.9 x 100.0 x 15.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	2 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)
1.92TB	DSEU2-1T9IX&#CAH@P
3.84TB	DSEU2-3T8IX&#CAH@P
7.68TB	DSEU2-7T6IX&#CAH@P

Operating temperature based on temperature obtained from S.M.A.R.T.
& : 1 = Standard / 2 = TCG Opal
# : Flash mode (Internal use)
@ : F = Kioxia / H = MicronU.2 5TS-P specifications are subject to change.

For more information, please contact our support.
