U.2 SSD 4TS2-P

U.2

Advanced Storage For Data Center

Features

Up to 7,150 / 6,100 MB/s read and write performance
Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
PLP (iCell) technology for power loss protection

BORN FOR SUPERIOR PERFORMANCE

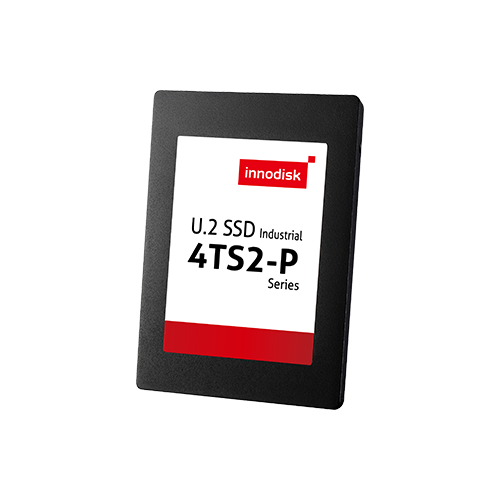

The Innodisk U.2 SSD 4TS2-P is an NVMe SSD in the standard U.2 (SFF-8639) form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash. With ultra-fast speeds, high IOPS, and up to 6.4TB capacity, the U.2 SSD 4TS2-P is ideal for servers and data-intensive applications.

SPECIFICATIONS

Model Name	U.2 SSD 4TS2-P
Flash Type	3D TLC
Interface	PCIe Gen 4 x4
Form Factor	U.2 SSD
Capacity	400GB ~ 6.4TB
Sequential R / W (MB/sec, max.)	7,150 / 6,100
P/E Cycle	3,000
TBW (Max.)	7,437
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	12.6W
Max. Channels	8
External DRAM Buffer	?
Features	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Series	Data Center SSD
Dimension (W x L x H/mm)	69.85 x 100.0 x 6.9
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
400GB	DSEU2-400DP1KCAEF	DSEU2-400DP1KWAEF
800GB	DSEU2-800DP1KCAEF	DSEU2-800DP1KWAEF
1.6TB	DSEU2-1T6DP1KCAEF	DSEU2-1T6DP1KWAEF
3.2TB	DSEU2-3T2DP1KCAEF	DSEU2-3T2DP1KWAEF
6.4TB	DSEU2-6T4DP1KCAEF	DSEU2-6T4DP1KWAEF
