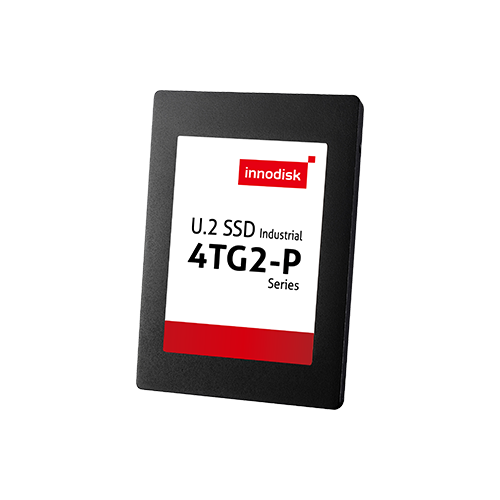

U.2 SSD 4TG2-P

U.2

PCIe Gen4 Solution

Features

• Up to 6,950 / 4,950MB/s read and write performance
• Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
• PLP (iCell) technology for power loss protection

Download Datasheet

Model Name

U.2 SSD 4TG2-P

Flash Type

3D TLC

Interface

PCIe Gen 4 x4

Form Factor

U.2 SSD

Capacity

512GB ~ 16TB

Sequential R / W (MB/sec, max.)

6,950 / 4,950

P/E Cycle

3,000

TBW (Max.)

39,011

Storage Temperature

-40°C ~ 85°C

Max. Power Consumption

13.5W

Max. Channels

8

External DRAM Buffer

?

Features

PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.

Dimension (W x L x H/mm)

69.85 x 100.0 x 6.9

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

3 Years
