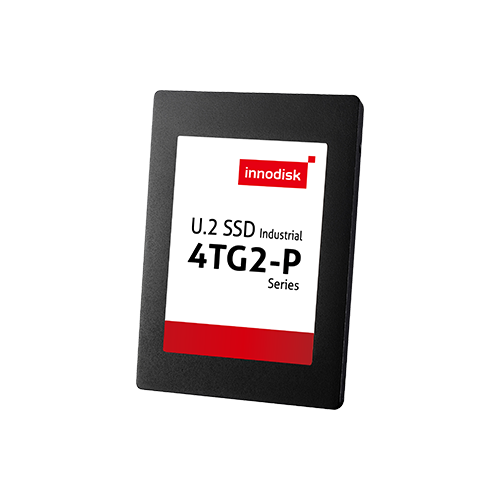

U.2 SSD 4IG2-P

U.2

PCIe Gen4 Solution

Features

Up to 6,950 / 4,950MB/s read and write performance
Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
PLP (iCell) technology for power loss protection

BORN FOR SUPERIOR PERFORMANCE

Innodisk U.2 SSD 4IG2-P is an NVM Express SSD designed as PCIe SFF-8639 module with PCIe interface and 3D TLC NAND Flash. U.2 SSD 4IG2-P supports PCIe Gen 4 x4, and it is compliant with NVMe 1.4 providing excellent performance. Equipped with Error Correction Code (ECC) technology, the U.2 SSD 4IG2-P provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	U.2 SSD 4IG2-P
Flash Type	iSLC (3D TLC)
Interface	PCIe Gen 4 x4
Form Factor	U.2 SSD
Capacity	160GB ~ 1.28TB
Sequential R / W (MB/sec, max.)	6,900 / 4,900
P/E Cycle	100,000
TBW (Max.)	92,008
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	12.1W
Max. Channels	8
External DRAM Buffer	?
Features	AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	69.85 x 100.0 x 6.9
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
160GB	DHEU2-A60DP1KCAEL	DHEU2-A60DP1KWAEL
320GB	DHEU2-D2GDP1KCAEL	DHEU2-D2GDP1KWAEL
640GB	DHEU2-F4GDP1KCAEL	DHEU2-F4GDP1KWAEL
1.28TB	DHEU2-1T2DP1KCAEL	DHEU2-1T2DP1KWAEL

For TCG Opal function, the PN Code 10th ~ 12th will be DP2.

For more information, please contact our support.
